989018 - Gravely Pro-Master Zero-Turn Mower, 19hp Kohler, Gear (SN: 000101 & Above) FRONT AND REAR WHEELS Parts Diagram

Pro-Master Zero-Turn Mower, 19hp Kohler, Gear

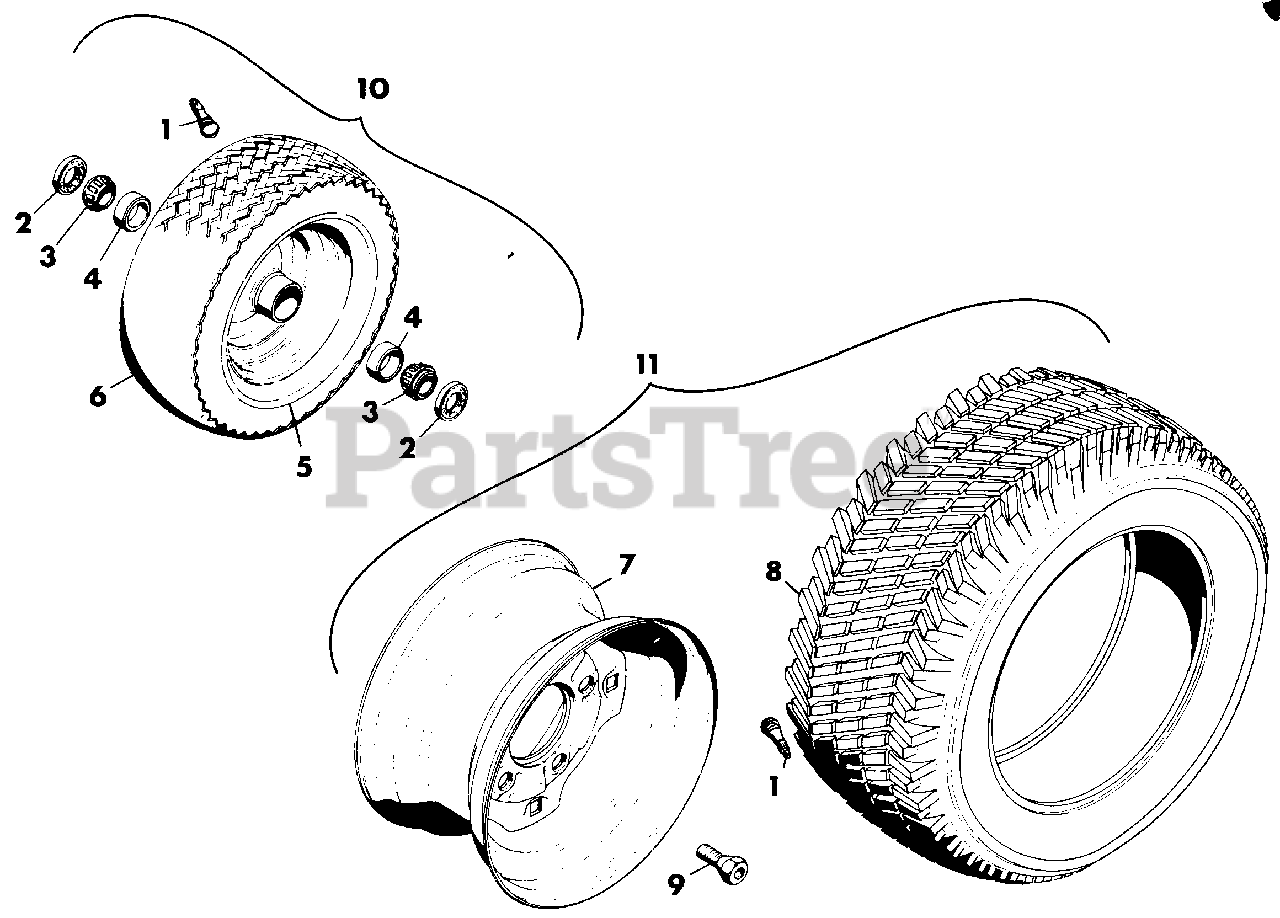

FRONT AND REAR WHEELS Parts Diagram

  • Title

1

Gravely 011191

VALVE STEM ASS'Y
(Superseded to 07520000)

$2.99

$

In Stock, only 1 left!

0

2

Gravely 034959

SEAL,WHEEL
(Superseded to 20615200)

$

$

Not available

3

Gravely 018446

BRG-CONE .750X.61
(Superseded to 05404500)

$29.99

$

In Stock, Qty 14

0

4

Gravely 018445

BRG-CUP 1.781X.475
(Superseded to 05404400)

$11.99

$

In Stock, Qty 17

0

5

Gravely 035148

RIM,REAR
(Superseded to 20620000)

$

$

Not available

6

Gravely 031280

T/WHL ASSY 16X6.5-8
(Superseded to 07119600)

$221.99

$

Usually ships in 4-12 days

0

7

Gravely 034486

RIM,O.F.C. FRONT
(Superseded to 07129000)

$

$

Not available

8

Gravely 034958

TIRE 20X10.00-10
(Superseded to 07134600)

$

$

Not available

9

Gravely 034597

BLT-LUG .50-20X1.38 YWZC
(Superseded to 07000143)

$3.99

$

In Stock, Qty 20+

0

10

Gravely 034962

WHL,PRO-MASTER 50 REAR
(Superseded to 20615300)

$

$

Not available

11

Gravely 034957

WHL 20X10.00-10 FRONT
(Superseded to 07129300)

$

$

Not available
