989024 (PM 50) - Gravely Pro-Master Zero-Turn Mower, 16hp, 4 Speed (SN: 000101 & Above) FUEL AND EXHAUST SYSTEM Parts Diagram

Pro-Master Zero-Turn Mower, 16hp, 4 Speed

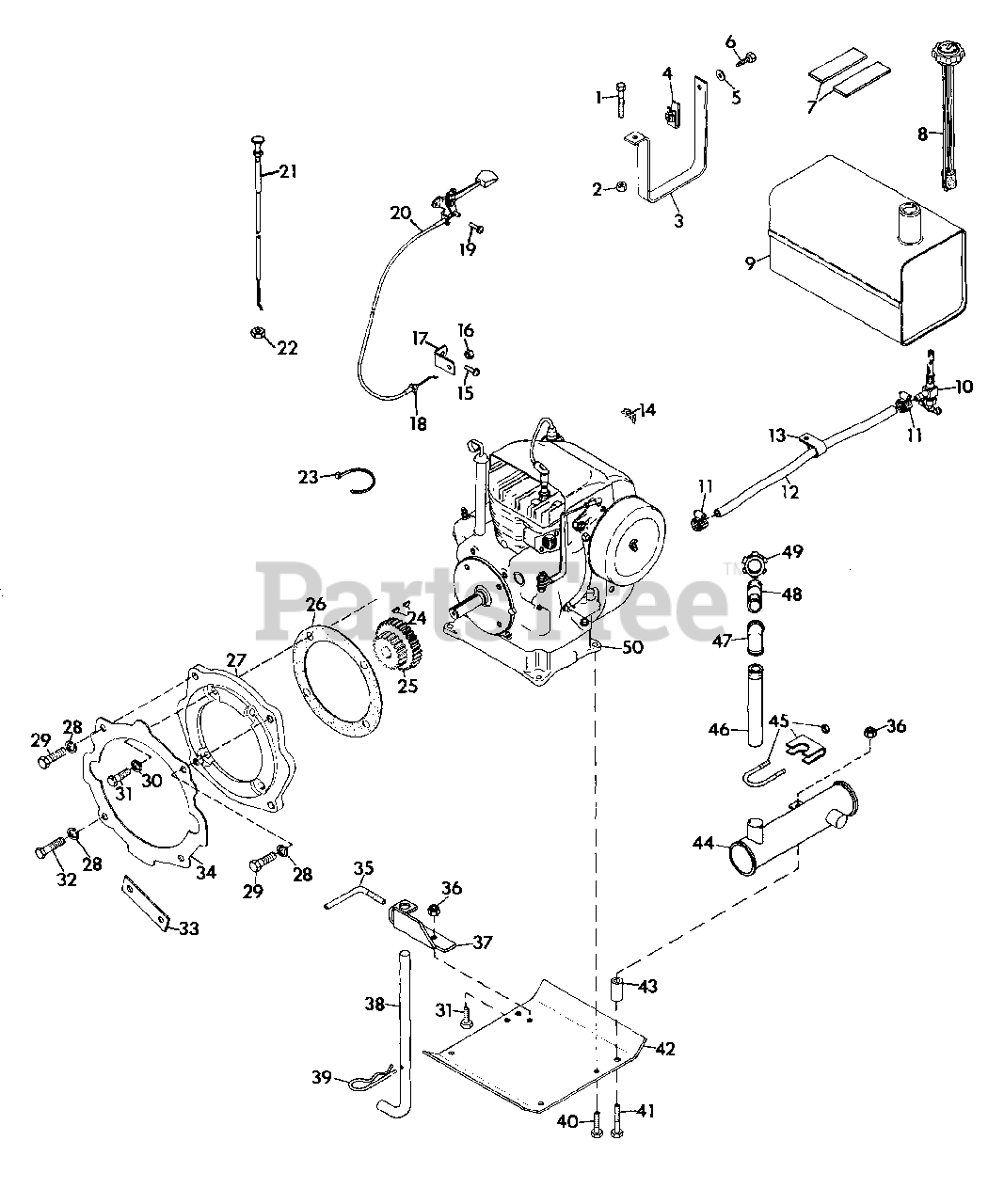

FUEL AND EXHAUST SYSTEM Parts Diagram

  • Title

1

Gravely 180081

BOLT, HEX 5/16-18X1.25
(Superseded to 05901803)

$2.99

$

In Stock, Qty 6

0

2

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 034524

STRAP, GAS TANK
(Superseded to 08908600)

$

$

Not available

4

Gravely 023665

NUT, RETAINER
(Superseded to 06521500)

$

$

Not available

5

Gravely 120393

WASHER, FLAT .343X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 031884

PAD, GAS TANK
(Superseded to 03301900)

$

$

Not available

8

Gravely 034555

GAUGE, FUEL
(Superseded to 08909800)

$

$

Not available

9

Gravely 034553

TANK, FUEL
(Superseded to 08909700)

$

$

Not available

10

Gravely 007354

VALVE AND STRAINER
(Superseded to 08860200)

$

$

Not available

11

Gravely 032045

CLAMP, HOSE
(Superseded to 06924300)

$7.99

$

Usually ships in 4-12 days

0

12

Gravely 021134

LINE, FUEL
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 035313

CLAMP, NYLON
(Superseded to 03334000)

$

$

Not available

14

Gravely 007331

CLIP, SPEED
(Superseded to 06931500)

$

$

Not available

15

Gravely 160515

SCREW, MACH. 1/4-20X.50
(Superseded to 06110900)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 120375

NUT, HEX 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 8

0

17

Gravely 018522

BRACKET
(Superseded to 20259500)

$

$

Not available

18

Gravely 018521

ADAPTOR, CONDUIT
(Superseded to 06921000)

$

$

Not available

19

Gravely 167257

SCREW, TAPPING 1/4-20X.50
(Superseded to 07410400)

$2.49

$

In Stock, Qty 5

0

20

Gravely 034903

LEVER, CONTROL
(Superseded to 20613700)

$

$

Not available

21

Gravely 010696

CONTROL, CHOKE
(Superseded to 20046600)

$68.99

$

In Stock, only 1 left!

0

22

Gravely 124925

NUT, JAM 3/8-24 HEX
(Superseded to 06500739)

$2.49

$

In Stock, Qty 5

0

23

Gravely 010629

TIE, CABLE
(Superseded to 07517300)

$

$

Not available

24

Gravely 124546

KEY, WOODRUFF 5/32X.625
(Superseded to 06608500)

$2.49

$

Usually ships in 4-12 days

0

25

Gravely 017838

GEAR, 10/12 DP 21/30 TEETH
(Superseded to 08505300)

$

$

Not available

26

Gravely 010732

GASKET, ENGINE TO ADAPTOR
(Superseded to 08602700)

$10.99

$

Usually ships in 4-12 days

0

27

Gravely 010731

ADAPTOR, ENGINE
(Superseded to 09022100)

$

$

Not available

28

Gravely 131100

WASHER, LOCK 7/16
(Superseded to 06310700)

$3.49

$

Usually ships in 4-12 days

0

29

Gravely 180149

BOLT, HEX 7/16-14X1.50
(Superseded to 05901633)

$3.49

$

In Stock, Qty 11

0

30

Gravely 131099

WASHER, LOCK 3/8
(Superseded to 06300120)

$4.99

$

In Stock, Qty 17

0

31

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 180147

BOLT, HEX 7/16-14X1.25
(Superseded to 05964800)

$2.99

$

Usually ships in 4-12 days

0

33

Gravely 038808

STRAP
(Superseded to 20652700)

$

$

Not available

34

Gravely 010635

GASKET, CHASSIS TO ADAPTOR
(Superseded to 08602800)

$16.99

$

In Stock, only 1 left!

0

35

Gravely 013457

HANDLE, ADJUSTING
(Superseded to 08597900)

$53.99

$

In Stock, only 1 left!

0

36

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

37

Gravely 034531

STAND, SUPPORT
(Superseded to 08909100)

$

$

Not available

38

Gravely 034062

STAND, KICK
(Superseded to 08536500)

$

$

Not available

39

Gravely 010405

PIN, HAIR
(Superseded to 06714000)

$3.49

$

In Stock, Qty 6

0

40

Gravely 180126

BOLT, HEX 3/8-16X1.50
(Superseded to 05901928)

$1.99

$

In Stock, Qty 10

0

41

Gravely 180128

BOLT, HEX 3/8-16X1.75
(Superseded to 05901809)

$1.99

$

In Stock, only 3 left!

0

42

Gravely 034551

PLATE, SKID
(Superseded to 08909500)

$

$

Not available

43

Gravely 011936

BUSHING, .407X.625X.812
(Superseded to 08905500)

$14.99

$

In Stock, only 2 left!

0

44

Gravely 034592

MUFFLER, KOHLER 16-HP
(Superseded to 20603900)

$

$

Not available

45

Gravely 021819

CLAMP, MUFFLER
(Superseded to 06922300)

$

$

Not available

46

Gravely 034595

NIPPLE, 1.25 PIPE 7.8 LG.
(Superseded to 08910400)

$

$

Not available

47

Gravely 127824

ELBOW, 1.25 PIPE
(Superseded to 07024500)

$

$

Not available

48

Gravely 219696

NIPPLE, 1.25 PIPE
(Superseded to 07025300)

$

$

Not available

49

Gravely 034594

NUT, CONDUIT 1.25" PIPE
(Superseded to 07018900)

$

$

Not available

50

Gravely 034587

ENGINE, 16-HP KOHLER

$

$

Not available
