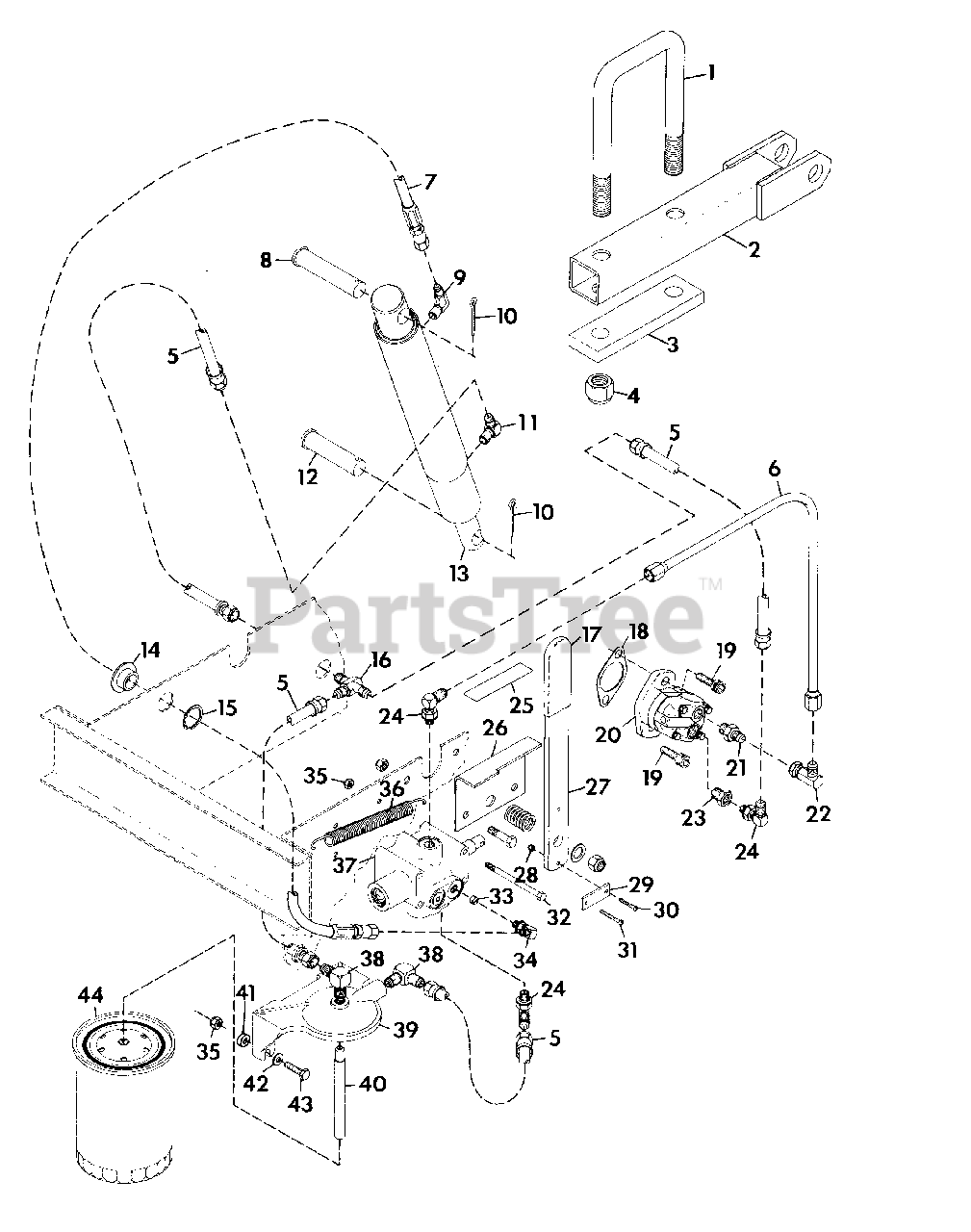

989027 - Gravely Pro-Master Zero-Turn Mower, 19hp Kohler, Gear (SN: 000101 & Above) HYDRAULIC SYSTEM Parts Diagram

Pro-Master Zero-Turn Mower, 19hp Kohler, Gear

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Gravely 035516

BLT,U
(Superseded to 09027700)

$

$

Not available

2

Gravely 038758

ARM,LIFT
(Superseded to 08929000)

$

$

Not available

3

Gravely 035632

PLT,AXLE
(Superseded to 08922600)

$

$

Not available

4

Gravely 272739

NUT,LK .625-188 HEX W/INSR
(Superseded to 06528000)

$

$

Not available

5

Gravely 038210

HOSE,HYDRAULIC
(Superseded to 08927700)

$

$

Not available

6

Gravely 035552

LINE,HYD PUMP TO VALVE
(Superseded to 08921300)

$

$

Not available

7

Gravely 035549

HOSE,HYDRAULIC
(Superseded to 08921200)

$

$

Not available

8

Gravely 035525

PIN-CLEV .618X3.00 PL HDND
(Superseded to 06810600)

$

$

Not available

9

Gravely 018832

ADPT,P-H #2103-4-4
(Superseded to 08901300)

$

$

Not available

10

Gravely 120123

PIN-CTR .12X1.25 EXTPRSQCT YZ
(Superseded to 06700212)

$1.49

$

In Stock, Qty 11

0

11

Gravely 035645

ADPT-HYD .38X.56
(Superseded to 07021900)

$

$

Not available

12

Gravely 035524

PIN-CLEV .618X2.50 PL HDND
(Superseded to 06810400)

$

$

Not available

13

Gravely 035453

CYL,HYDRAULIC
(Superseded to 08916251)

$

$

Not available

14

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.99

$

In Stock, Qty 20+

0

15

Gravely 020273

RG-RTNG-EXT 1.310X.050
(Superseded to 05717300)

$

$

Not available

16

Gravely 021799

ADPT-TEE .56-18
(Superseded to 07021500)

$33.99

$

Usually ships in 4-12 days

0

17

Gravely 027158

GRIP,HANDLE
(Superseded to 07522100)

$

$

Not available

18

Gravely 018422

GSKT,COVER PLATE
(Superseded to 08702700)

$16.99

$

In Stock, only 1 left!

0

19

Gravely 426370

SCR-CAP .38-16 HEX S/HD
(Superseded to 05933300)

$

$

Not available

20

Gravely 018813

PUMP,HYDRAULIC
(Superseded to 08900900)

$

$

Not available

21

Gravely 023206

FTG-ADPTR (0503-8-6)
(Superseded to 07021400)

$28.99

$

Usually ships in 4-12 days

0

22

Gravely 018818

ADPT 3903-6-6
(Superseded to 08901000)

$22.99

$

Usually ships in 4-12 days

0

23

Gravely 035510

BSHG-PIPE .875-14 TO .562-18
(Superseded to 07015000)

$

$

Not available

24

Gravely 018828

FTG, 90 9/16 MOR X 9/16 MJIC
(Superseded to 00313270)

$10.99

$

Usually ships in 4-12 days

0

25

Gravely 035654

DECAL,HYD LIFT
(Superseded to 05209500)

$

$

Not available

26

Gravely 035606

BRKT,LIFT
(Superseded to 08921500)

$

$

Not available

27

Gravely 035509

LVR,LIFT
(Superseded to 08919300)

$

$

Not available

28

Gravely 190254

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 035512

STRAP,VALVE
(Superseded to 08919500)

$

$

Not available

30

Gravely 120910

SCR-MCH 10-24X.75 RDHD
(Superseded to 06112500)

$

$

Not available

31

Gravely 132848

SCR-MCH 10-24X1.00 RDHD
(Superseded to 06112700)

$

$

Not available

32

Gravely 180050

BLT-HEX .25-20X2.75 GR5 YWZC
(Superseded to 05969900)

$

$

Not available

33

Gravely 023485

PLT,FLOW RESTRICTION
(Superseded to 08904100)

$

$

Not available

34

Gravely 018826

ADPT 2503-4-4
(Superseded to 08800700)

$26.99

$

Usually ships in 4-12 days

0

35

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.99

$

In Stock, Qty 12

0

36

Gravely 015255

SG-TENS .091X.500X5.500
(Superseded to 08327500)

$

$

Not available

37

Gravely 035511

VLV,CONTROL
(Superseded to 20624900)

$

$

Not available

38

Gravely 040723

ADPT 2503-4-6 OR 6801-6-4
(Superseded to 08936400)

$

$

Not available

39

Gravely 040259

BRKT,OIL FILTER
(Superseded to 21252800)

$

$

Not available

40

Gravely 040260

TUBE,0IL PICKUP
(Superseded to 08934500)

$

$

Not available

41

Gravely 034383

BUSH.,S.391X1.00X.250 ST
(Superseded to 08905800)

$

$

Not available

42

Gravely 120386

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.99

$

In Stock, Qty 20+

0

43

Gravely 180024

BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$2.99

$

In Stock, only 2 left!

0

44

Gravely 040172

FILTER,SPIN-ON
(Superseded to 08933300)

$

$

Not available
