989029 (PM 50) - Gravely Pro-Master Zero-Turn Mower, 16hp, 4 Speed (SN: 000101 & Above) TRANSMISSION FRAME Parts Diagram

Pro-Master Zero-Turn Mower, 16hp, 4 Speed

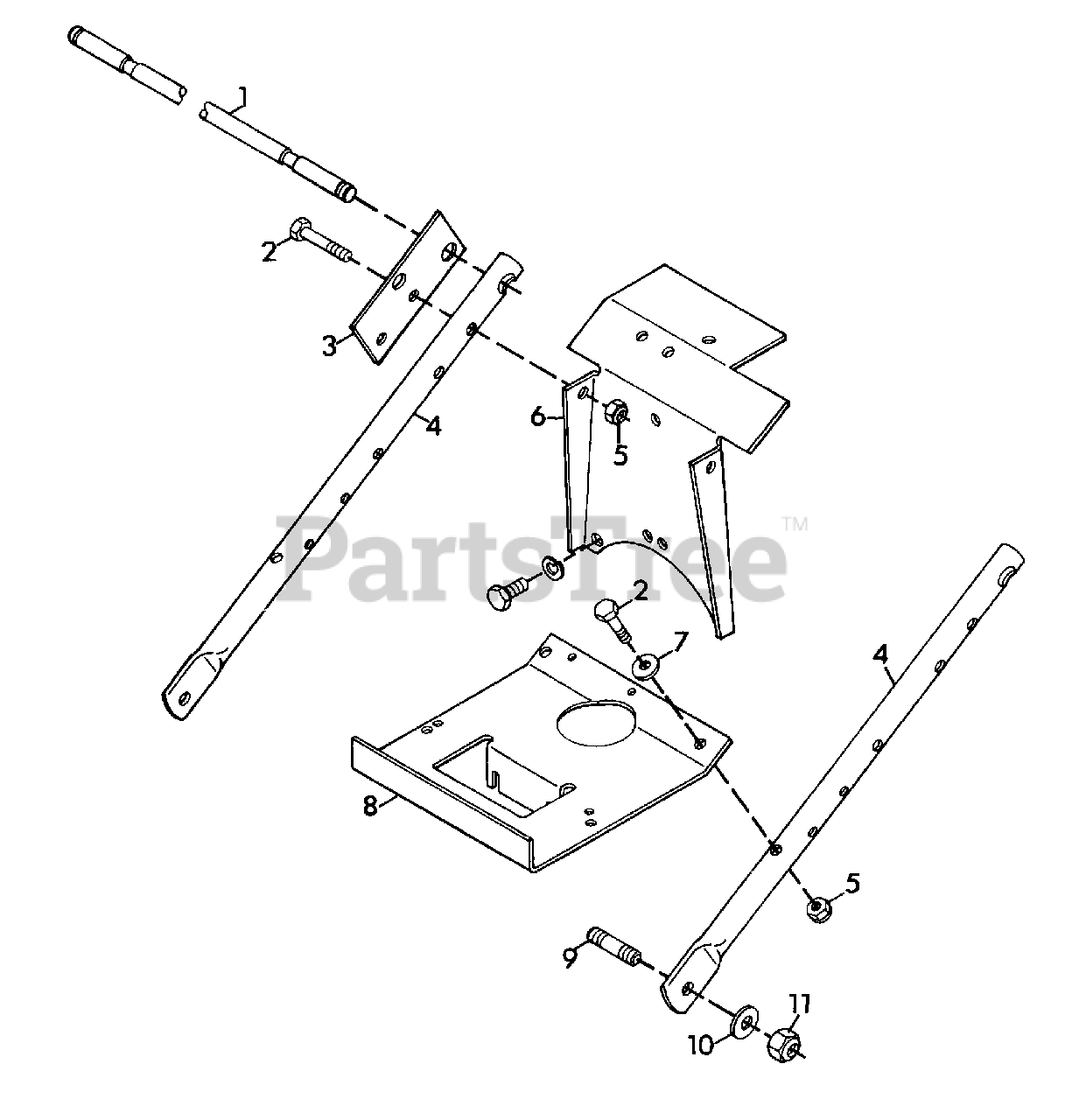

TRANSMISSION FRAME Parts Diagram

  • Title

1

Gravely 034461

SHAFT, CROSS
(Superseded to 08906500)

$

$

Not available

2

Gravely 180132

BOLT, HEX 3/8-16X2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

3

Gravely 040273

BRACKET, INTERLOCK
(Superseded to 08965800)

$

$

Not available

4

Gravely 039616

TUBE, SUPPORT
(Superseded to 08931400)

$

$

Not available

5

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

6

Gravely 040274

SHIELD, HEAT
(Superseded to 08934900)

$

$

Not available

7

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 037704

BOX, BATTERY
(Superseded to 08925300)

$

$

Not available

9

Gravely 040275

STUD
(Superseded to 07017000)

$

$

Not available

10

Gravely 120396

WASHER, FLAT .531X1.062X.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0
