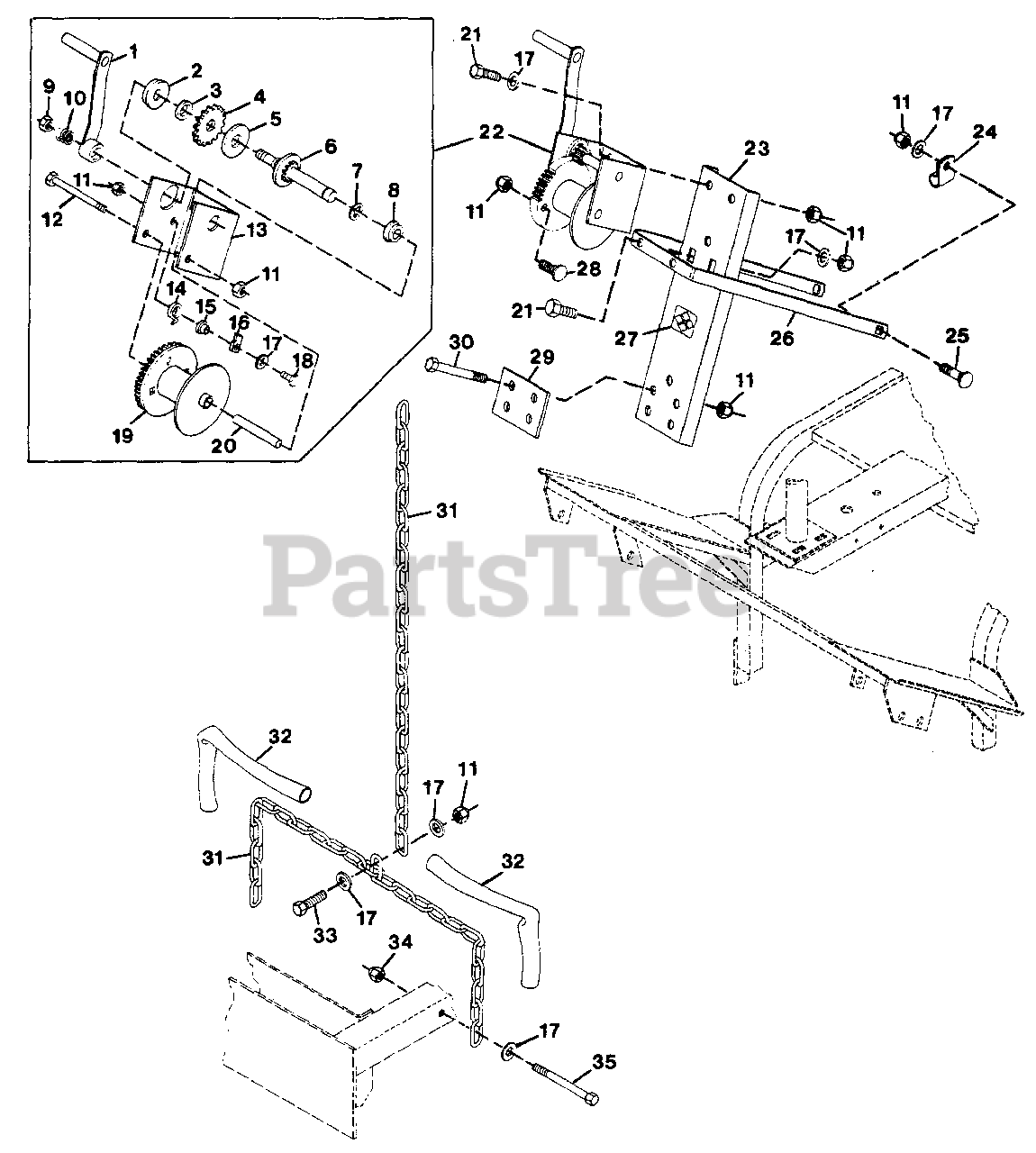

989037 - Gravely Pro-Master Zero-Turn Mower, 18hp Kohler, Gear (SN: 000101 & Above) MANUAL LIFT Parts Diagram

Pro-Master Zero-Turn Mower, 18hp Kohler, Gear

MANUAL LIFT Parts Diagram

  • Title

1

Gravely 040856

Handle, Winch
(Superseded to 20680900)

$20.99

$

Usually ships in 4-12 days

0

2

Gravely 040861

Bushing, Shaft
(Superseded to 20681400)

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 040860

Washer, Pressure
(Superseded to 20681300)

$

$

Not available

4

Gravely 040859

Wheel, Ratchet
(Superseded to 20681200)

$

$

Not available

5

Gravely 040858

Plate, Pressure
(Superseded to 20681100)

$5.99

$

Usually ships in 4-12 days

0

6

Gravely 040584

Shaft, Drive

$

$

Not available

7

Gravely 021396

E-Ring, .625 Shaft
(Superseded to 05708300)

$0.99

$

In Stock, only 4 left!

0

8

Gravely 040853

Bushing, Shaft
(Superseded to 20680600)

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 040857

Nut, Handle
(Superseded to 20681000)

$3.49

$

Usually ships in 4-12 days

0

10

Gravely 040855

Spring, Handle
(Superseded to 20680800)

$

$

Not available

11

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

12

Gravely 189295

Bolt, Hex 3/8-16x4.50
(Superseded to 05970400)

$4.99

$

Usually ships in 4-12 days

0

13

Gravely 040852

Base, Winch

$

$

Not available

14

Gravely 040866

Spring, Ratchet
(Superseded to 20681900)

$

$

Not available

15

Gravely 040865

Spacer, Ratchet
(Superseded to 20681800)

$

$

Not available

16

Gravely 040864

Pawl, Ratchet
(Superseded to 20681700)

$

$

Not available

17

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 040863

Bolt, Ratchet

$

$

Not available

19

Gravely 040862

Reel, Winch
(Superseded to 20681500)

$

$

Not available

20

Gravely 040867

Spacer, Tubing

$

$

Not available

21

Gravely 180122

Bolt, Hex 3/8-16x1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 038759

Winch
(Superseded to 08929153)

$

$

Not available

23

Gravely 038765

Channel, Winch Lift
(Superseded to 08929400)

$

$

Not available

24

Gravely 041915

Clamp, Nylon
(Superseded to 06918000)

$

$

Not available

25

Gravely 126402

Bolt, 3/8-16x1.25 Rd Hd Sq Nk
(Superseded to 06200415)

$2.49

$

In Stock, Qty 20+

0

26

Gravely 042174

Brace
(Superseded to 08940753)

$

$

Not available

27

Gravely 010697

Decal, Commercial Front
(Superseded to 05216500)

$

$

Not available

28

Gravely 126390

Bolt, 3/8-16x.875 Rd Hd Sq Nk
(Superseded to 06215800)

$3.99

$

Usually ships in 4-12 days

0

29

Gravely 038766

Plate, Channel Clamp
(Superseded to 08929500)

$

$

Not available

30

Gravely 180134

Bolt, Hex 3/8-16x2.5
(Superseded to 05901812)

$3.99

$

In Stock, Qty 20+

0

31

Gravely 038767

Chain, Mower Lift
(Superseded to 09031700)

$

$

Not available

32

Gravely 038768

Tubing
(Superseded to 07524900)

$

$

Not available

33

Gravely 180123

Bolt, Hex 3/8-16x1.125

$

$

Not available

34

Gravely 190139

Nut, Lock 5/16-24
(Superseded to 06526500)

$1.99

$

Usually ships in 4-12 days

0

35

Gravely 181623

Bolt, Hex 5/16-24x2.75
(Superseded to 05937200)

$3.49

$

Usually ships in 4-12 days

0
