989040 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 35hp Yanmar (SN: 000101 & Above) COOLING SYSTEM Parts Diagram

Pro-Master Zero-Turn Mower, 35hp Yanmar

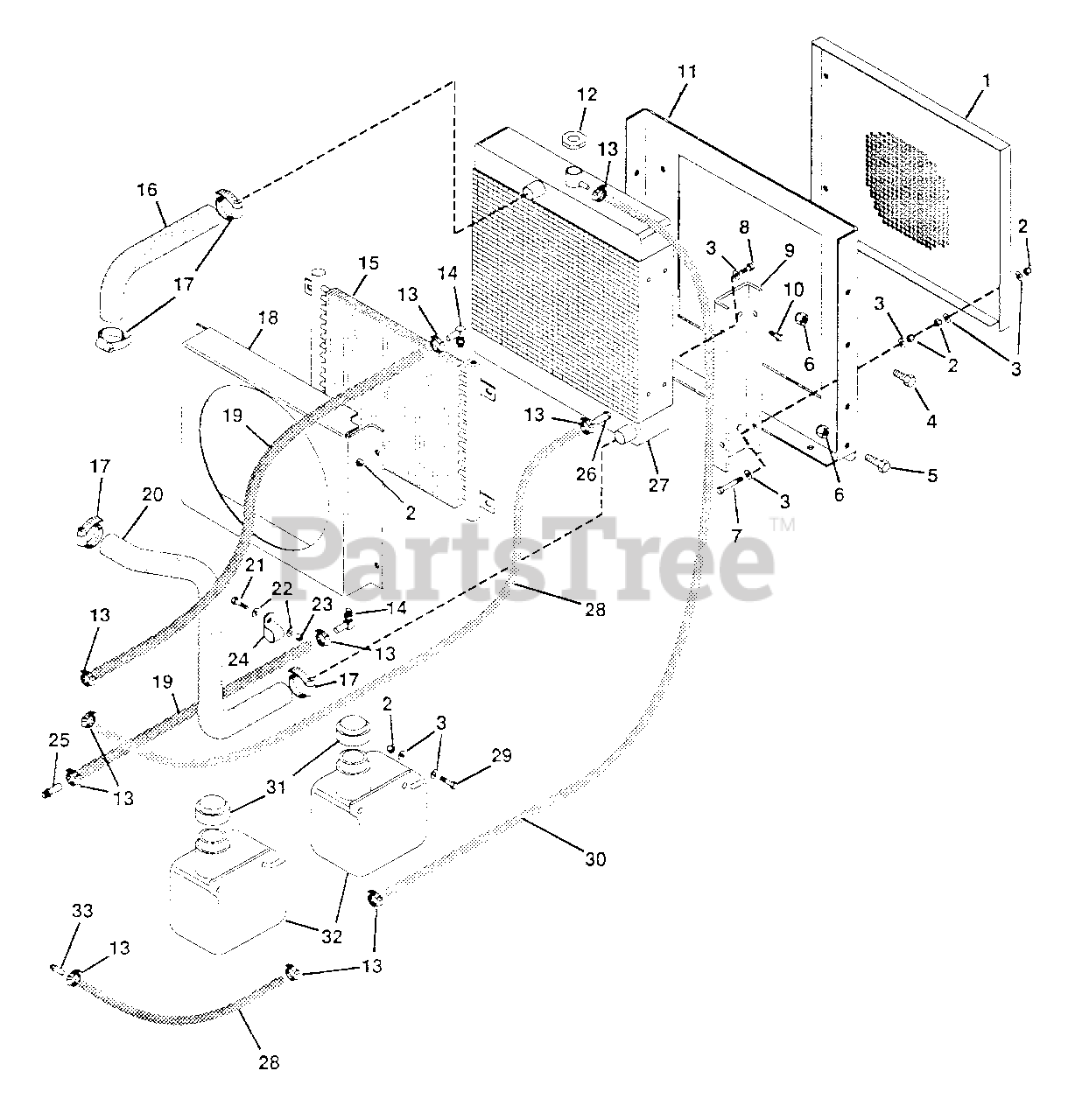

COOLING SYSTEM Parts Diagram

  • Title

1

Gravely 044520

Cover, Air
(Superseded to 09080800)

$25.99

$

Usually ships in 4-12 days

0

2

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

3

Gravely 120393

Washer, Flat .344x.688x.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

4

Gravely 180173

Bolt, Hex 1/2-13x1.00
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

5

Gravely 180177

Bolt, Hex 1/2-13x1.50
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

6

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 047479

Bolt, Hex 5/16-18x1.75
(Superseded to 05970900)

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 180077

Bolt, Hex 5/16-18x.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

9

Gravely 044497

Bracket, Radiator
(Superseded to 08951000)

$

$

Not available

10

Gravely 180073

Bolt, Hex 5/16-18x.50
(Superseded to 05901904)

$1.49

$

In Stock, Qty 15

0

11

Gravely 045212

Mount, Radiator
(Superseded to 08967000)

$

$

Not available

12

Gravely 046291

Cap, Radiator
(Superseded to 08977200)

$

$

Not available

13

Gravely 032045

Clamp, Hose
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

14

Gravely 045144

Adapter, #4601-6-6
(Superseded to 07019700)

$6.99

$

Usually ships in 4-12 days

0

15

Gravely 044493

Cooler, Air
(Superseded to 20809500)

$

$

Not available

16

Gravely 046328

Hose, Upper Radiator
(Superseded to 08993100)

$

$

Not available

17

Gravely 046365

Clamp, Hose
(Superseded to 06922200)

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 046442

Cover, Fan
(Superseded to 09063500)

$74.99

$

Usually ships in 4-12 days

0

19

Gravely 035636

Hydraulic Hose,
(Superseded to 00921600)

$11.99

$

Usually ships in 4-12 days

0

20

Gravely 046329

Hose, Lower Radiator
(Superseded to 08958500)

$

$

Not available

21

Gravely 180122

Bolt, Hex 3/8-16x1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

24

Gravely 035313

Clamp, Nylon
(Superseded to 03334000)

$

$

Not available

25

Gravely 045227

Adapter, #4604-6-6
(Superseded to 07019600)

$

$

Not available

26

Gravely 047391

Adapter
(Superseded to 20862000)

$

$

Not available

27

Gravely 045029

Radiator, Flat Plate
(Superseded to 20816000)

$

$

Not available

28

Gravely 021134

Fuel Line .5 OD x .25 ID,
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 180079

Bolt, Hex 5/16-18x1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

30

Gravely 048544

Hose 5/16 ID,
(Superseded to 00922600)

$0.99

$

Usually ships in 4-12 days

0

31

Gravely 045243

Cap, 1-5/8 Vented
(Superseded to 08967800)

$

$

Not available

32

Gravely 044385

Tank, Plastic 1.5 Qt.
(Superseded to 09032400)

$

$

Not available

33

Gravely 022145

Connector, Hose
(Superseded to 08903600)

$

$

Not available

Gravely 033926

Decal, Danger Hand
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0
