989045 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 35hp Yanmar (SN: 000101 & Above) POWER STEERING Parts Diagram

Pro-Master Zero-Turn Mower, 35hp Yanmar

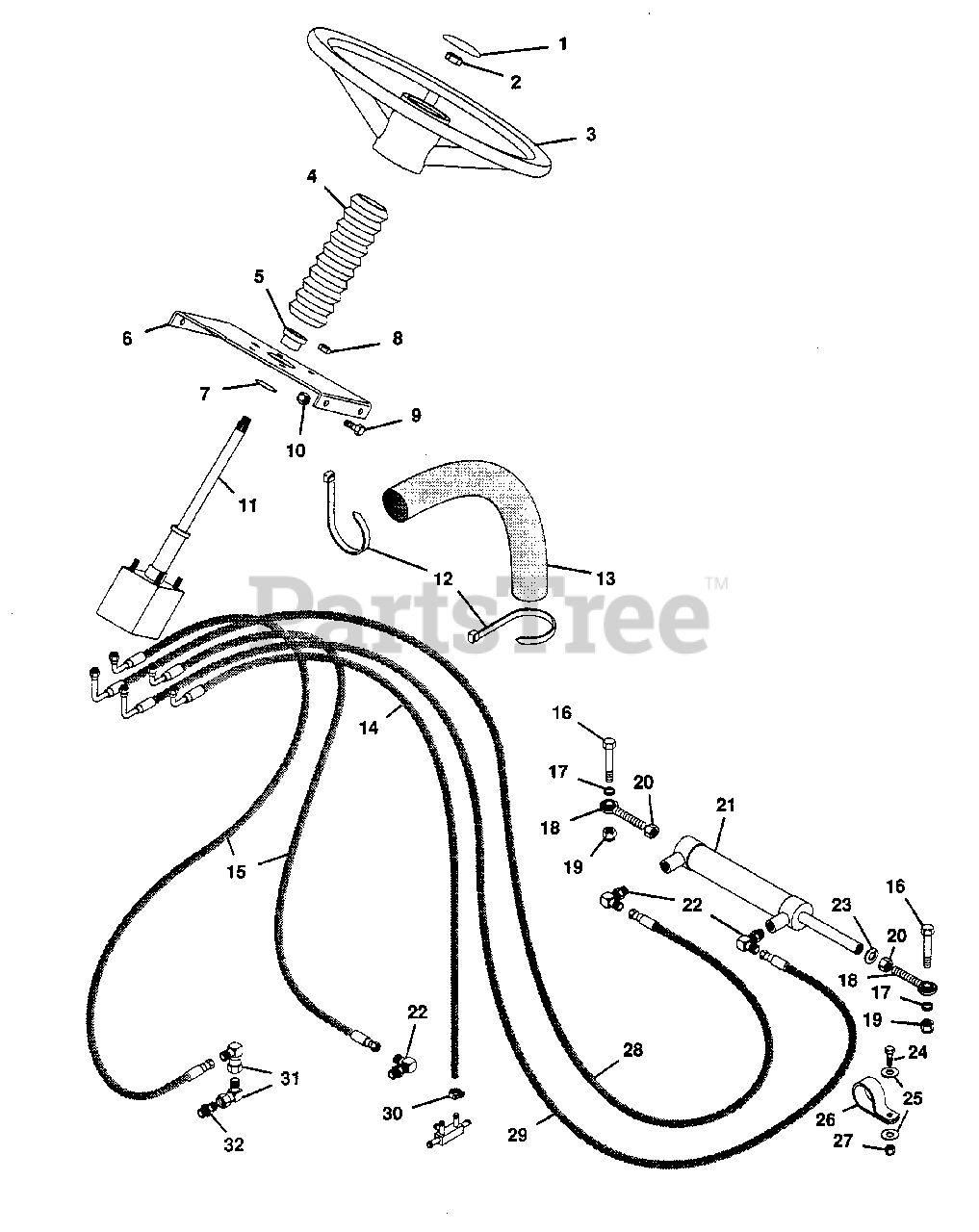

POWER STEERING Parts Diagram

  • Title

1

Gravely 031426

Cap, Steering Wheel
(Superseded to 03489800)

$

$

Not available

2

Gravely 124847

Nut, Jam 5/8-11 Hex
(Superseded to 06539300)

$

$

Not available

3

Gravely 031281

Wheel, Steering
(Superseded to 03066600)

$

$

Not available

4

Gravely 047311

Bellows, Steering Wheel
(Superseded to 08739200)

$

$

Not available

5

Gravely 010174

Bush., Flg. .764x1.47x.560 Ny.
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

6

Gravely 046290

Bracket, Steering Pump
(Superseded to 08977100)

$

$

Not available

7

Gravely 020273

Ring, Retaining Int. Th. 1.00 Sft.
(Superseded to 05717300)

$

$

Not available

8

Gravely 190139

Nut, Lock 5/16-24
(Superseded to 06526500)

$1.99

$

Usually ships in 4-12 days

0

9

Gravely 180077

Bolt, Hex 5/16-18x.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

10

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

11

Gravely 046109

Power Steering Unit
(Superseded to 09093200)

$

$

Not available

12

Gravely 041634

Tie Wrap, Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 050692

Sleeve, Protective
(Superseded to 08787200)

$

$

Not available

14

Gravely 046382

Assembly, Hydraulic Hose
(Superseded to 08978200)

$

$

Not available

15

Gravely 046381

Assembly, Hydraulic Hose
(Superseded to 08978100)

$51.99

$

Usually ships in 4-12 days

0

16

Gravely 180181

Bolt, Hex 1/2-13x2.00
(Superseded to 05901929)

$3.49

$

Usually ships in 4-12 days

0

17

Gravely 046192

Bush., St. .520x.625x.125 Stl.
(Superseded to 08974800)

$21.99

$

In Stock, only 1 left!

0

18

Gravely 044950

Assembly, Rod End R.H.
(Superseded to 08959600)

$38.99

$

Usually ships in 4-12 days

0

19

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

20

Gravely 124934

Nut, Jam 1/2-20
(Superseded to 06539500)

$2.49

$

Usually ships in 4-12 days

0

21

Gravely 044583

Cylinder, Steering
(Superseded to 04935800)

$559.99

$

In Stock, only 1 left!

0

22

Gravely 018828

Adapter, PH 2503-6-6
(Superseded to 00313270)

$9.49

$

In Stock, only 1 left!

0

23

Gravely 120384

Washer, Lock 1/2 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

24

Gravely 180122

Bolt, Hex 3/8-16x1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 045279

Clamp, Nylon
(Superseded to 06939900)

$

$

Not available

27

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

28

Gravely 046384

Assembly, Hydraulic Hose
(Superseded to 21280100)

$

$

Not available

29

Gravely 046383

Assembly, Hydraulic Hose
(Superseded to 21280000)

$

$

Not available

30

Gravely 032045

Clamp Hose
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

31

Gravely 018818

Adaptor, PH 3903-6-6
(Superseded to 08901000)

$20.99

$

Usually ships in 4-12 days

0

32

Gravely 019167

Adaptor, PH 0503-6-6
(Superseded to 07017500)

$11.99

$

In Stock, only 2 left!

0

Gravely 047313

Decal, Steering Wheel Cap
(Superseded to 05213900)

$

$

Not available

Gravely 048269

Kit, Seals Rebuilding
(Superseded to 20906000)

$

$

Not available
