989052 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 31hp Yanmar (SN: 000101 & Above) SEAT AND DECK ASSEMBLY Parts Diagram

Pro-Master Zero-Turn Mower, 31hp Yanmar

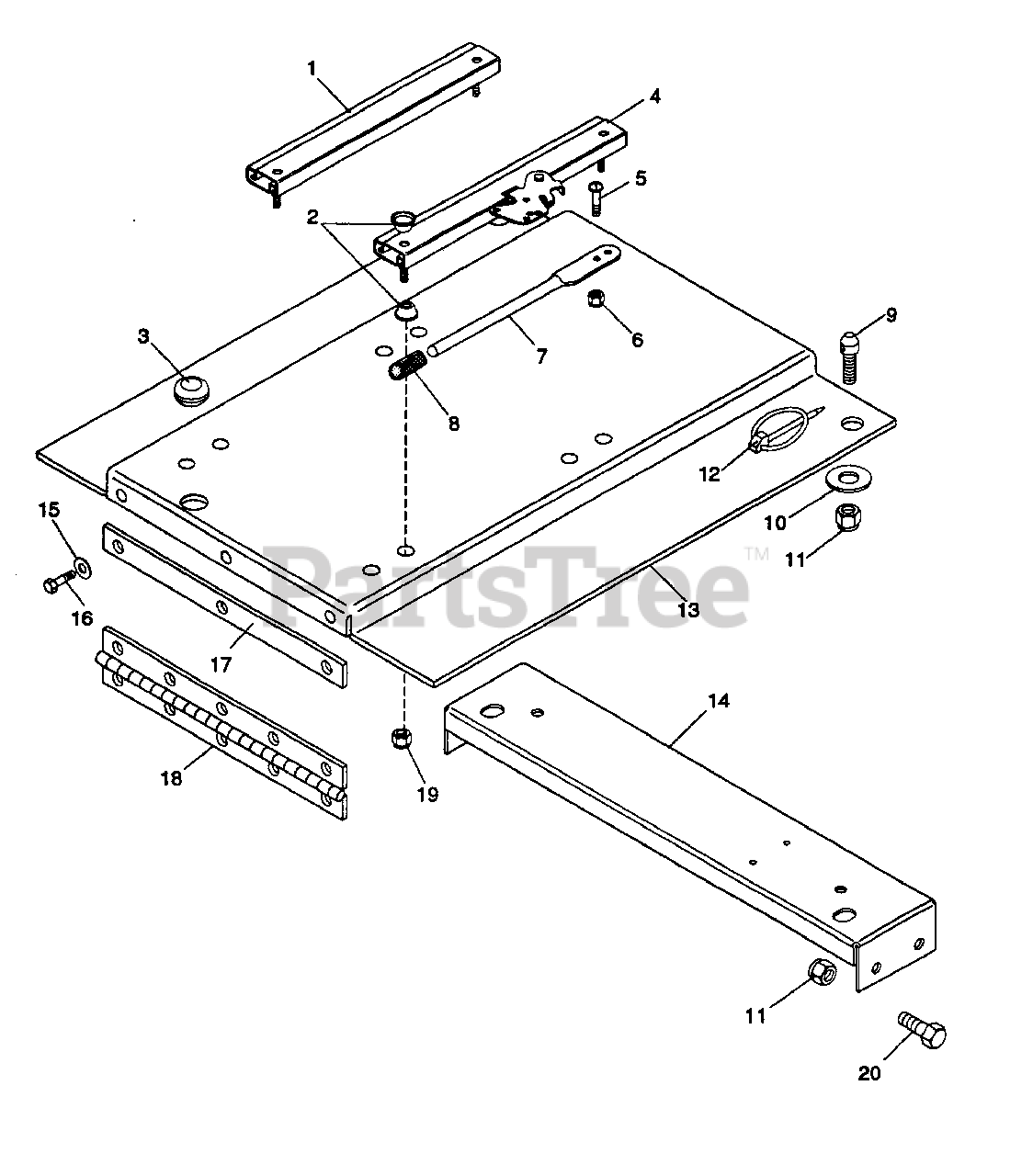

SEAT AND DECK ASSEMBLY Parts Diagram

  • Title

1

Gravely 03573700

ADJUSTER,SEAT
(Superseded to 03600800)

$

$

Not available

2

Gravely 03418300

SEAT SLIDE SPACER

$4.49

$

Usually ships in 4-12 days

0

3

Gravely 07530600

GRMT .75X1.06X1.38

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 03573600

ADJUSTER,SEAT W/LATCH
(Superseded to 03600800)

$

$

Not available

5

Gravely 06111100

SCR-MCH 10-24X.62 P/HD

$1.49

$

In Stock, Qty 10

0

6

Gravely 06506500

NUT-LK 10-24 NY PL
(Superseded to 06536000)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 03416500

SEAT SLIDE HANDLE

$

$

Not available

8

Gravely 07503800

TIP - BRAKE LOCK LEVER

$1.99

$

In Stock, only 2 left!

0

9

Gravely 08964800

PIN,CATCH

$

$

Not available

10

Gravely 06429500

WSHR-FL-STL .531X1.062X.095
(Superseded to 06441900)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06512900

NUT-LK-NYL .50-13 GR 5 PL
(Superseded to 06540600)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 07015400

PIN-KLIK .25X1.75

$6.49

$

Usually ships in 4-12 days

0

13

Gravely 08963900

PLT,DECK

$

$

Not available

14

Gravely 08964700

BRKT,DECK PLATE

$

$

Not available

15

Gravely 06429200

WSHR-FL-STL .344X.688X.065
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 08952500

PLT,CLAMPING
(Superseded to 01539100)

$

$

Not available

18

Gravely 03102800

HINGE-2" X 12.88 YWZC

$

$

Not available

19

Gravely 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$1.49

$

In Stock, Qty 5

0

20

Gravely 05930000

BLT-HEX .50-13X1 PL GR5
(Superseded to 05947100)

$2.99

$

In Stock, only 2 left!

0

NS

Gravely 03542400

DECAL, DANGER HAND
(Superseded to 05350300)

$

$

Not available

NS

Gravely 05215000

DECAL,START

$

$

Not available
