989053 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) STEERING AXLE ASSEMBLE Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

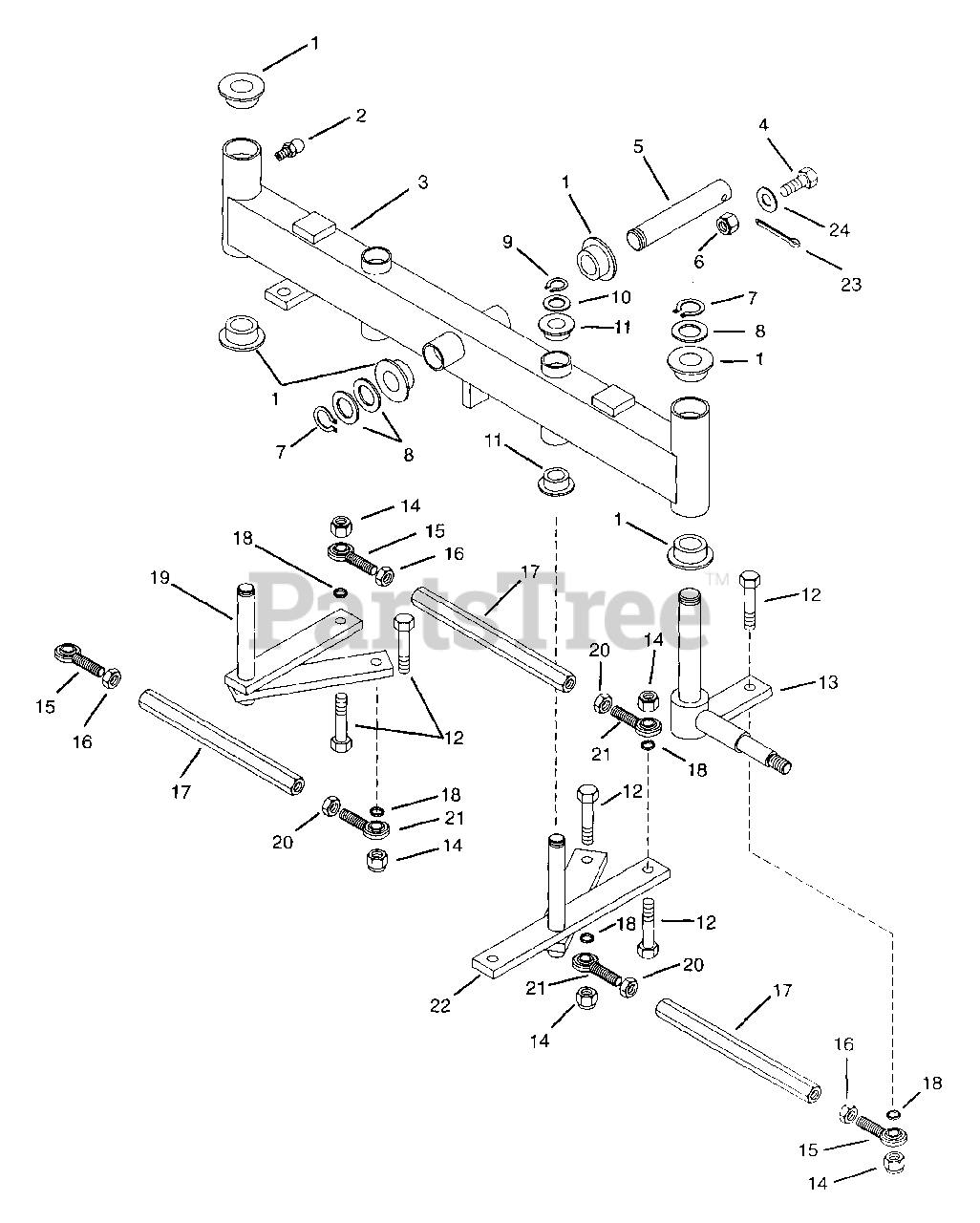

STEERING AXLE ASSEMBLE Parts Diagram

  • Title

1

Gravely 018355

Bushing-Flange 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$10.99

$

In Stock, Qty 20+

0

2

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

3

Gravely 044412

Weldment, Axle
(Superseded to 08949400)

$

$

Not available

4

Gravely 180122

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 053030

Shaft, Pivot
(Superseded to 09016500)

$

$

Not available

6

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

7

Gravely 017980

Ring-Retaining-External .906 x .078
(Superseded to 05707300)

$2.99

$

In Stock, only 2 left!

0

8

Gravely 019340

Washer-Hardened-Thrust 1.002 x 1.552 x .030
(Superseded to 06435300)

$4.99

$

In Stock, only 4 left!

0

9

Gravely 026300

Ring-Retaining-External .689 x .077
(Superseded to 05714600)

$2.49

$

In Stock, Qty 5

0

10

Gravely 011223

Bearing-Needle-Thrust .752 x 1.24 x .031
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

11

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

12

Gravely 180181

Bolt-Hex .50-13 x 2.00 Grade 5
(Superseded to 05901929)

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 049752

Weldment, Kingpin Left Hand
(Superseded to 58903900)

$

$

Not available

13

Gravely 049753

Weldment, Kingpin Right Hand
(Superseded to 58903800)

$

$

Not available

14

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 044950

Assembly, Rod End (Right Hand)
(Superseded to 08959600)

Note: (Right Hand)

$38.99

$

Usually ships in 4-12 days

0

16

Gravely 124934

Nut-Jam .50-20 Grade 2
(Superseded to 06539500)

$2.49

$

Usually ships in 4-12 days

0

17

Gravely 051085

Rod, Tie
(Superseded to 09002400)

$

$

Not available

18

Gravely 046192

Spacer .520 x .625 x .125
(Superseded to 08974800)

$21.99

$

In Stock, only 1 left!

0

19

Gravely 044422

Weldment, Steering Idler
(Superseded to 08950000)

$

$

Not available

20

Gravely 428172

Nut-Jam .50-20 Grade 2
(Superseded to 06538300)

$8.99

$

In Stock, only 2 left!

0

21

Gravely 051086

Assembly, Rod End Left Hand
(Superseded to 09002500)

$

$

Not available

22

Gravely 044423

Weldment, Steering Arm
(Superseded to 08950100)

$

$

Not available

23

Gravely 06705000

Pin-Cotter .250 x 2.00
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 06412700

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06437300)

$0.99

$

In Stock, Qty 15

0
