989054 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) COOLING SYSTEM Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

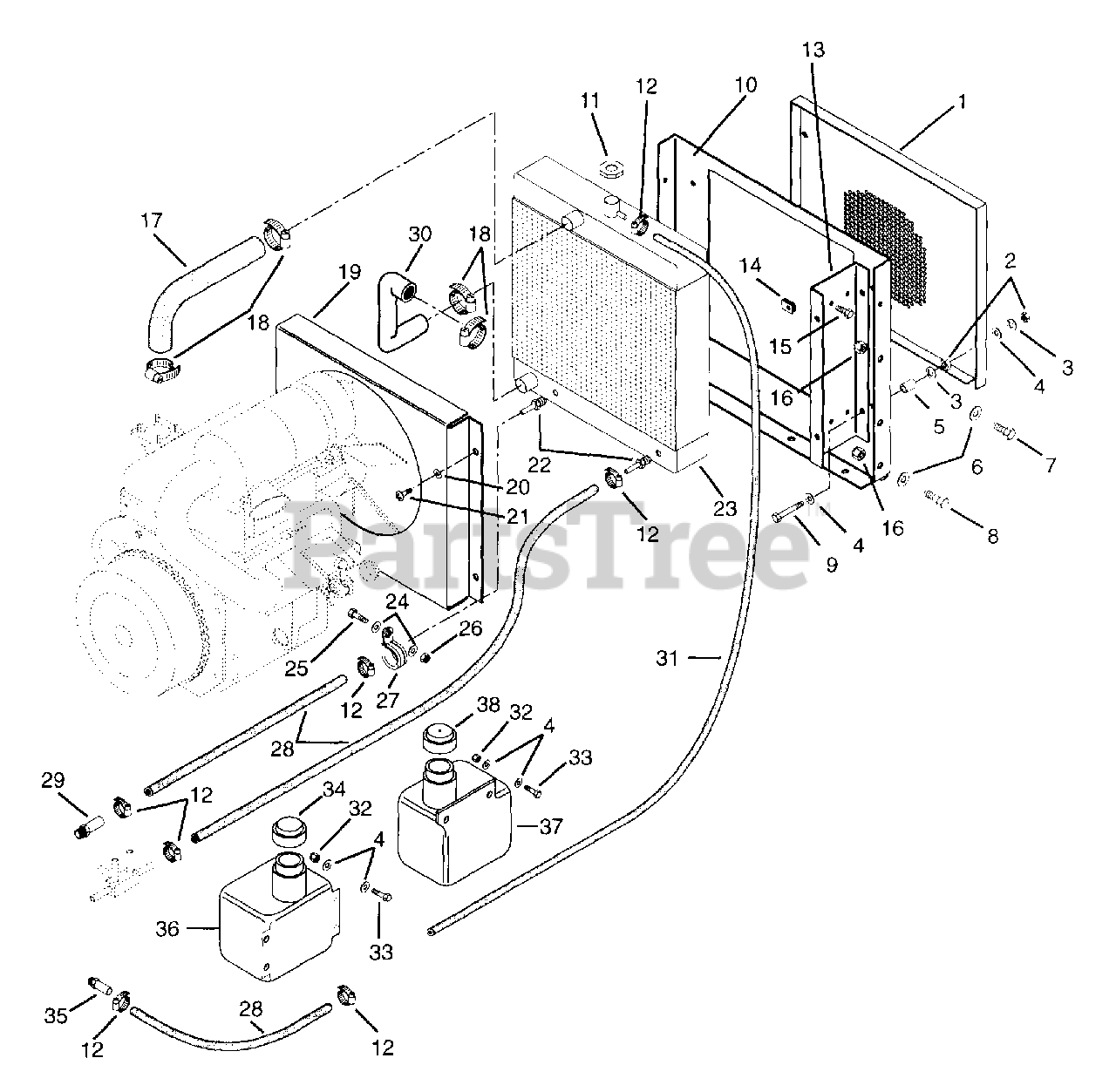

COOLING SYSTEM Parts Diagram

  • Title

1

Gravely 044520

Cover, Air
(Superseded to 09080800)

$25.99

$

Usually ships in 4-12 days

0

2

Gravely 120376

Nut-Hex .312-18 Grade 2
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

3

Gravely 120214

Washer-Lock .313 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 120393

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

5

Gravely 038696

Bushing-Sleeve .407 x .625 x .750
(Superseded to 05525700)

$7.49

$

In Stock, only 1 left!

0

6

Gravely 120396

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 180173

Bolt-Hex .50-13 x 1 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

8

Gravely 180177

Bolt-Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

9

Gravely 180087

Bolt-Hex .31-18 x 2.00 Grade 5
(Superseded to 05901805)

$1.49

$

In Stock, Qty 13

0

10

Gravely 09040300

Mount, Radiator

$

$

Not available

11

Gravely 046291

Cap, Radiator
(Superseded to 08977200)

$

$

Not available

12

Gravely 032045

Hose Clamp
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

13

Gravely 044497

Bracket, Radiator
(Superseded to 08951000)

$

$

Not available

14

Gravely 032369

Nut-Retainer .25-20 x .56
(Superseded to 07009000)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 180073

Bolt-Hex .31-18 x .50
(Superseded to 05901904)

$1.49

$

In Stock, Qty 15

0

16

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 09046700

Hose, Radiator Upper

$

$

Not available

18

Gravely 046365

Clamp-Hose 1.50 x .81 x 1.42
(Superseded to 06922200)

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 09063500

Weldment, Fan Cover

$74.99

$

Usually ships in 4-12 days

0

20

Gravely 120392

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

21

Gravely 160541

Screw-Machine .25-20
(Superseded to 06113500)

$1.99

$

In Stock, only 3 left!

0

22

Gravely 049257

Adapter .38 Male Pipe to .38 Bead Tube
(Superseded to 07020200)

$

$

Not available

23

Gravely 09058900

Radiator

$

$

Not available

24

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 180122

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

27

Gravely 050394

Clamp, Cushioned Steel
(Superseded to 06908200)

$5.99

$

Usually ships in 4-12 days

0

28

Gravely 035636

Hose, Hydraulic
(Superseded to 00921600)

$11.99

$

Usually ships in 4-12 days

0

29

Gravely 045227

Fitting-Adapter .562-18
(Superseded to 07019600)

$

$

Not available

30

Gravely 09044700

Hose, Lower Radiator

$

$

Not available

31

Gravely 048544

Hose, 5/16 Inside Diameter
(Superseded to 00922600)

$0.99

$

Usually ships in 4-12 days

0

32

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

33

Gravely 180079

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

34

Gravely 09036000

Cap, 2" Vented

$21.99

$

Usually ships in 4-12 days

0

35

Gravely 022145

Connector, Hose
(Superseded to 08903600)

$

$

Not available

36

Gravely 053402

Tank, Plastic 2.0 Quart (Hydraulic)
(Superseded to 09033800)

Note: (Hydraulic)

$

$

Not available

37

Gravely 044385

Tank, Plastic 1.5 Quart (Coolant)
(Superseded to 09032400)

Note: (Coolant)

$

$

Not available

38

Gravely 045243

Cap, 1-5/8 Vented
(Superseded to 08967800)

$

$

Not available
