989054 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) DIRECTION CONTROL Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

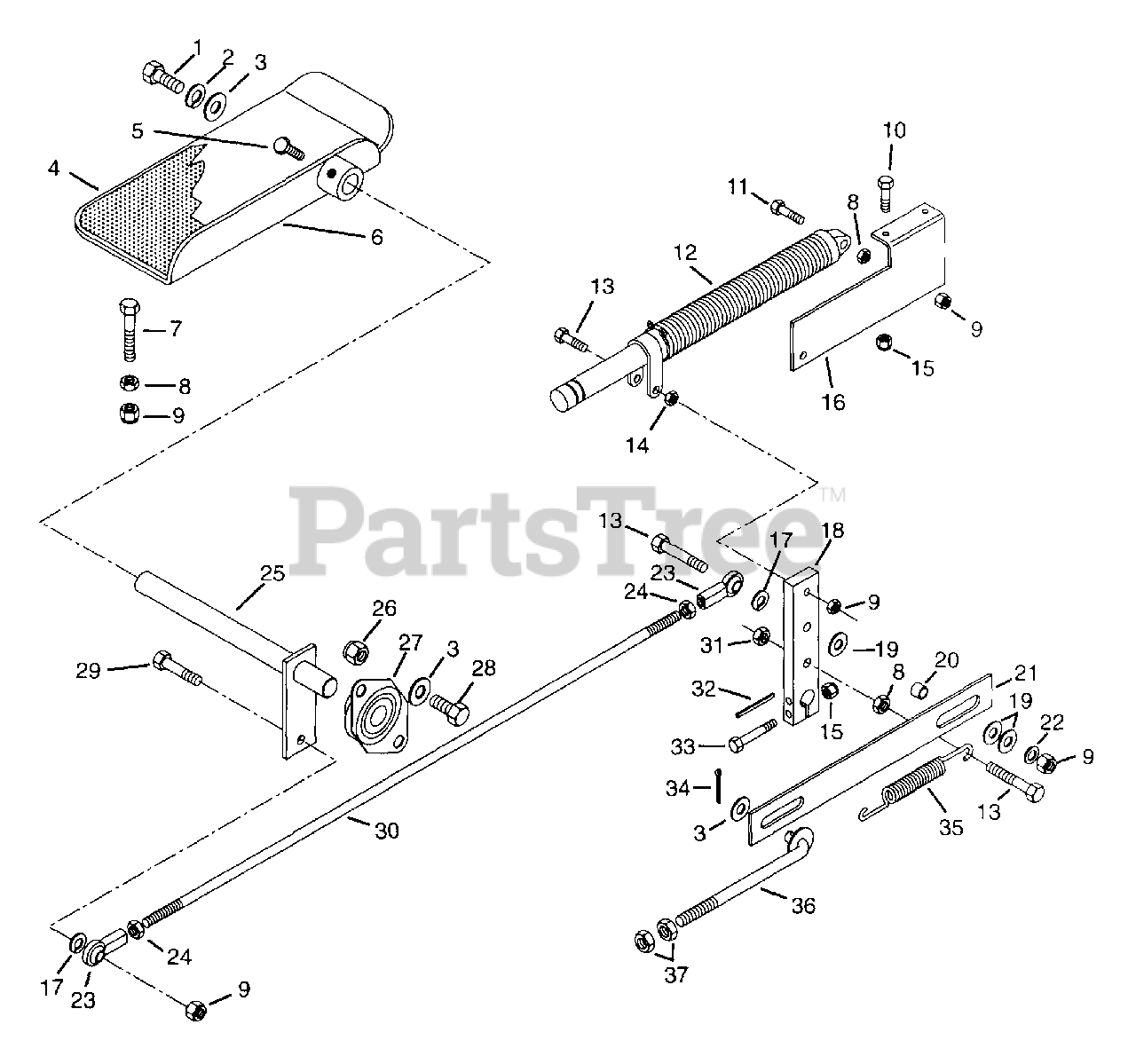

DIRECTION CONTROL Parts Diagram

  • Title

1

Gravely 180122

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 120382

Washer-Lock .375 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

3

Gravely 120394

Washer-Flat - Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 011653

Cover, Large Footboard
(Superseded to 09023200)

$14.99

$

Usually ships in 4-12 days

0

5

Gravely 181561

Bolt-Hex .25-28 x .50
(Superseded to 05936600)

$

$

Not available

6

Gravely 045970

Weldment, Foot Control Lever
(Superseded to 08972900)

$

$

Not available

7

Gravely 049167

Bolt-Hex .31-18 x 2.50 Grade 5
(Superseded to 05934700)

$

$

Not available

8

Gravely 120376

Nut-Hex .312-18 Grade 2
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

9

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

10

Gravely 180018

Bolt-Hex .25-20 x .63
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

11

Gravely 180085

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

12

Gravely 050131

Damper
(Superseded to 08994400)

$195.99

$

Usually ships in 4-12 days

0

13

Gravely 180087

Bolt-Hex .31-18 x 2.00 Grade 5
(Superseded to 05901805)

$1.49

$

In Stock, Qty 13

0

14

Gravely 124824

Nut-Jam .312-18
(Superseded to 06500909)

$0.99

$

In Stock, only 3 left!

0

15

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

16

Gravely 050531

Bracket, Damper
(Superseded to 08997500)

$

$

Not available

17

Gravely 120214

Washer-Lock .313 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 050532

Arm, Pump
(Superseded to 08997600)

$

$

Not available

19

Gravely 120396

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 040360

Bushing, Steel .328 x .500 x .500
(Superseded to 08715300)

$49.99

$

Usually ships in 4-12 days

0

21

Gravely 046170

Strap, Neutral Detent
(Superseded to 08974600)

$

$

Not available

22

Gravely 120393

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

23

Gravely 045002

Rod End, 5/16" Female
(Superseded to 03787100)

$12.99

$

In Stock, Qty 5

0

24

Gravely 124920

Nut-Jam .312-24
(Superseded to 06500923)

$0.99

$

In Stock, Qty 8

0

25

Gravely 050721

Weldment, Control
(Superseded to 09000500)

$

$

Not available

26

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

27

Gravely 030986

Bearing-Flange .75 x 2 Holes x 2.123
(Superseded to 05424100)

$

$

Not available

28

Gravely 180120

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 1 left!

0

29

Gravely 180081

Bolt-Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

30

Gravely 045225

Rod, Speed Control
(Superseded to 09029600)

$

$

Not available

31

Gravely 413447

Nut-Locking-Center .312-18 Grade 2
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 412281

Pin-Roll .250 x 1.000
(Superseded to 05808400)

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 180042

Bolt-Hex .25-20 x 1.75 Grade 2
(Superseded to 05964700)

$2.49

$

In Stock, only 3 left!

0

34

Gravely 121222

Pin-Cotter .09 x .75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 5

0

35

Gravely 015255

Spring-Tension .091 x .500 x 5.50
(Superseded to 08327500)

$

$

Not available

36

Gravely 044492

Weldment, Detent Rod
(Superseded to 08950900)

$

$

Not available

37

Gravely 120369

Nut-Hex .375-24 Grade 2
(Superseded to 06522900)

$2.49

$

In Stock, only 1 left!

0
