989054 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) MAIN FRAME Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

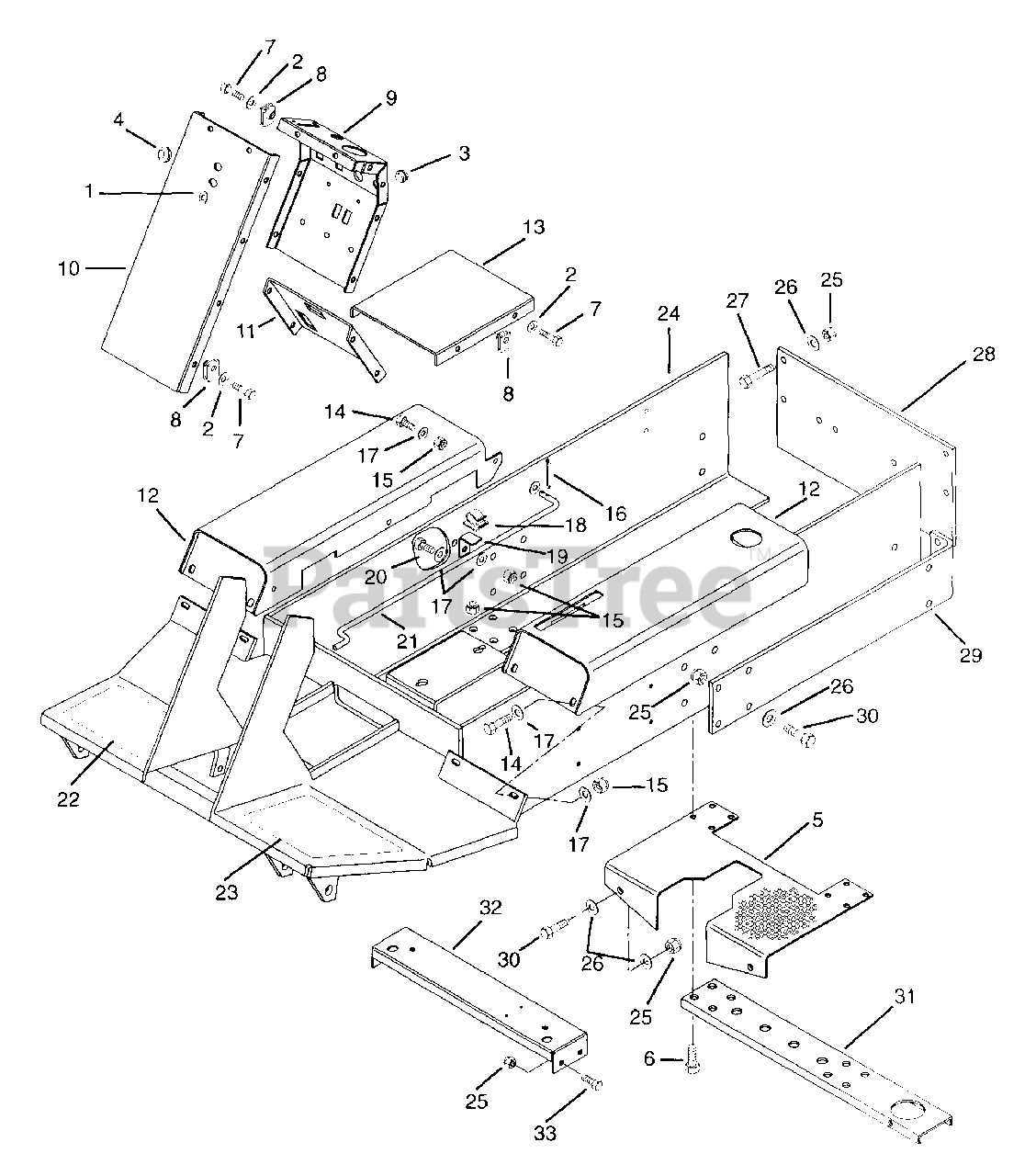

MAIN FRAME Parts Diagram

  • Title

1

Gravely 06421400

Washer-Flat-Steel .328 x 1.0 x .094
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

2

Gravely 120392

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

3

Gravely 036485

Grommet .062 x .312
(Superseded to 07502600)

$

$

Not available

4

Gravely 09036300

Weldment, Rollover Bar

$284.99

$

Usually ships in 4-12 days

0

5

Gravely 08943000

Screen

$

$

Not available

6

Gravely 180124

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 7

0

7

Gravely 160541

Screw-Machine .25-20
(Superseded to 06113500)

$1.99

$

In Stock, only 3 left!

0

8

Gravely 032369

Nut-Retainer .25-20 x .56
(Superseded to 07009000)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 09058400

Panel, Instrument

$11.99

$

Usually ships in 4-12 days

0

10

Gravely 046394

Panel, Front
(Superseded to 08978500)

$

$

Not available

11

Gravely 09009700

Panel, Brake Lock

$22.99

$

Usually ships in 4-12 days

0

12

Gravely 050919

Weldment, Fender Right Hand
(Superseded to 09001000)

$13.99

$

Usually ships in 4-12 days

0

12

Gravely 051383

Weldment, Fender Left Hand
(Superseded to 09004800)

$26.99

$

Usually ships in 4-12 days

0

13

Gravely 08966600

Panel, Access

$

$

Not available

14

Gravely 180121

Bolt-Hex .380-16 x .875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

15

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

16

Gravely 121222

Pin-Cotter .09 x .75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 5

0

17

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 051728

Clip, Wire
(Superseded to 06921600)

$

$

Not available

19

51727

Bracket, Stay Rod

$

$

Not available

20

Gravely 180122

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 045214

Rod, Stay
(Superseded to 09029500)

$

$

Not available

22

Gravely 046369

Cover, Right Hand Foot
(Superseded to 08964600)

$14.99

$

Usually ships in 4-12 days

0

23

Gravely 046368

Cover, Left Hand Foot
(Superseded to 08964000)

$14.99

$

Usually ships in 4-12 days

0

24

Gravely 09044400

Weldment, Frame

$

$

Not available

25

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

26

Gravely 120396

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 180177

Bolt-Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

28

Gravely 051204

Plate, Bumper - 22 lbs
(Superseded to 09003100)

$

$

Not available

28

090547

Plate, Bumper - 37 lbs

Note: Can be substituted for P/N 051204

$

$

Not available

29

Gravely 09046500

Bumper, Kubota Frame

$

$

Not available

30

Gravely 180175

Bolt-Hex .50-13 x 1.25 Grade 5 (989051,300)
(Superseded to 05901637)

Note: (989051,300)

$3.49

$

In Stock, only 1 left!

0

30

Gravely 05946000

Bolt-Hex .50-13 x 1.75 Grade 8 (989052,301)

Note: (989052,301)

$

$

Not available

31

Gravely 050665

Bracket, Frame
(Superseded to 08998600)

$

$

Not available

32

Gravely 045147

Bracket, Deck Plate
(Superseded to 08964700)

$

$

Not available

33

Gravely 180173

Bolt-Hex .50-13 x 1 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0
