989055 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) COOLING SYSTEM Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

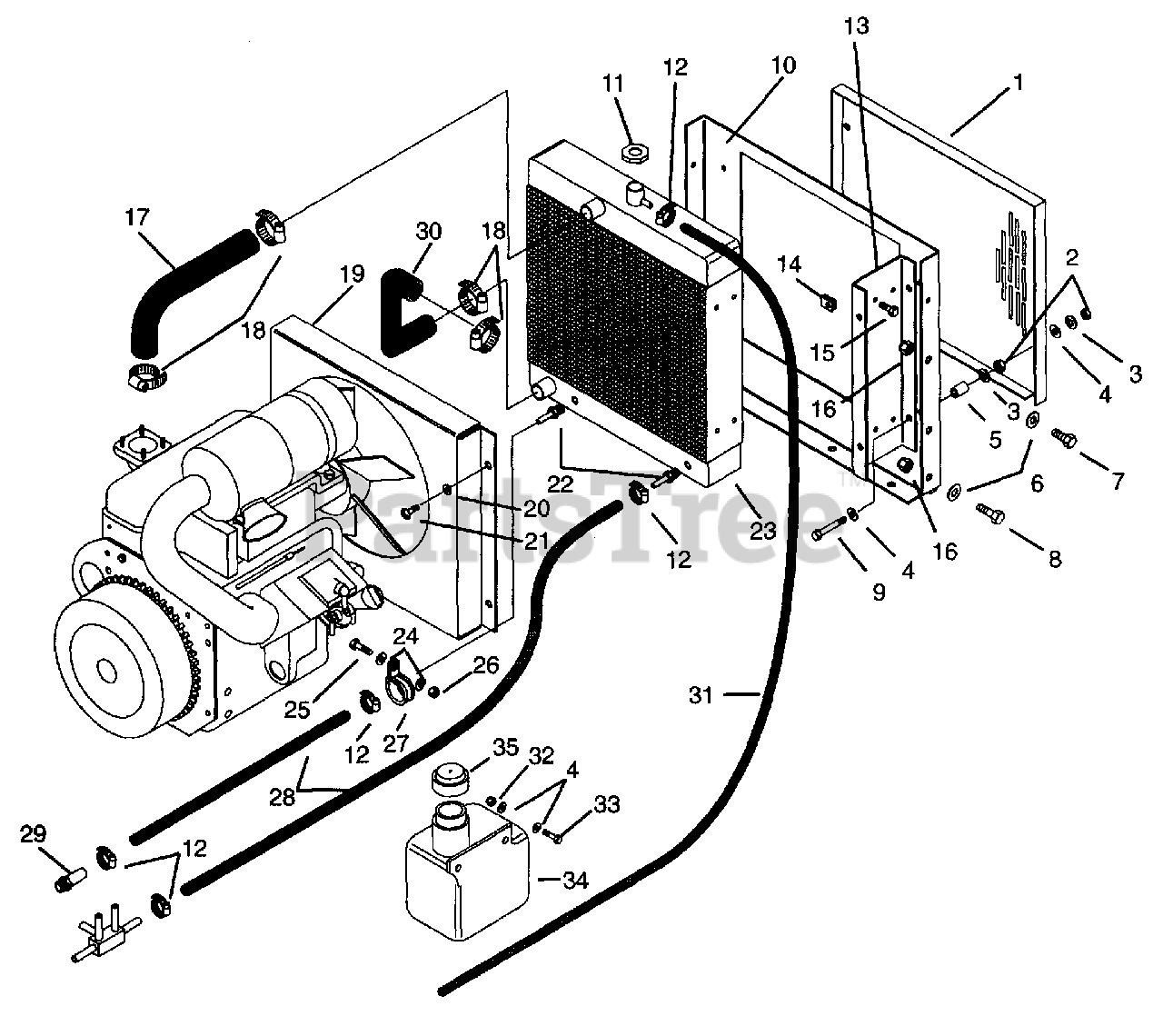

COOLING SYSTEM Parts Diagram

  • Title

1

Gravely 09080800

COVER, AIR

$25.99

$

Usually ships in 4-12 days

0

2

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

3

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 038696

BSHG-SLV .407X.625X.750 PL
(Superseded to 05525700)

$7.49

$

In Stock, Qty 19

0

6

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05947100

BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.99

$

In Stock, only 2 left!

0

8

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$4.99

$

In Stock, Qty 12

0

9

Gravely 05957200

BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.99

$

In Stock, Qty 19

0

10

Gravely 09040300

MOUNT, RADIATOR

$

$

Not available

11

Gravely 046291

CAP,RADIATOR
(Superseded to 08977200)

$

$

Not available

12

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$7.99

$

Usually ships in 4-12 days

0

13

Gravely 044497

BRKT,RADIATOR
(Superseded to 08951000)

$

$

Not available

14

Gravely 05947200

BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$1.99

$

In Stock, only 2 left!

0

15

Gravely 180073

BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$1.99

$

In Stock, only 2 left!

0

16

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

17

Gravely 09046700

HOSE, RADIATOR UPPER

$

$

Not available

18

Gravely 046365

CLAMP-HOSE 1.50X.81X1.42
(Superseded to 06922200)

$6.49

$

Usually ships in 4-12 days

0

19

Gravely 09063500

WLDMT, FAN COVER

$74.99

$

Usually ships in 4-12 days

0

20

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06114300

SCR-MCH .25-20X.50 TXTR PL

$2.99

$

Usually ships in 4-12 days

0

22

Gravely 049257

ADPTR .38 MA PIPE TO .38 TUBE
(Superseded to 07020200)

$

$

Not available

23

Gravely 09058900

RADIATOR

$

$

Not available

24

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 050394

CLAMP, CUSHIONED STEEL
(Superseded to 06908200)

$6.49

$

Usually ships in 4-12 days

0

28

Gravely 035636

HOSE,HYDRAULIC
(Superseded to 00921600)

$11.99

$

Usually ships in 4-12 days

0

29

Gravely 045227

FTG-ADPTR .562-18 ST THD
(Superseded to 07019600)

$

$

Not available

30

Gravely 09044700

HOSE, LOWER RADIATOR

$

$

Not available

31

Gravely 048544

HOSE,5/16 ID
(Superseded to 00922600)

$

$

Not available

32

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

33

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

34

Gravely 022145

CONN,HOSE
(Superseded to 08903600)

$

$

Not available

35

Gravely 044385

TANK,PLASTIC 1.5 QT
(Superseded to 09032400)

Note: (Coolant)

$

$

Not available

36

Gravely 045243

CAP,1-5/8 VENTED
(Superseded to 08967800)

$

$

Not available
