989055 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) FOUR WHEEL DRIVE ASSIST KIT Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

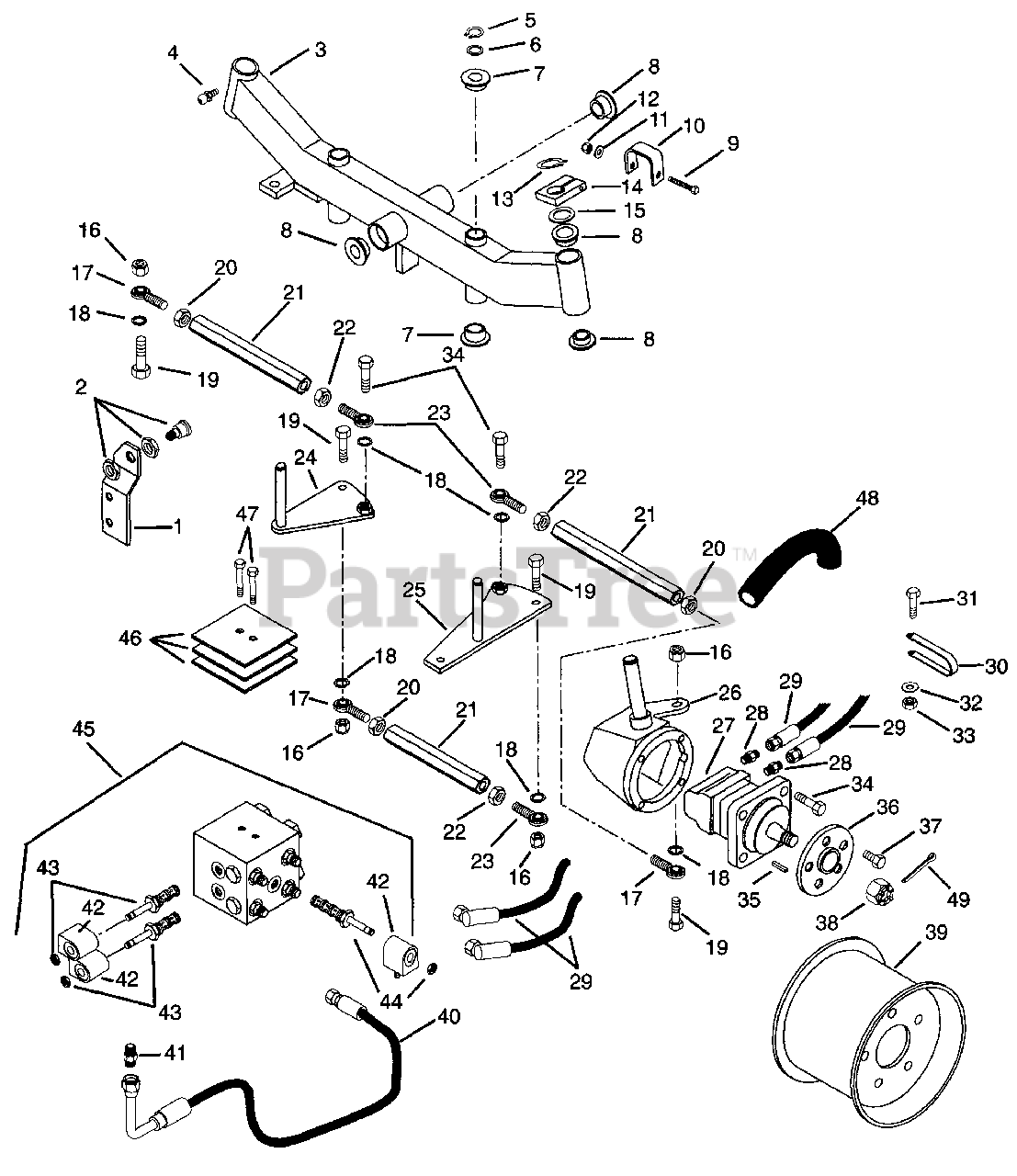

FOUR WHEEL DRIVE ASSIST KIT Parts Diagram

  • Title

1

Gravely 09030800

BRACKET

$5.99

$

Usually ships in 4-12 days

0

2

Gravely 039493

SAFETY SWITCH
(Superseded to 03110700)

$40.99

$

Usually ships in 4-12 days

0

3

Gravely 09039100

AXLE WELDMENT

$91.99

$

Usually ships in 4-12 days

0

4

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

5

Gravely 026300

RG-RTNG-EXT .689X.078
(Superseded to 05714600)

$2.99

$

In Stock, only 1 left!

0

6

Gravely 011223

WSHR-HDND-THRST .758X1.23X.031
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

7

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

8

Gravely 018355

BSHG-FLG1.020X1.385X.75X1.75NY
(Superseded to 05520100)

$11.99

$

In Stock, Qty 20+

0

9

Gravely 05969900

BLT-HEX .25-20X2.75 GR5 YWZC

$

$

Not available

10

Gravely 09017400

BRACKET, HOSE LOOP

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 017980

RG-RTNG-EXT 1.00X.078
(Superseded to 05707300)

$3.49

$

In Stock, Qty 9

0

14

Gravely 09038300

BRACKET SUPPORT

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 019340

WSHR-HDND-THRUST 1.00X1.55X.03
(Superseded to 06435300)

$5.49

$

In Stock, Qty 8

0

16

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

17

Gravely 044950

ROD END, 1/2 RH
(Superseded to 08959600)

$40.99

$

Usually ships in 4-12 days

0

18

Gravely 046192

SPACER .520X.625X.125 ST
(Superseded to 08974800)

$22.99

$

In Stock, only 1 left!

0

19

Gravely 05959700

BLT-HEX .50-13X2.00 GR5 YWZC
(Superseded to 05901929)

$3.49

$

In Stock, only 2 left!

0

20

Gravely 06539500

NUT-JAM .50-20 GR2 YWZC

$2.99

$

Usually ships in 4-12 days

0

21

Gravely 051085

ROD,TIE
(Superseded to 09002400)

$

$

Not available

22

Gravely 06538300

NUT-JAM .50-20 LH GR2 YWZC

$

$

Not available

23

Gravely 051086

ROD END, 1/2 LH
(Superseded to 09002500)

$

$

Not available

24

Gravely 09084300

WLDMT, STEERING IDLER

$

$

Not available

25

Gravely 09084200

WLDMT, STEERING ARM

$

$

Not available

26

Gravely 09045500

SPINDLE WLDM'T, L.H.

$

$

Not available

Gravely 09045400

SPINDLE WLDM'T, R.H.

$148.99

$

Usually ships in 4-12 days

0

27

Gravely 09045600

EATON 2000 WHEEL MOTOR

$956.99

$

Usually ships in 4-12 days

0

28

Gravely 07025800

ADAPTER, HYD ST 7/8 "O" TO 3/4

$14.99

$

Usually ships in 4-12 days

0

29

Gravely 09038600

ASSEMBLY, HYDRAULIC HOSE

$

$

Not available

30

Gravely 045279

CLAMP-2.00 DIA W/.406 HOLE
(Superseded to 06939900)

$

$

Not available

31

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$4.99

$

In Stock, Qty 12

0

35

Gravely 06609800

KEY-SQ .313X1.00

$3.99

$

Usually ships in 4-12 days

0

36

Gravely 09017600

HUB

$

$

Not available

37

Gravely 07412200

SCR-TAP .500-20X.62 HH YWZC
(Superseded to 07416900)

$14.99

$

Usually ships in 4-12 days

0

38

Gravely 06528400

NUT-HEX SL 1.0-20

$

$

Not available

39

Gravely 07136400

WHEEL

$

$

Not available

40

Gravely 09038700

ASSEMBLY, HYDRAULIC HOSE

$

$

Not available

41

Gravely 07020400

ADAPTER, HYD ST 3/4 "O" TO 3/4

$

$

Not available

42

Gravely 07020700

COIL, SOLENOID

$

$

Not available

43

Gravely 07026700

VALVE, 3-WAY 12VDC DIRECTIONAL

$

$

Not available

44

Gravely 07026800

VALVE, 4 WAY 12VDC DIRECTIONAL

$

$

Not available

45

Gravely 09017800

HYDRAULIC MANIFOLD ASSEMBLY

$1876.99

$

Usually ships in 4-12 days

0

46

Gravely 09038800

PLATE

$5.99

$

Usually ships in 4-12 days

0

47

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 11

0

48

Gravely 050692

SLEEVE 18"
(Superseded to 08787200)

$

$

Not available

49

Gravely 06704600

PIN-HAIR .12X2.0

$

$

Not available
