989055 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) HOOD ASSEMBLY Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

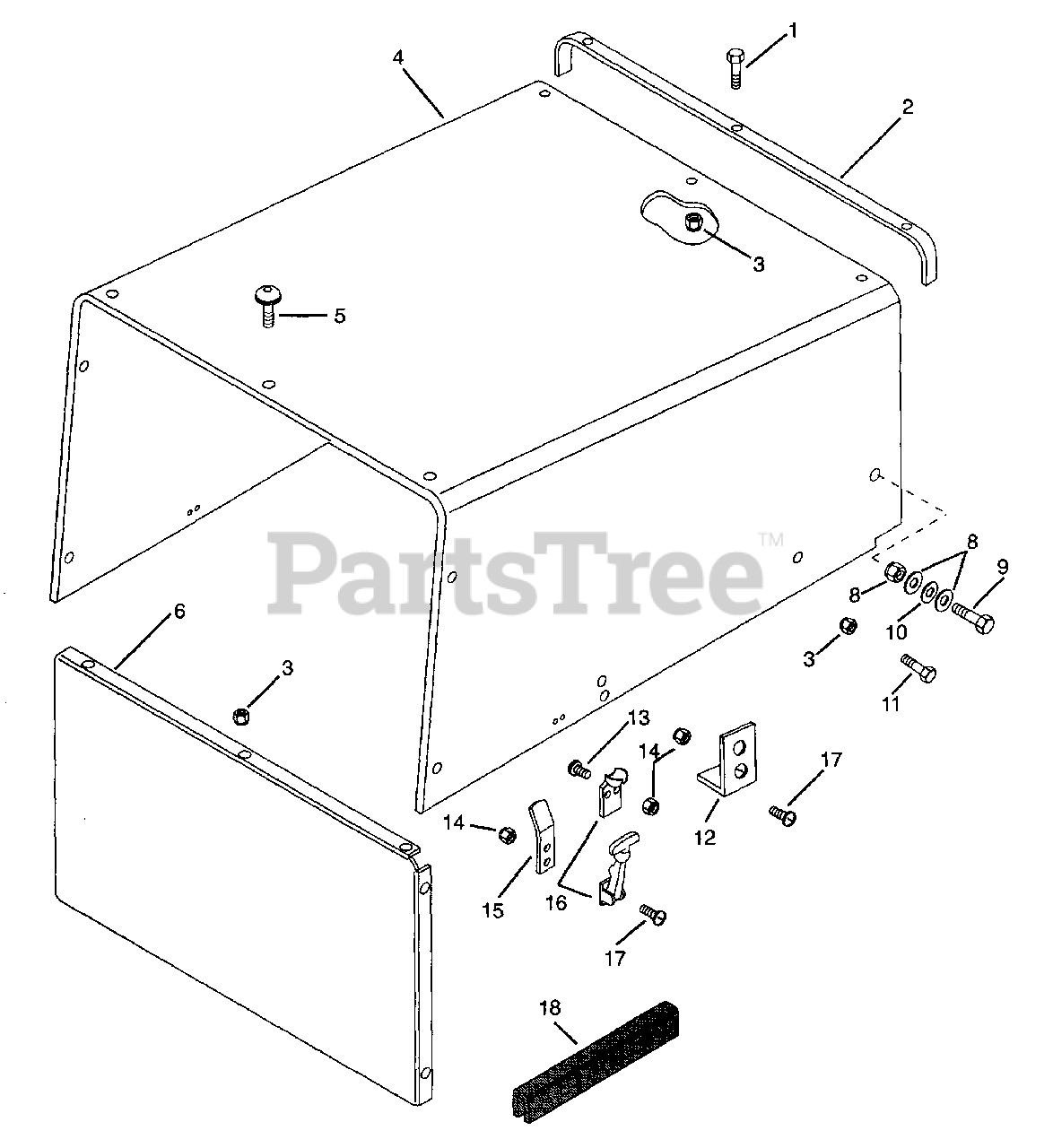

HOOD ASSEMBLY Parts Diagram

  • Title

1

Gravely 06114400

SCR-MCH .25-20X.75 TXTR YWZC

$1.49

$

In Stock, only 3 left!

0

2

Gravely 052991

BRACE,HOOD
(Superseded to 09013400)

$

$

Not available

3

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 09045800

HOOD, ENGINE (KUBOTA 400)
(Superseded to 09067200)

$102.99

$

Usually ships in 4-12 days

0

5

Gravely 06114300

SCR-MCH .25-20X.50 TXTR PL

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 09040500

PANEL, HOOD

$

$

Not available

7

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06433600

WSHR-FL-NY .375X.75X.060

$0.99

$

In Stock, only 4 left!

0

10

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 2 left!

0

12

Gravely 09042600

BRACKET

Note: (989300,301)

$

$

Not available

13

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 046295

PLT,GUIDE
(Superseded to 08977300)

$

$

Not available

16

Gravely 045554

LATCH
(Superseded to 08969700)

$

$

Not available

17

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

18

Gravely 049767

STRIP, COWL
(Superseded to 00918200)

$6.49

$

Usually ships in 4-12 days

0
