989056 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) WIRING DIAGRAM Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

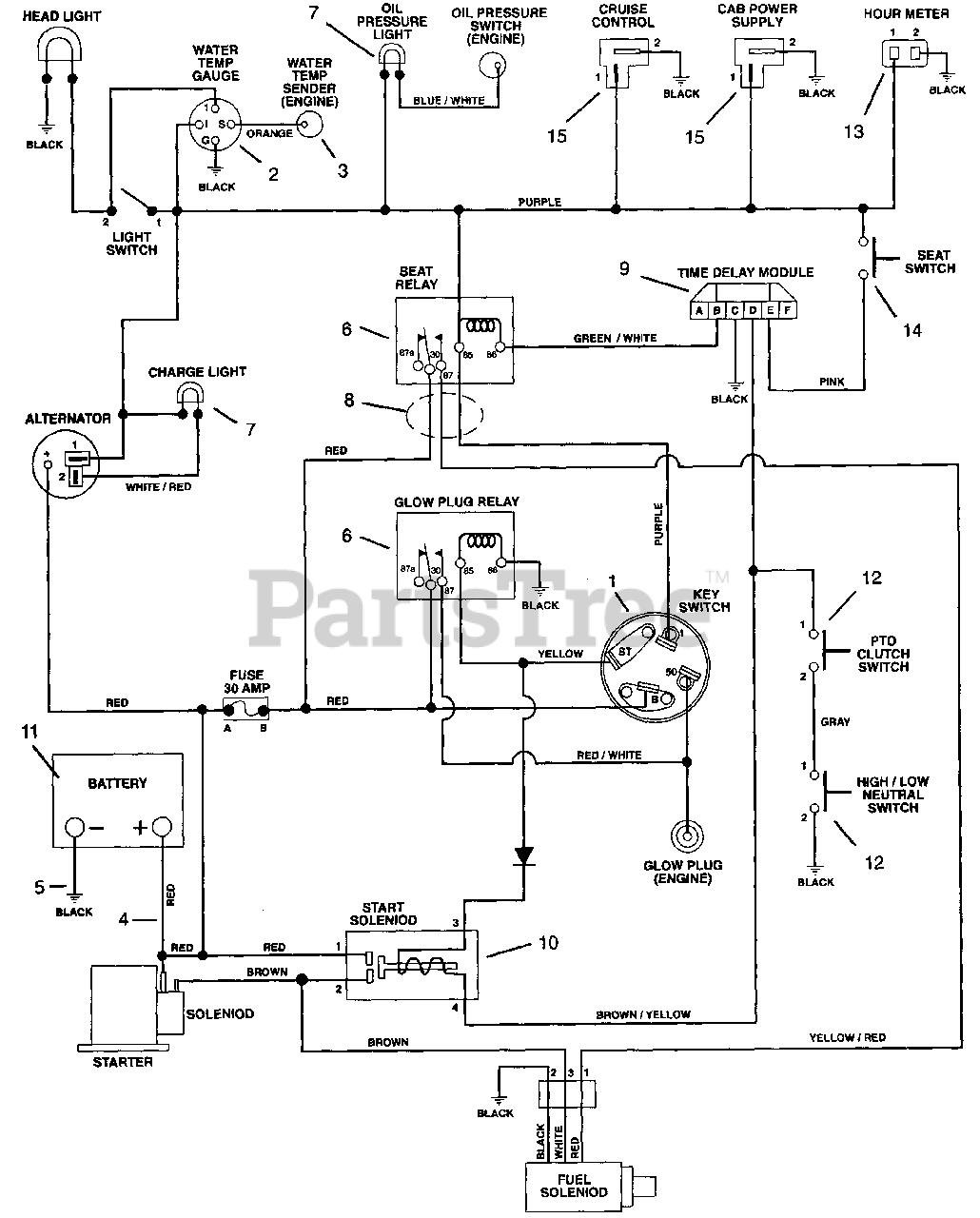

WIRING DIAGRAM Parts Diagram

  • Title

1

Gravely 09056700

SWITCH, IGNITION (DIESEL)
(Superseded to 00168400)

Note: (Diesel)

$60.99

$

In Stock, only 4 left!

0

2

Gravely 09065200

TEMPERATURE GAUGE

$

$

Not available

3

Gravely 09061200

TEMPERATURE SENDER

$

$

Not available

4

Gravely 045019

CBL,POSITIVE CABLE
(Superseded to 08961100)

$

$

Not available

5

Gravely 045018

CBL,NEGATIVE BATTERY
(Superseded to 08961000)

$

$

Not available

6

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

$27.99

$

In Stock, Qty 20+

0

7

Gravely 050673

LIGHT, INDICATOR (RED)
(Superseded to 05128700)

$8.49

$

In Stock, Qty 6

0

8

Gravely 09044600

WIRE HARNESS, KUBOTA

$

$

Not available

9

Gravely 09044200

MODULE,INTERLOCK,DELAY, 1801

$76.99

$

In Stock, only 2 left!

0

10

Gravely 045071

SOLENOID
(Superseded to 03551000)

$45.99

$

In Stock, only 2 left!

0

11

Gravely 09044500

BATTERY, 24F-WET

$

$

Not available

12

Gravely 020916

SWITCH-NEUTRAL START N.O.
(Superseded to 02913100)

$48.99

$

In Stock, only 2 left!

0

13

Gravely 038256

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$26.99

$

In Stock, Qty 19

0

14

Gravely 045036

SEAT SWITCH
(Superseded to 03490500)

$17.99

$

In Stock, only 2 left!

0

15

Gravely 03657000

COVER - SWITCH
(Superseded to 00539300)

$10.99

$

Usually ships in 4-12 days

0
