989057 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) Direction Control Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

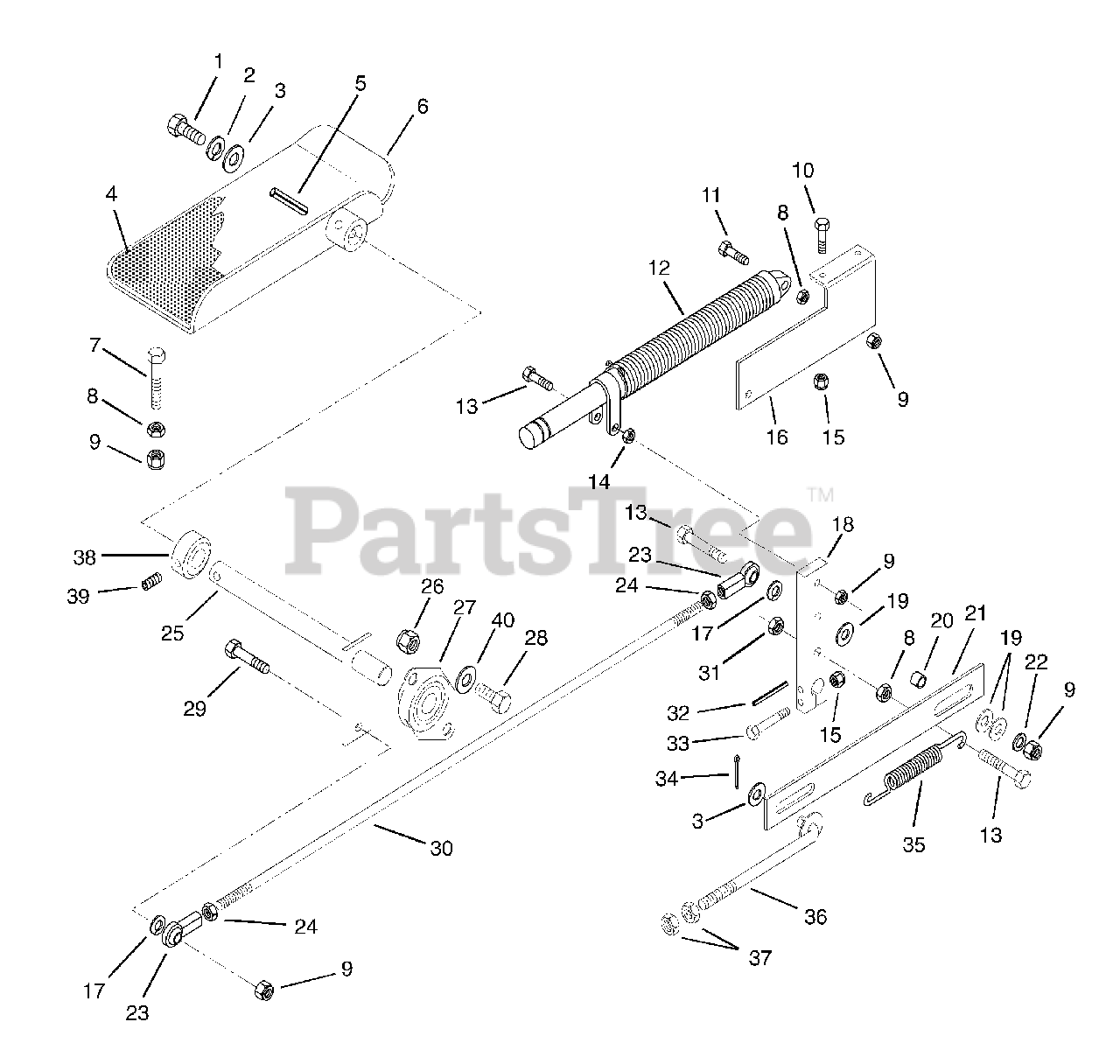

Direction Control Parts Diagram

  • Title

1

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 09094200

COVER, PEDAL

$

$

Not available

5

Gravely 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 7

0

6

Gravely 09092951

WLDMT, FOOT CONTROL

$

$

Not available

7

Gravely 05952600

BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

9

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

11

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

12

Gravely 050131

DAMPER
(Superseded to 08994400)

$203.99

$

Usually ships in 4-12 days

0

13

Gravely 05957200

BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.99

$

In Stock, Qty 19

0

14

Gravely 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$1.49

$

In Stock, Qty 17

0

15

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 050531

BRKT,DAMPER
(Superseded to 08997500)

$

$

Not available

17

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 050532

ARM,PUMP
(Superseded to 08997600)

$

$

Not available

19

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, Qty 20+

0

21

Gravely 046170

STRP,NEUTRAL DETENT
(Superseded to 08974600)

$

$

Not available

22

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 045002

ALIGNABALL, 5/16 RH THREAD
(Superseded to 03787100)

$18.99

$

Usually ships in 4-12 days

0

24

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 3 left!

0

25

Gravely 09070100

WELDMENT CONTROL

$

$

Not available

26

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 05402500

BRG-FLG .751X2 HOLESX.81

$23.99

$

Usually ships in 4-12 days

0

28

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 11

0

30

Gravely 09092100

ROD, DIRECTION CONTROL

$

$

Not available

31

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 412281

PIN-ROLL .250X1.000
(Superseded to 05808400)

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 05964700

BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05901935)

$2.49

$

In Stock, Qty 12

0

34

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, only 2 left!

0

35

Gravely 015255

SG-TENS .091X.500X5.500
(Superseded to 08327500)

$

$

Not available

36

Gravely 044492

WLDMT,DETENT ROD
(Superseded to 08950900)

$

$

Not available

37

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 3 left!

0

38

Gravely 05424500

BRG-FLG LKNG-CLLR .75X1.85

$

$

Not available

39

Gravely 06000800

SCR-SET .25-20X.38 SKHCUP OH

$

$

Not available

40

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
