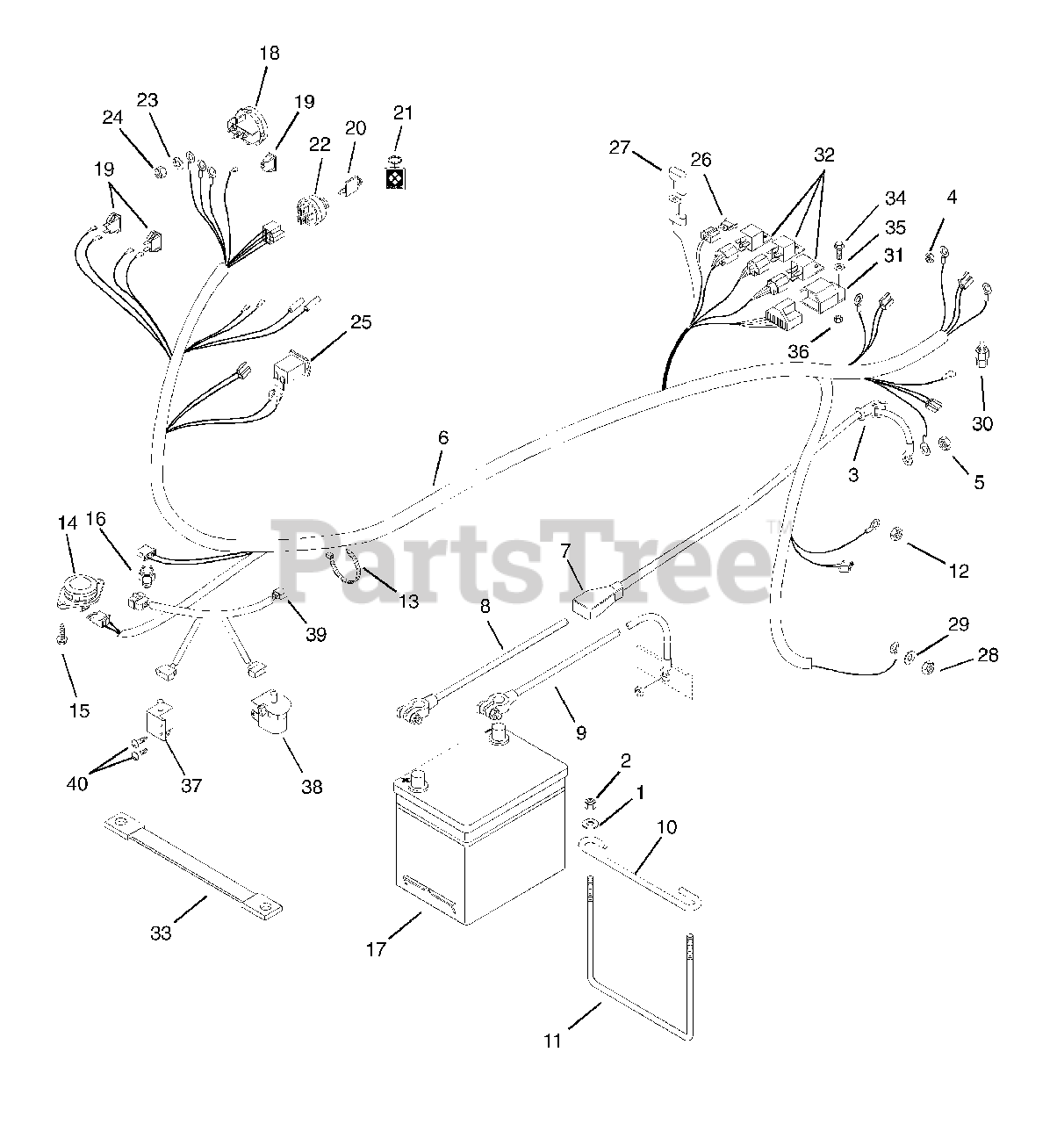

989057 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) Electrical System Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

Electrical System Parts Diagram

  • Title

1

Gravely 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

3

Gravely 03384700

BOOT, INSULATOR

$

$

Not available

4

Gravely 046364

NUT-HEX M5X.8 PL
(Superseded to 06522100)

$

$

Not available

5

Gravely 046363

NUT-HEX M8-1.25 YWZC
(Superseded to 06538600)

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 09093300

HARNESS, WIRING

$

$

Not available

7

Gravely 034466

CVR,BATTERY TERMINAL
(Superseded to 07523100)

$

$

Not available

8

Gravely 045019

CBL,POSITIVE CABLE
(Superseded to 08961100)

$

$

Not available

9

Gravely 045018

CBL,NEGATIVE BATTERY
(Superseded to 08961000)

$

$

Not available

10

Gravely 051098

ROD,HOLD DOWN
(Superseded to 09030300)

$

$

Not available

11

Gravely 050781

ROD,BATTERY
(Superseded to 09030200)

$257.99

$

Usually ships in 4-12 days

0

12

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

13

Gravely 041634

TIE WRAP, BLACK LG 7.31
(Superseded to 07519900)

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 045036

SEAT SWITCH
(Superseded to 03490500)

$16.99

$

In Stock, only 1 left!

0

15

Gravely 07411900

SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

$2.49

$

In Stock, Qty 12

0

16

Gravely 020916

SWITCH-NEUTRAL START N.O.
(Superseded to 02913100)

$46.99

$

In Stock, only 2 left!

0

17

Gravely 09044500

BATTERY, 24F-WET

$

$

Not available

18

Gravely 09080200

GAUGE, TEMPERATURE

$102.99

$

Usually ships in 4-12 days

0

19

Gravely 050673

LIGHT, INDICATOR (RED)
(Superseded to 05128700)

$7.99

$

In Stock, Qty 8

0

20

Gravely 21510400

IGNITION KEY SET

$10.99

$

In Stock, only 2 left!

0

21

Gravely 03490000

KEY CHAIN

$

$

Not available

22

Gravely 09056700

SWITCH, IGNITION (DIESEL)
(Superseded to 00168400)

Note: (Diesel)

$58.99

$

In Stock, only 4 left!

0

23

Gravely 06308100

WSHR-LK #10X.047 REG YWZC

$1.99

$

Usually ships in 4-12 days

0

24

Gravely 453248

NUT-HEX 10-32

$

$

Not available

25

Gravely 038256

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$25.99

$

In Stock, Qty 15

0

26

Fuse-30 Amp

$

$

Not available

27

Gravely 03081700

MOLDED DIODE PLUG 1 AMP

$29.99

$

In Stock, only 3 left!

0

28

Gravely 06528800

NUT-HEX M6X1.0 PL
(Superseded to 06500925)

$1.49

$

Usually ships in 4-12 days

0

29

Gravely 050365

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 09061200

TEMPERATURE SENDER

$

$

Not available

31

Gravely 09044200

MODULE,INTERLOCK,DELAY, 1801

$73.99

$

In Stock, only 4 left!

0

32

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

33

Gravely 09047600

GROUND STRAP

Note: (Engine to Frame)

$

$

Not available

34

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

35

Gravely 06442700

WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$1.49

$

Usually ships in 4-12 days

0

36

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 03657100

SWITCH- SINGLE POLE N.O.

$9.99

$

In Stock, Qty 18

0

38

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: (Model 306)

$9.99

$

In Stock, Qty 20+

0

39

Gravely 09064300

INSERT, PM-400 KUBOTA, CE CERT

Note: (Model 306)

$

$

Not available

40

Gravely 07411900

SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

Note: (Model 306)

$2.49

$

In Stock, Qty 12

0
