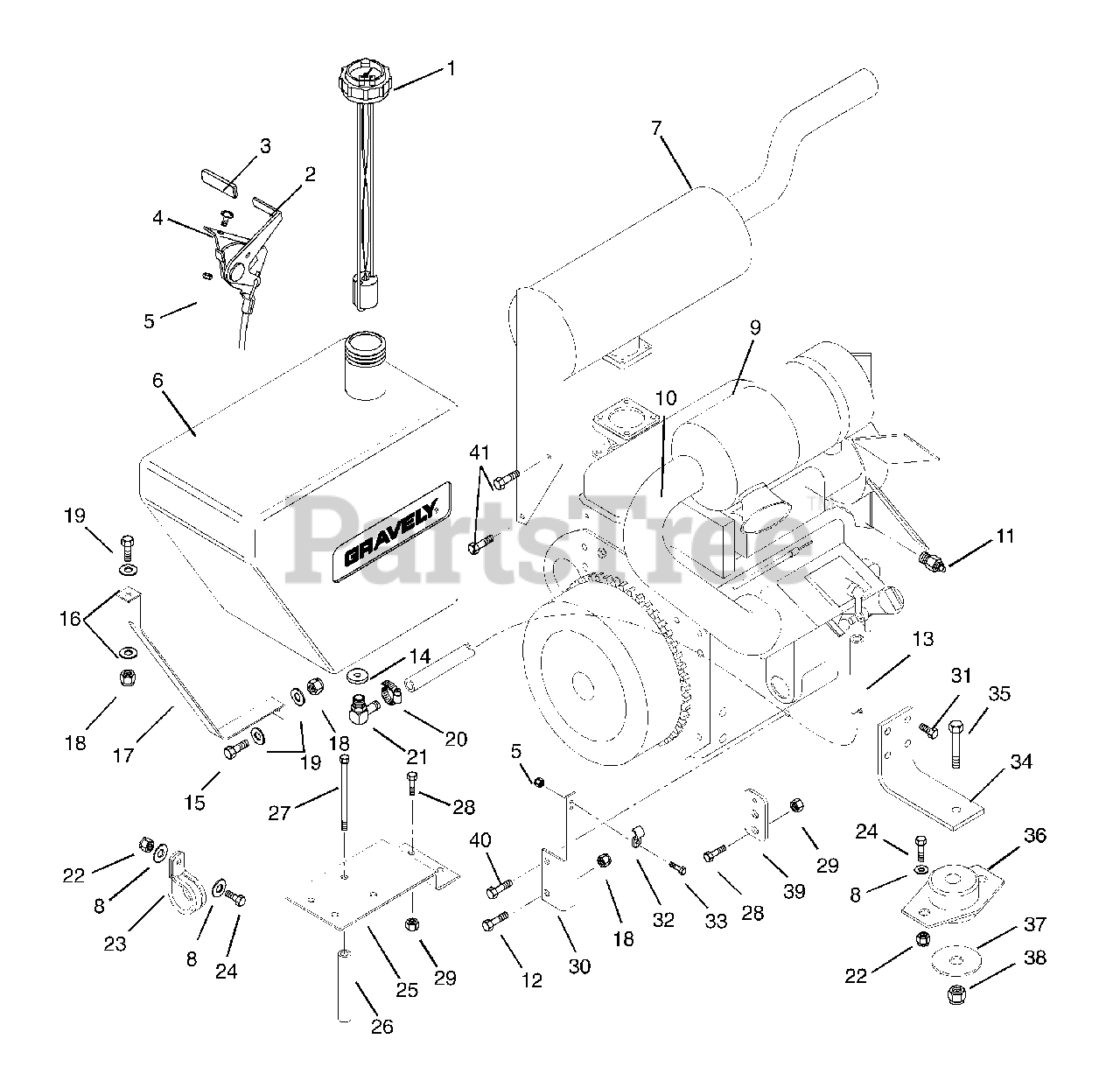

989057 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) Engine, Fuel And Exhaust Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

Engine, Fuel And Exhaust Parts Diagram

  • Title

1

Gravely 047615

GAUGE,FUEL
(Superseded to 08983200)

$

$

Not available

2

Gravely 06937500

THROTTLE CABLE, PM-400 KUBOTA

$

$

Not available

3

Gravely 07521500

GRIP

$

$

Not available

4

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 050663

TANK,FUEL
(Superseded to 09033100)

$

$

Not available

7

Gravely 09085900

MUFFLER, PM-400 KUBOTA

$

$

Not available

8

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 08243700

ENG, KUBOTA V1305B1

Note: (Includes Items 9-12)

$

$

Not available

10

Gravely 09063000

HOSE, AIR INTAKE

$

$

Not available

11

Gravely 09061200

TEMPERATURE SENDER

$

$

Not available

12

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 11

0

13

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 050246

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

$3.99

$

In Stock, Qty 20+

0

15

Gravely 05957200

BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.99

$

In Stock, Qty 19

0

16

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 050664

STRAP,GAS TANK
(Superseded to 08998500)

$

$

Not available

18

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

19

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 11

0

20

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$7.99

$

Usually ships in 4-12 days

0

21

Gravely 050722

FTG-TANK 1.37X.406 PL
(Superseded to 07023300)

$

$

Not available

22

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 050395

CLAMP, COUSHIONED STEEL REV
(Superseded to 06917900)

$15.99

$

Usually ships in 4-12 days

0

24

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 09045000

BRACKET, AIR CLEANER MOUNT

$

$

Not available

26

Gravely 09046400

SPACER .380X.625X4.00

$

$

Not available

27

Gravely 05961300

BLT-HEX M8 X 1.25X120

$

$

Not available

28

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

29

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 09044900

BRACKET, THROTTLE CABLE

$

$

Not available

31

Gravely 05972800

BLT-HEX M10-1.25X25 YWZC

$

$

Not available

32

Gravely 045242

CLIP
(Superseded to 06928000)

$4.99

$

Usually ships in 4-12 days

0

33

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

34

Gravely 09046600

MOUNT, ENGINE (KUBOTA 400)

$

$

Not available

35

Gravely 05925500

BLT-FL-SKH .50-13X1.0 GR2 SS

$

$

Not available

36

Gravely 07528500

MOUNT, ENGINE ISOLATOR

$

$

Not available

37

Gravely 044476

WSHR-SNUB-STL .53X2.38X.125
(Superseded to 06428100)

$

$

Not available

38

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

39

Gravely 09063600

CLIP, THROTTLE CABLE

$

$

Not available

40

Gravely 05960500

BLT-HEX M10 X 1.25X20 YWZC

$3.99

$

Usually ships in 4-12 days

0

41

Gravely 05964900

BLT, HEX M8-1.25X25 GR8.8YWZC

$2.99

$

Usually ships in 4-12 days

0

Gravely 21526000

ELEMENT, AIR CLEANER

$151.99

$

Usually ships in 4-12 days

0

Gravely 21526100

FILTER, OIL

$24.99

$

Usually ships in 4-12 days

0

Gravely 21526200

FILTER, FUEL

$33.99

$

Usually ships in 4-12 days

0
