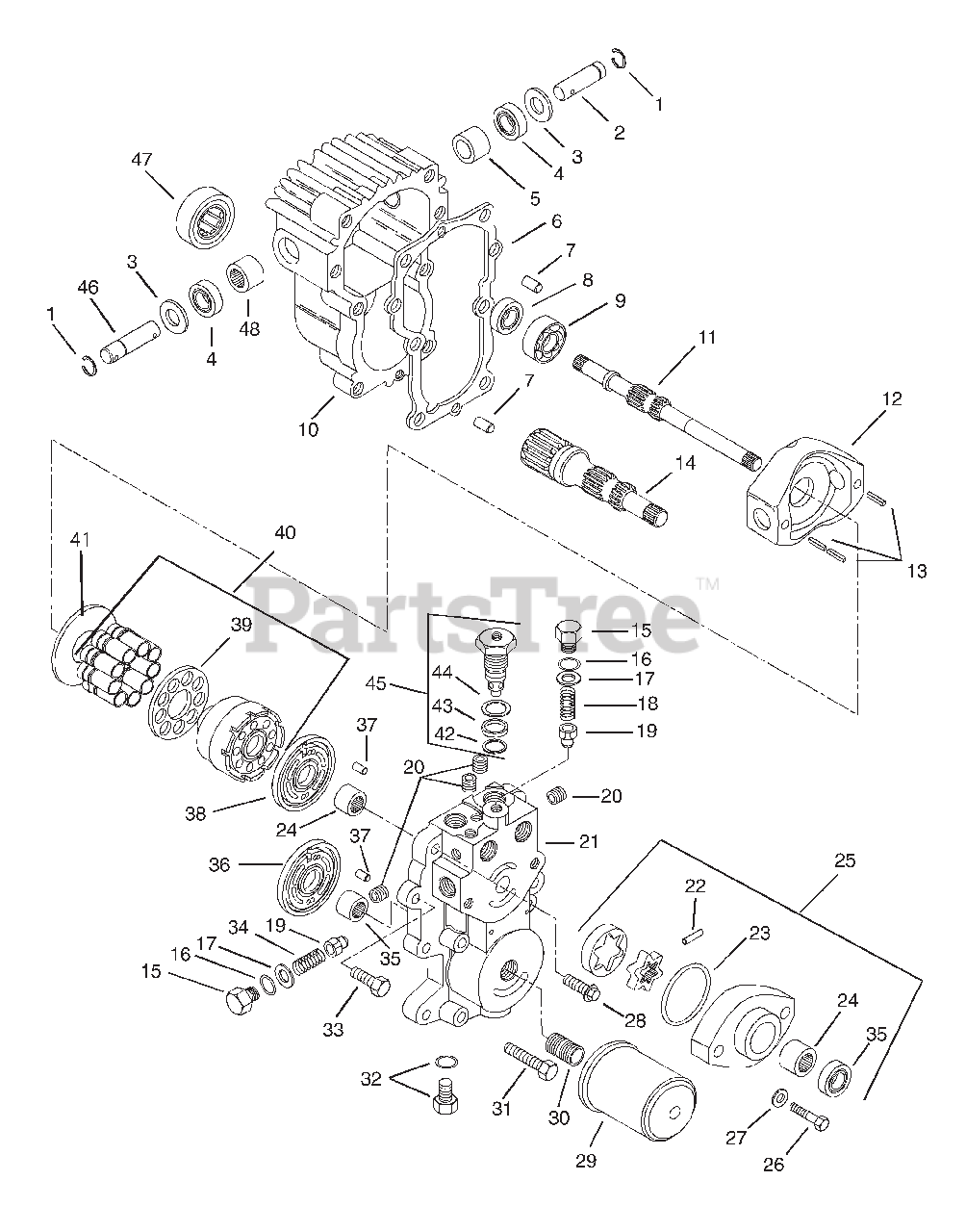

989057 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) Hydrostatic Transmission Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

Hydrostatic Transmission Parts Diagram

  • Title

1

Gravely 05706900

RG-RTNG-EXT .688X.042

$

$

Not available

2

Gravely 03161400

TRUNNION SHAFT

$61.99

$

Usually ships in 4-12 days

0

3

Gravely 06415100

WSHR-FL-STL .699X1.375X.059

$

$

Not available

4

Gravely 05608900

SEAL .625X1.187X.187

$26.99

$

In Stock, only 1 left!

0

5

Gravely 20000200

JOURNAL BEARING

$

$

Not available

6

Gravely 03162900

GASKET

$

$

Not available

7

Gravely 03163200

DOWEL PIN

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 05615000

SEAL
(Superseded to 05613800)

$14.99

$

In Stock, only 2 left!

0

9

Gravely 05432800

BRG-BALL

$

$

Not available

10

Gravely 58901200

HOUSING ASSEMBLY KIT

$

$

Not available

11

Gravely 20000300

SHAFT, PUMP

$

$

Not available

12

Gravely 03054400

SWASHPLATE VARIABLE

$

$

Not available

13

Gravely 05806200

PIN-ROLL .188X.63

$6.49

$

Usually ships in 4-12 days

0

14

Gravely 20000400

SHAFT, MOTOR

$

$

Not available

15

Gravely 03161100

PLUG-HEX HEAD

$

$

Not available

16

Gravely 05608800

O-RING .414X.562X.072

$

$

Not available

17

Gravely 039294

SHIM PACKAGE
(Superseded to 03161300)

$83.99

$

Usually ships in 4-12 days

0

18

Gravely 08322200

SG-COMP ??X??X?? SUNSTRAND

$

$

Not available

19

Gravely 03160900

RELIEF VALVE CONE

$34.99

$

Usually ships in 4-12 days

0

20

Gravely 03163000

PIPE PLUG

$

$

Not available

21

Gravely 03074800

CENTER SECTION

$

$

Not available

22

Gravely 03074900

PIN

$

$

Not available

23

Gravely 05609200

O-RING 2.364X2.504X.072

$10.99

$

Usually ships in 4-12 days

0

24

Gravely 05432900

BRG-NEEDLE

$

$

Not available

25

Gravely 58901400

CHARGE PUMP ASSEMBLY KIT

$

$

Not available

26

Gravely 05912600

BLT-HEX .44-14X2.00 GR5

$

$

Not available

27

Gravely 06415300

WSHR-FL-STL .469X.719X.108

$

$

Not available

28

Gravely 05917900

SCR-12PNT .38-16X1.25 GR5

$

$

Not available

29

Gravely 03192800

OIL FILTER

$28.99

$

In Stock, only 2 left!

0

30

Gravely 03161800

UNION

$

$

Not available

31

Gravely 05914700

BLT-HEX .38-16X2.00 PL GR5
(Superseded to 05963300)

$3.49

$

In Stock, Qty 20+

0

32

Gravely 03160800

THREADED PLUG

$13.99

$

Usually ships in 4-12 days

0

33

Gravely 05915100

BLT-HEX .38-16X1.50 PL GR5
(Superseded to 05957900)

$1.99

$

In Stock, Qty 17

0

34

Gravely 08315700

SG-COMP ??X??X?? SUNSTRAND

$

$

Not available

35

Gravely 05615200

SEAL

$9.99

$

Usually ships in 4-12 days

0

36

Gravely 03162100

MOTOR VALVE PLATE

$

$

Not available

37

Gravely 03163300

DOWEL PIN

$

$

Not available

38

Gravely 03083600

VALVE PLATE

$

$

Not available

39

Gravely 03020500

SLIPPER RETAINER

$52.99

$

Usually ships in 4-12 days

0

40

Gravely 53103500

CYLINDER BLOCK KIT

$

$

Not available

41

Gravely 03054200

THRUST PLATE

$52.99

$

Usually ships in 4-12 days

0

42

Gravely 05609700

O-RING .614X.750X.070

$10.99

$

Usually ships in 4-12 days

0

43

Gravely 05609800

O-RING .614X.750X.046

$22.99

$

Usually ships in 4-12 days

0

44

Gravely 05609600

O-RING .770X.968X.097

$6.49

$

Usually ships in 4-12 days

0

45

Gravely 58901300

CHECK VALVE ASSEMBLY KIT

$

$

Not available

46

Gravely 03161500

TRUNNION SHAFT

$92.99

$

Usually ships in 4-12 days

0

47

Gravely 05430400

BRG-ROLLER

$

$

Not available

48

Gravely 05412600

BRG-NEEDLE .688X.876X.63

$

$

Not available
