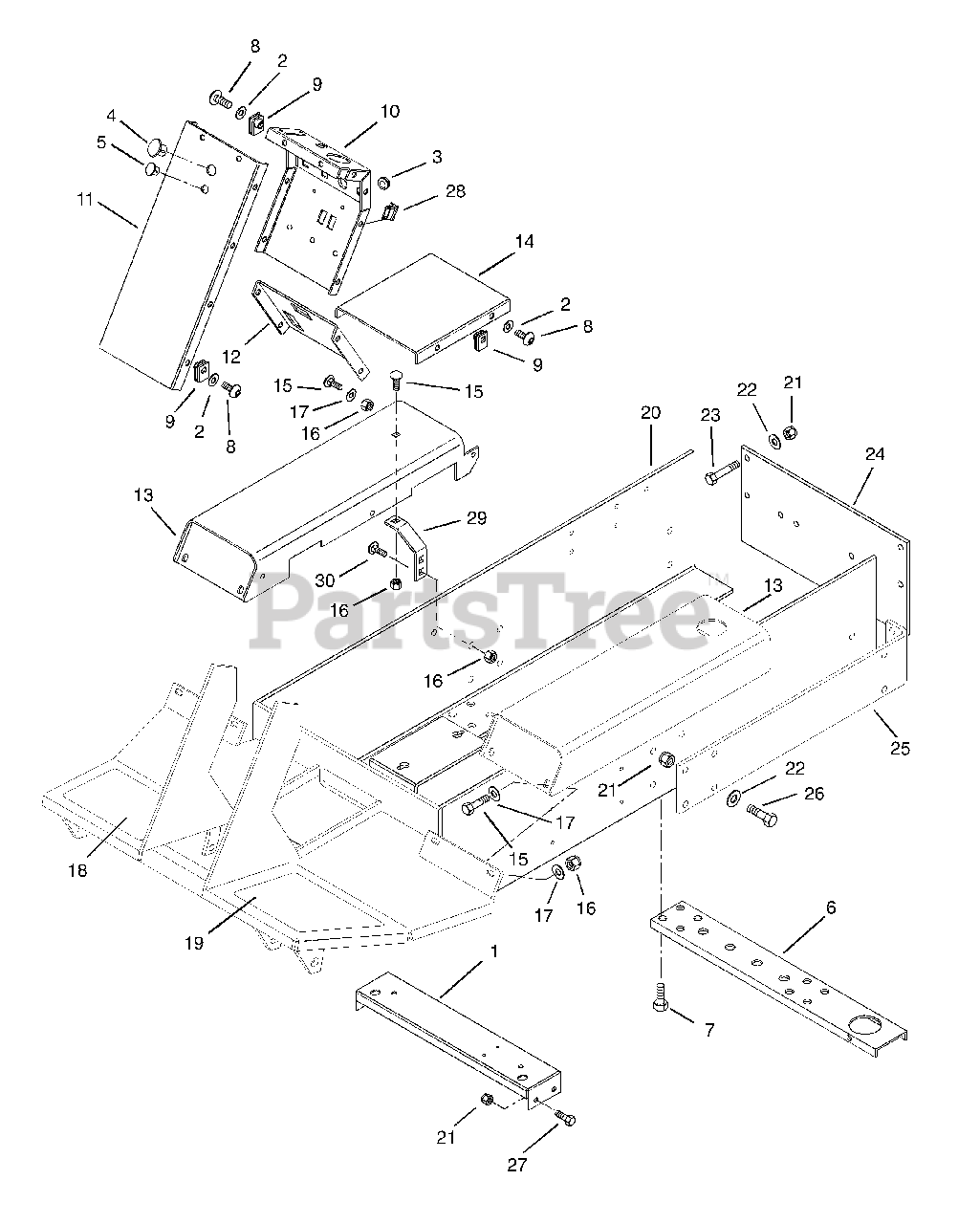

989057 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) Main Frame Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

Main Frame Parts Diagram

  • Title

1

Gravely 045147

Bracket, Deck Plate
(Superseded to 08964700)

$

$

Not available

2

Gravely 06437300

Washer-Flat-Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

3

Gravely 036485

Grommet .062 x .312
(Superseded to 07502600)

$

$

Not available

4

Gravely 07508500

Hole Plug

$

$

Not available

5

Gravely 07536300

Hole Plug

$

$

Not available

6

Gravely 050665

Brace, Frame
(Superseded to 08998600)

$

$

Not available

7

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.99

$

In Stock, Qty 16

0

8

Gravely 06114400

Screw-Machine .25-20 X .75

$1.49

$

In Stock, only 2 left!

0

9

Gravely 032369

Nut-Retainer .25-20 x .56
(Superseded to 07009000)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 09091551

Panel, Instrument

$

$

Not available

11

Gravely 046394

Panel, Front
(Superseded to 08978500)

$

$

Not available

12

Gravely 09092851

Panel, Brake Lock

$

$

Not available

13

Gravely 09092753

Weldment, Fender Right Hand

$

$

Not available

13

Gravely 09091353

Weldment, Fender Left Hand

$

$

Not available

14

Gravely 08966600

Panel, Access

$

$

Not available

15

Gravely 06223900

Bolt-Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.99

$

In Stock, only 4 left!

0

16

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 046369

Cover, Right Hand Foot
(Superseded to 08964600)

$14.99

$

Usually ships in 4-12 days

0

19

Gravely 046368

Cover, Left Hand Foot
(Superseded to 08964000)

$14.99

$

Usually ships in 4-12 days

0

20

Gravely 09090453

Weldment, Frame

$

$

Not available

21

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$4.99

$

In Stock, Qty 16

0

22

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

23

Gravely 05962600

Bolt-Hex .50-13 x 1.50 Grade 5

$

$

Not available

24

Gravely 051204

Plate, Bumper-22 lbs
(Superseded to 09003100)

Note: (Part No. 09054700 Plate, Bumper-37 lbs, can be added)

$

$

Not available

25

Gravely 09046500

Bumper, Kubota Frame

$

$

Not available

26

Gravely 05958900

Bolt-Hex .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

In Stock, Qty 12

0

27

Gravely 05947100

Bolt-Hex .50-13 x 1 Grade 5
(Superseded to 05901715)

$2.99

$

In Stock, Qty 7

0

28

Gravely 03657000

Cover, Switch
(Superseded to 00539300)

$10.99

$

Usually ships in 4-12 days

0

29

Gravely 09093551

Support, Fender

$

$

Not available

30

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

Gravely 09054700

Plate, Bumper-37 lbs
(Superseded to 00172000)

$303.99

$

Usually ships in 4-12 days

0
