989057 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) Power Steering Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

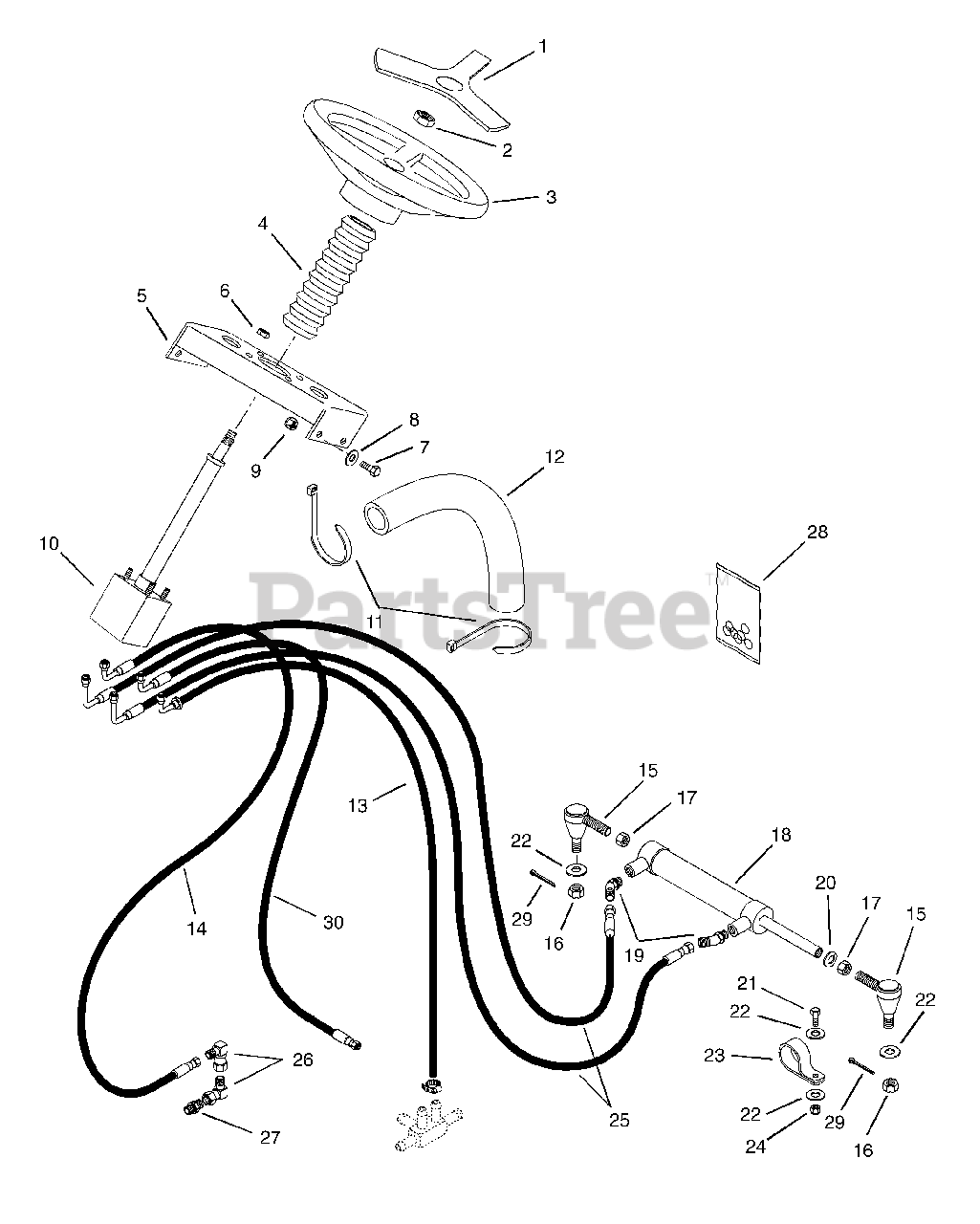

Power Steering Parts Diagram

  • Title

1

Gravely 09088100

Cap, Steering Wheel

$

$

Not available

2

Gravely 06535600

Nut-Hex .62-11

$2.99

$

Usually ships in 4-12 days

0

3

Gravely 09088000

Steering Wheel
(Superseded to 03964990)

$108.99

$

Usually ships in 4-12 days

0

4

Gravely 047311

Steering Column Boot
(Superseded to 08739200)

$

$

Not available

5

Gravely 09093453

Bracket, Steering Pump

$

$

Not available

6

Gravely 06537000

Nut-Locking-Center .31-24

$1.49

$

In Stock, only 3 left!

0

7

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

8

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

9

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 09093200

Power Steering Unit

$

$

Not available

11

Gravely 041634

Tie Wrap, Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 052780

Sleeve 12"
(Superseded to 09011400)

$

$

Not available

13

Gravely 046382

Assembly, Hydraulic Hose
(Superseded to 08978200)

$

$

Not available

14

Gravely 046381

Assembly, Hydraulic Hose
(Superseded to 08978100)

$51.99

$

Usually ships in 4-12 days

0

15

Gravely 09093100

Ball Socket-Right Hand

$

$

Not available

16

Gravely 06541200

Nut-Castle .38-24

$

$

Not available

17

Gravely 06539500

Nut-Jam .50-20

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 044583

Cylinder, Steering
(Superseded to 04935800)

$559.99

$

In Stock, only 1 left!

0

19

Gravely 018829

Adapter
(Superseded to 08901200)

$21.99

$

Usually ships in 4-12 days

0

20

Gravely 06307300

Washer-Locking .50 X .125
(Superseded to 06300115)

$1.49

$

In Stock, Qty 18

0

21

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 045279

Clamp, Nylon
(Superseded to 06939900)

$

$

Not available

24

Gravely 06529600

Nut-Locking-Nylon .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 09061600

Hydraulic Hose Assembly

$

$

Not available

26

Gravely 018818

Adapter
(Superseded to 08901000)

$20.99

$

Usually ships in 4-12 days

0

27

Gravely 019167

Adapter-Pipe .56-18 "O" Ring To .56-18
(Superseded to 07017500)

$11.99

$

In Stock, only 2 left!

0

28

Gravely 58900600

Repair Kit, Power Steering

$

$

Not available

29

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 5

0

30

Gravely 09071600

Assembly, Hydraulic Hose (Steering to Valve)

Note: (Steering to Valve)

$

$

Not available
