989057 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) PTO Control Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

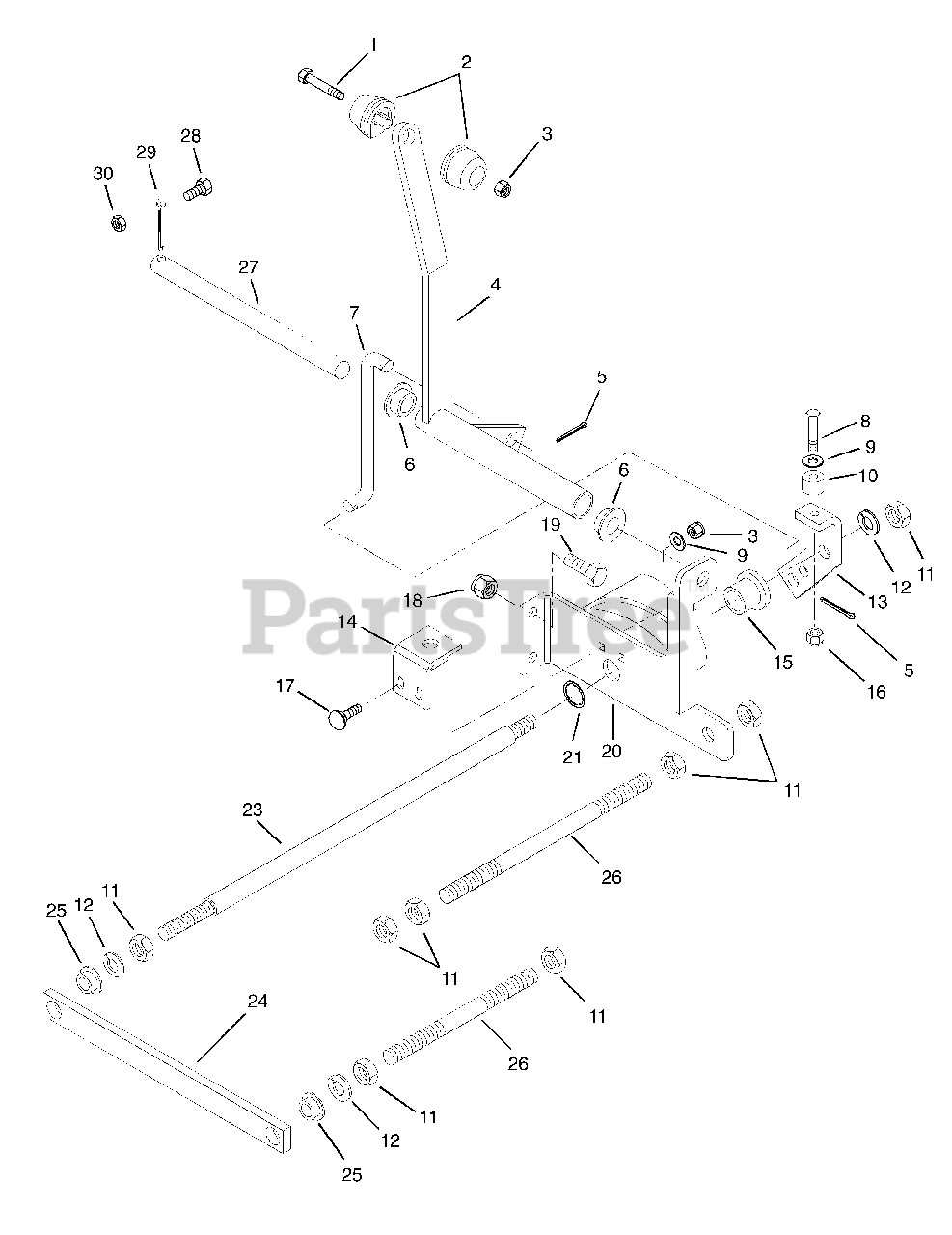

PTO Control Parts Diagram

  • Title

1

Gravely 05952500

Bolt-Hex .25-20 x 1.50 Grade 5
(Superseded to 05901739)

$1.99

$

In Stock, only 4 left!

0

2

Gravely 041941

Knob, Control
(Superseded to 07527100)

$

$

Not available

3

Gravely 06526700

Nut-Locking-Center .25-20
(Superseded to 06535300)

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 09091151

Weldment, PTO Control

$

$

Not available

5

Gravely 06707000

Pin-Cotter .09 x 1.0
(Superseded to 121224)

$0.99

$

In Stock, Qty 9

0

6

Gravely 034738

Bushing-Flange .515 x .750 x .745 x 1.00
(Superseded to 05521100)

$2.99

$

In Stock, Qty 10

0

7

Gravely 045065

Rod, PTO
(Superseded to 09029200)

$

$

Not available

8

Gravely 05947400

Bolt-Hex .25-20 x 1.25 Grade 5
(Superseded to 05901738)

$2.49

$

In Stock, Qty 7

0

9

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

10

Gravely 06425200

Roller-Clutch Cam .250 x .750 x .5625

$

$

Not available

11

Gravely 06537300

Nut-Hex .50-13
(Superseded to 06500814)

$4.99

$

Usually ships in 4-12 days

0

12

Gravely 06306600

Washer-Lock .500 x .151
(Superseded to 06300117)

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 09091853

Arm, PTO Clutch Roller

$

$

Not available

14

Gravely 045067

Bracket, Interlock
(Superseded to 08962500)

$

$

Not available

15

Gravely 010174

Bushing-Flange .762 x 1.00 x .580 x 1.48
(Superseded to 05518400)

$5.49

$

In Stock, Qty 20+

0

16

Gravely 06529700

Nut-Locking-Nylon .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06219900

Bolt-Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$1.49

$

Usually ships in 4-12 days

0

18

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 09091053

Weldment, PTO Bracket

$

$

Not available

21

Gravely 05717300

Ring-Retaining-External 1.31 x .05

$

$

Not available

22

Gravely 040207

Rod, Lift
(Superseded to 08655000)

$

$

Not available

23

Gravely 045022

Rod, PTO
(Superseded to 08961300)

$

$

Not available

24

Gravely 045005

Spring, PTO
(Superseded to 08960951)

$

$

Not available

25

Gravely 040305

Bushing-Flange .500 x .875 x .700
(Superseded to 08715700)

$35.99

$

Usually ships in 4-12 days

0

26

Gravely 045052

Stud, PTO
(Superseded to 09029100)

$63.99

$

Usually ships in 4-12 days

0

27

Gravely 09090500

Shaft, Control

$

$

Not available

28

Gravely 05947700

Bolt-Hex .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.99

$

In Stock, Qty 8

0

29

Gravely 06713100

Pin-Cotter .25 x 2.00
(Superseded to 06700213)

$4.99

$

Usually ships in 4-12 days

0

30

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0
