989057 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) Steering Axle Assembly Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

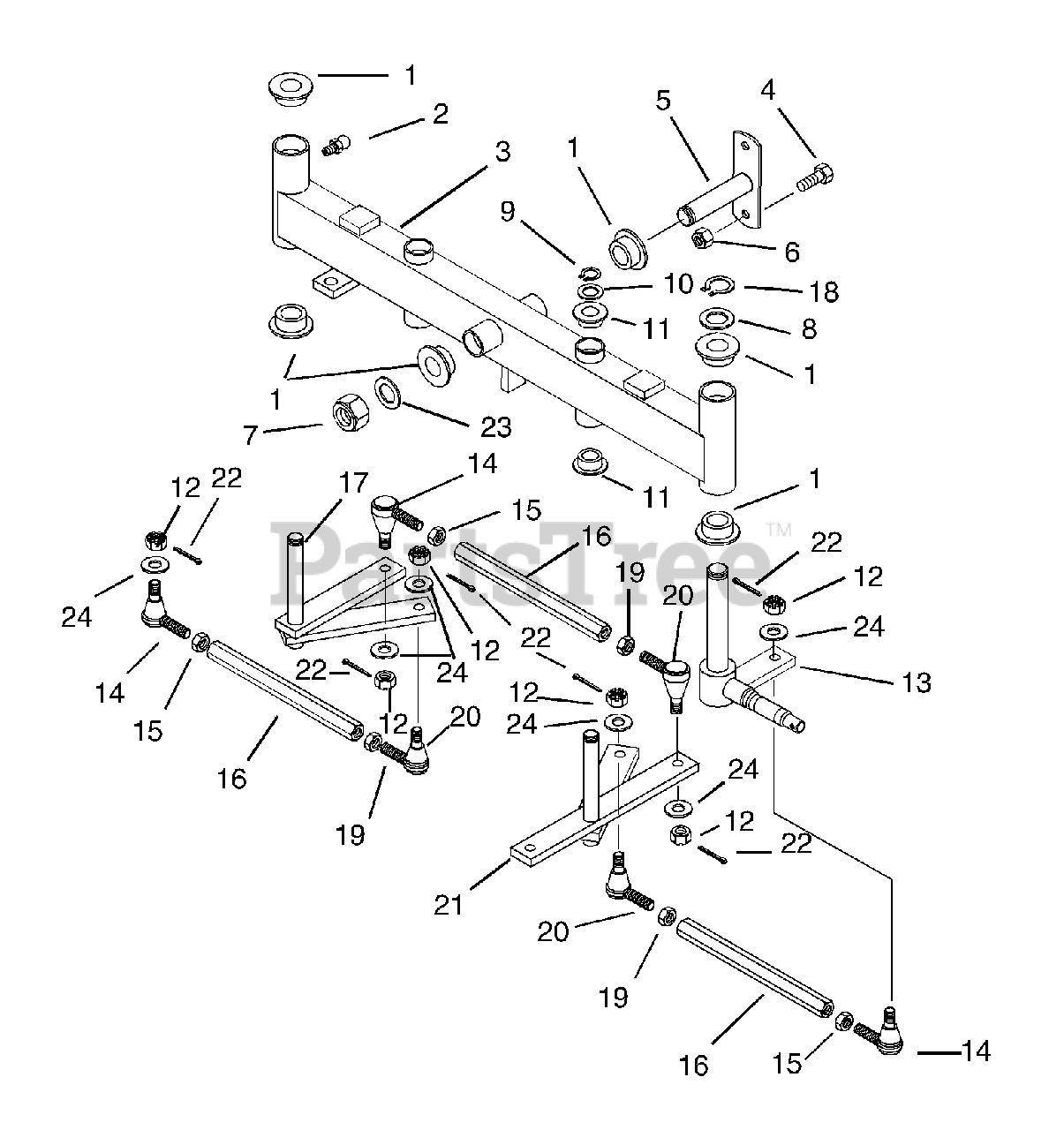

Steering Axle Assembly Parts Diagram

  • Title

1

Gravely 018355

Bushing-Flange 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$10.99

$

In Stock, Qty 20+

0

2

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

3

Gravely 09092251

Weldment, Axle

$

$

Not available

4

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 09080700

Weldment, Axle Pin

$

$

Not available

6

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06538400

Nut-Locking 1.0-14
(Superseded to 00181818)

$9.49

$

In Stock, only 1 left!

0

8

Gravely 06435300

Washer-Hardened Thrust 1.00 X 1.55 X .03

$4.99

$

In Stock, only 4 left!

0

9

Gravely 026300

Ring-Retaining-External .689 x .077
(Superseded to 05714600)

$2.49

$

In Stock, Qty 5

0

10

Gravely 036407

Bearing-Needle-Thrust .752 x 1.24 x .031
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

11

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

12

Gravely 06541200

Nut-Castle .38-24

$

$

Not available

13

Gravely 09097851

Weldment, Kingpin Left Hand

$

$

Not available

13

Gravely 09097951

Weldment, Kingpin Right Hand

$

$

Not available

14

Gravely 09093100

Ball Socket - Right Hand

$

$

Not available

15

Gravely 06539500

Nut-Jam .50-20 Grade 2

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 051085

Rod, Tie
(Superseded to 09002400)

$

$

Not available

17

Gravely 09092551

Weldment, Steering Idler

$

$

Not available

18

Gravely 05712300

Ring, Retaining External .906 x .078
(Superseded to 05707300)

$2.99

$

Usually ships in 4-12 days

0

19

Gravely 06538300

Nut-Jam .50-20 Left Hand Grade 2

$8.99

$

In Stock, only 2 left!

0

20

Gravely 09093000

Ball Socket - Left Hand

$

$

Not available

21

Gravely 09092651

Weldment, Steering Arm

$

$

Not available

22

Gravely 06706900

Pin, Cotter .09 x .75

$0.99

$

In Stock, Qty 5

0

23

Gravely 06443000

Washer-Flat-Steel 1.062 x 2.0 x .134
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

24

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
