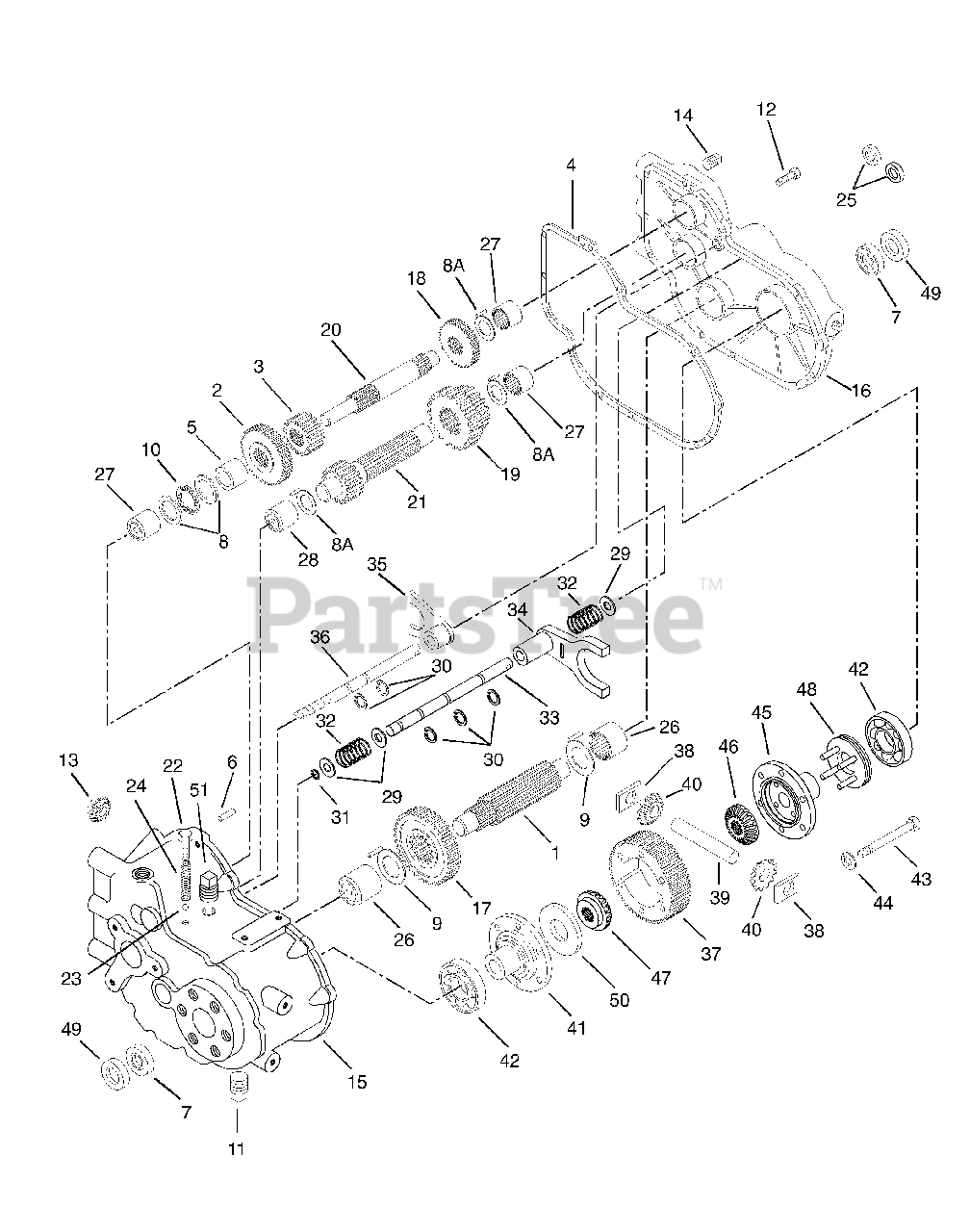

989057 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) Transaxle With Differential Lock Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

Transaxle With Differential Lock Parts Diagram

  • Title

1

Gravely 776120

Pinion, Output

$

$

Not available

2

Gravely 778087

Gear, Bevel (30 teeth)

Note: (30 teeth)

$

$

Not available

3

Gravely 778088

Gear, Spur (16 teeth)

Note: (16 teeth)

$

$

Not available

4

Gravely 788058

Gasket, Case & Cover

$

$

Not available

5

Gravely 786094

Spacer, (1-5/8" O.D. x 1-1/64" I.D. x 55/64" thick)

Note: (1-5/8" O.D. x 1-1/64" I.D. x 55/64" thick)

$

$

Not available

6

Gravely 786026

Pin. Dowel

$

$

Not available

7

Gravely 788049

Seal, Oil

$

$

Not available

8

Gravely 780045

Washer, Thrust (1.542 O.D. x 1.007 I.D. x .060 thick)

Note: (1.542 O.D. x 1.007 I.D. x .060 thick)

$

$

Not available

8A

Gravely 780157

Washer, Thrust (1.687 O.D. x 1.007 I.D. x .0575) (tabbed)

Note: (1.687 O.D. x 1.007 I.D. x .0575) (tabbed)

$

$

Not available

9

Gravely 780156

Washer, Thrust (2.187 O.D. x 1.257 I.D. x .0575) (tabbed)

Note: (2.187 O.D. x 1.257 I.D. x .0575) (tabbed)

$

$

Not available

10

Gravely 780012

Bearing, Thrust

$

$

Not available

11

Gravely 792019

Plug, Magnetic Drain, 3/8-18

$

$

Not available

12

Gravely 792067

Screw, Machine .31 -18 x 1 Self Tapping Hex Washer Head

$

$

Not available

13

Gravely 778155

Pinion, Bevel

$

$

Not available

14

Gravely 792039

Plug, Pipe, 1/8-27

$

$

Not available

15

Gravely 770073A

Case Assembly., Transaxle

Note: (Includes. Nos. 22, 26, 27, 28 & 51)

$

$

Not available

16

Gravely 772086

Cover, Assembly., Transaxle

Note: (Includes. Nos. 26 & 27)

$

$

Not available

17

Gravely 778098

Gear, Output (37 teeth)

Note: (37 teeth)

$

$

Not available

18

Gravely 778096

Gear, Spur (23 teeth)

Note: (23 teeth)

$

$

Not available

19

Gravely 778097

Gear, Cluster (20 & 27 teeth)

Note: (20 & 27 teeth)

$

$

Not available

20

Gravely 776209

Shaft, Counter

$

$

Not available

21

Gravely 776212

Shaft & Gear Shifter

$

$

Not available

22

Gravely 792100

Screw, Hex Flanged Head 1/4-20 x 5/8

$

$

Not available

23

Gravely 792004

Ball, Steel, 3/16"

$

$

Not available

24

Gravely 792003

Spring, Shifter Fork

$

$

Not available

25

Gravely 788034

Seal, Oil

$

$

Not available

26

Gravely 780099

Bearing, Needle

$

$

Not available

27

Gravely 780100

Bearing, Needle

$

$

Not available

28

Gravely 780126

Bearing, Needle

$

$

Not available

29

Gravely 780070

Washer, Thrust .917 O.D. x .507 I.D. x .060

$

$

Not available

30

Gravely 792064

Ring, Retaining

$

$

Not available

31

Gravely 792099

Ring, Retaining

$

$

Not available

32

Gravely 792102

Spring, Compression

$

$

Not available

33

Gravely 784327

Rod, Shift (Differential Lock)

Note: (Differential Lock)

$

$

Not available

34

Gravely 784328

Fork, Shift

$

$

Not available

35

Gravely 784195

Fork, Shift

$

$

Not available

36

Gravely 784326

Rod, Shift (Hi-Low)

Note: (Hi-Low)

$

$

Not available

37

Gravely 778156

Gear, Ring

$

$

Not available

38

Gravely 786098

Block, Drive

$

$

Not available

39

Gravely 786096

Pin, Drive

$

$

Not available

40

Gravely 778157

Pinion, Bevel

$

$

Not available

41

Gravely 774486A

Carrier, Differential

Note: (Includes. No. 50)

$

$

Not available

42

Gravely 780125

Bearing, Ball

$

$

Not available

43

Gravely 792101

Screw, Hex Flanged Head., 3/8-16 x 2-3/4

$

$

Not available

44

Gravely 792011

Washer-Locking, 3/8"

$

$

Not available

45

Gravely 774487

Carrier, Differential

$

$

Not available

46

Gravely 778159

Gear, Bevel

$

$

Not available

47

Gravely 778158

Gear, Bevel

$

$

Not available

48

Gravely 784325A

Collar Assembly, Shift

$

$

Not available

49

Gravely 786097

Spacer (2-1/8" O.D. x 1-5/32 I.D. x 3/8" thick)

Note: (2-1/8" O.D. x 1-5/32 I.D. x 3/8" thick)

$

$

Not available

50

Gravely 780130

Washer, Thrust

$

$

Not available

51

Gravely 792010

Plug, 3/8-18 Square Head Pipe

$

$

Not available
