989057 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) Wheels Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

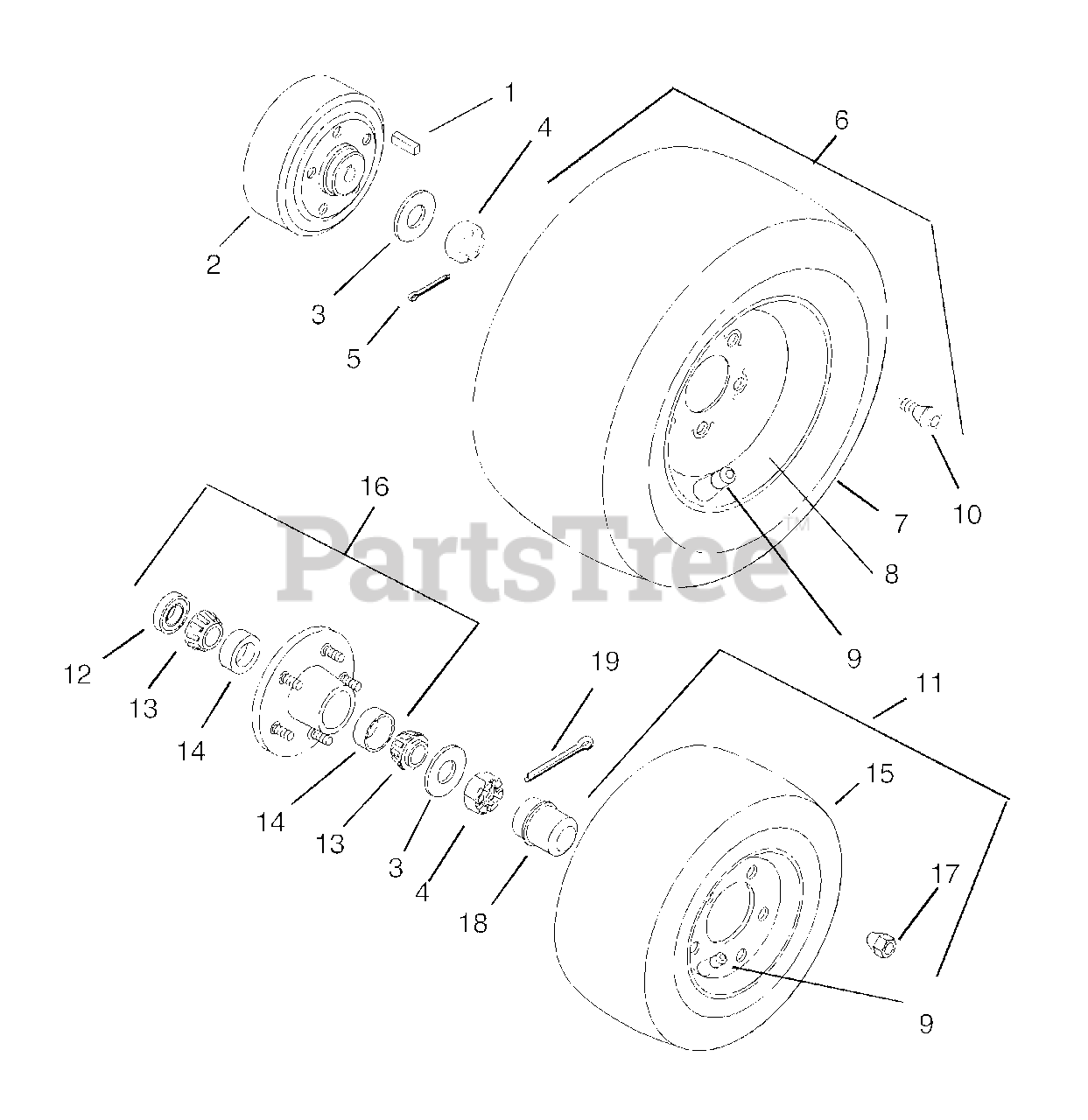

Wheels Parts Diagram

  • Title

1

Gravely 06601000

KEY-FTHR .25X1.875X.25 SAE

$5.49

$

Usually ships in 4-12 days

0

2

Gravely 09091651

HUB
(Superseded to 09091600)

$435.99

$

Usually ships in 4-12 days

0

3

Gravely 06439000

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06538700

NUT-SL .75-16 YWZC

$6.99

$

Usually ships in 4-12 days

0

5

Gravely 06712800

PIN-CTR .18X1.50 EXTPRSQCT YZ

$2.49

$

In Stock, only 2 left!

0

6

Gravely 07150100

ASSY, TIRE & WHEEL, 23X10.5-12

Note: (Contains One each of Items 7, 8, 9)

$

$

Not available

7

Gravely 07149000

TIRE 23X10.50-12 MULTITRAC C/S

$

$

Not available

8

Gravely 07151100

WHL, 10.50-12

$

$

Not available

9

Gravely 011191

VALVE STEM ASS'Y
(Superseded to 07520000)

$2.99

$

In Stock, only 1 left!

0

10

Gravely 07014600

BLT-LUG .50-20X.75X1.62 PL
(Superseded to 07000143)

$3.99

$

In Stock, Qty 20+

0

11

Gravely 07154000

ASSY, TIRE & WHEEL

$

$

Not available

12

Gravely 038920

SEAL
(Superseded to 20655500)

$12.99

$

Usually ships in 4-12 days

0

13

Gravely 038110

BRG-CONE 1.0X.58
(Superseded to 05406900)

$20.99

$

In Stock, Qty 20+

0

14

Gravely 038109

BRG-CUP1.980X.420
(Superseded to 05407000)

$18.99

$

In Stock, Qty 20+

0

15

Gravely 07151400

TIRE, 16X7.50-8
(Superseded to 07154000)

$

$

Not available

16

Gravely 07153900

ASSY, HUB
(Superseded to 07153800)

$174.99

$

Usually ships in 4-12 days

0

17

Gravely 06542800

.50-20 UNF 2BTHD,RH

$

$

Not available

18

Gravely 20655400

CAP,DUST

$10.99

$

In Stock, Qty 20+

0

19

Gravely 06712600

PIN-CTR .12X1.25 EXTPRSQCT YZ
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 07153800

ASSY, TIRE, WHEEL & HUB

Note: (Contains One Each of Items 11, & 16)

$174.99

$

Usually ships in 4-12 days

0
