989057 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) Wiring Diagram Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

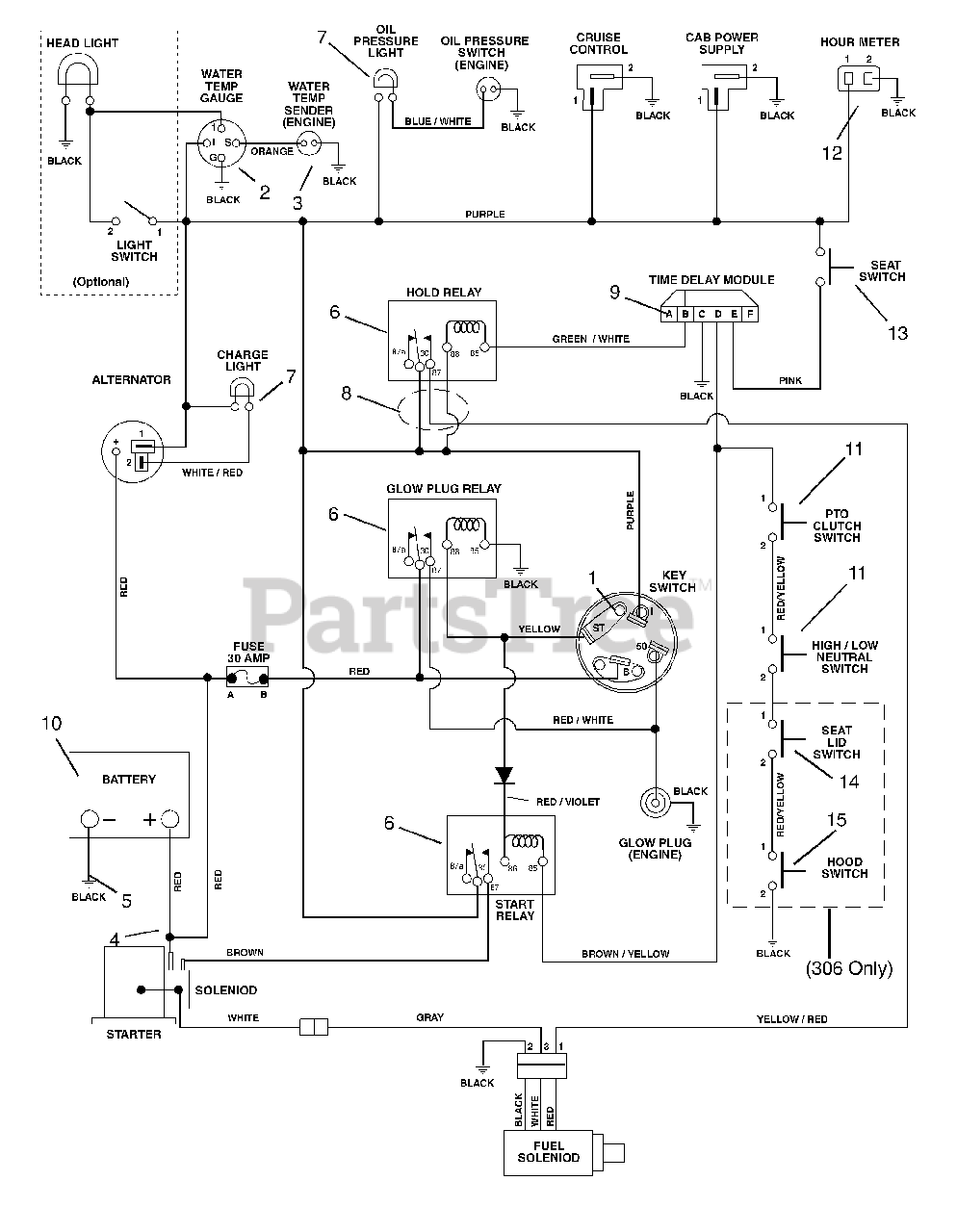

Wiring Diagram Parts Diagram

  • Title

1

Gravely 09056700

SWITCH, IGNITION (DIESEL)
(Superseded to 00168400)

Note: (Diesel)

$58.99

$

In Stock, only 4 left!

0

2

Gravely 09080200

GAUGE, TEMPERATURE

$102.99

$

Usually ships in 4-12 days

0

3

Gravely 09061200

TEMPERATURE SENDER

$

$

Not available

4

Gravely 045019

CBL,POSITIVE CABLE
(Superseded to 08961100)

$

$

Not available

5

Gravely 045018

CBL,NEGATIVE BATTERY
(Superseded to 08961000)

$

$

Not available

6

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

7

Gravely 050673

LIGHT, INDICATOR (RED)
(Superseded to 05128700)

$7.99

$

In Stock, Qty 8

0

8

Gravely 09093300

HARNESS, WIRING

$

$

Not available

9

Gravely 09044200

MODULE,INTERLOCK,DELAY, 1801

$73.99

$

In Stock, only 4 left!

0

10

Gravely 09044500

BATTERY, 24F-WET

$

$

Not available

11

Gravely 020916

SWITCH-NEUTRAL START N.O.
(Superseded to 02913100)

$46.99

$

In Stock, only 2 left!

0

12

Gravely 038256

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$25.99

$

In Stock, Qty 15

0

13

Gravely 045036

SEAT SWITCH
(Superseded to 03490500)

$16.99

$

In Stock, only 1 left!

0

14

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: (Model 306)

$9.99

$

In Stock, Qty 20+

0

15

Gravely 03657100

SWITCH- SINGLE POLE N.O.

Note: (Model 306)

$9.99

$

In Stock, Qty 18

0
