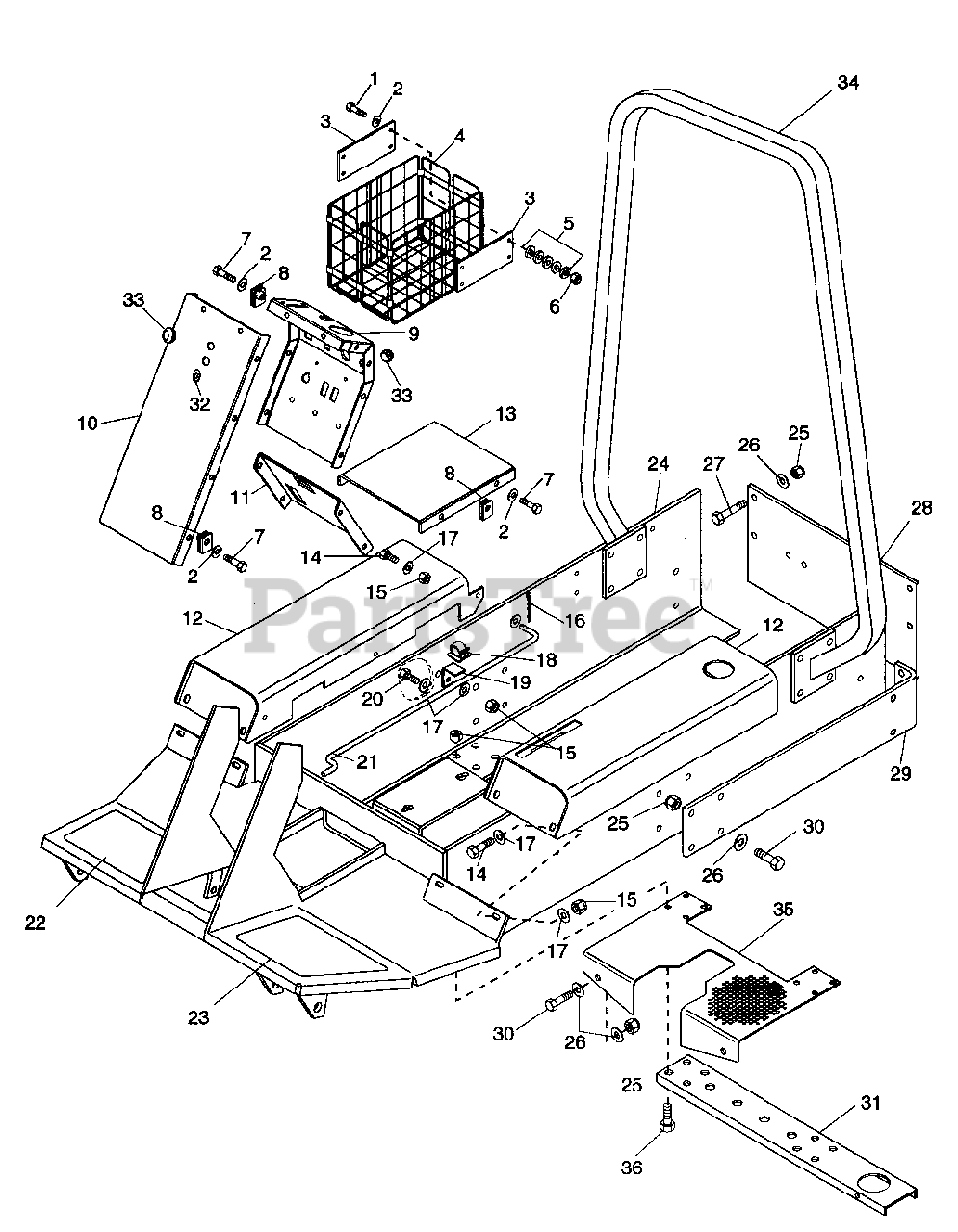

989300 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 31hp Yanmar (SN: 000101 & Above) MAIN FRAME Parts Diagram

Pro-Master Zero-Turn Mower, 31hp Yanmar

MAIN FRAME Parts Diagram

  • Title

1

Gravely 180034

BLT-HEX .25-20 X 1.50 PL GR 5
(Superseded to 05901739)

$1.49

$

In Stock, Qty 8

0

2

Gravely 120392

WSHR-FL-STL .563 X .375 X .109
(Superseded to 06401001)

$0.99

$

In Stock, Qty 16

0

3

Gravely 046236

STRP-BASKET
(Superseded to 08976600)

$

$

Not available

4

Gravely 046247

BASKET
(Superseded to 08976700)

$

$

Not available

5

Gravely 011772

WSHR-FRICTION .750 X .256 X .100
(Superseded to 06431500)

$13.99

$

Usually ships in 4-12 days

0

6

Gravely 419454

NUT-LK-NYL .250-20 PL
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

7

Gravely 160541

SCR-MCH .25-20 PAN HD
(Superseded to 06113500)

$1.99

$

In Stock, only 3 left!

0

8

Gravely 032369

NUT-RTNR .25-20 X .56
(Superseded to 07009000)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 052070

PNL, INST SILK SCREEN
(Superseded to 09009400)

$

$

Not available

10

Gravely 046394

PNL, FRONT
(Superseded to 08978500)

$

$

Not available

11

Gravely 052085

PNL, BRAKE LOCK SILK SCRN
(Superseded to 59002300)

$

$

Not available

12

Gravely 050919

WLDMT, FENDER R.H.
(Superseded to 09001000)

$13.99

$

Usually ships in 4-12 days

0

12

Gravely 051383

WLDMT, FENDER L.H.
(Superseded to 09004800)

$26.99

$

Usually ships in 4-12 days

0

13

Gravely 051951

PLT, ACCESS SILKSCREEN
(Superseded to 09008700)

$

$

Not available

14

Gravely 180121

BLT-HEX .380-16 X .875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

15

Gravely 456004

NUT-LK-NYL .375-16 PL
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

16

Gravely 121222

PIN-COTR .09 X .75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 5

0

17

Gravely 120394

WSHR-FL-STL .406 X .812 X .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 051728

CLIP, WIRE
(Superseded to 06921600)

$

$

Not available

19

Gravely 051727

BRKT, STAY ROD
(Superseded to 09007200)

$5.99

$

Usually ships in 4-12 days

0

20

Gravely 180122

BLT-HEX .38-16 X 1.00 PL GR 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 045214

ROD, STAY
(Superseded to 09029500)

$

$

Not available

22

Gravely 046369

CVR, R.H. FOOT
(Superseded to 08964600)

$14.99

$

Usually ships in 4-12 days

0

23

Gravely 046368

CVR, L.H. FOOT
(Superseded to 08964000)

$14.99

$

Usually ships in 4-12 days

0

24

Gravely 090399

WELDMENT, FRAME
(Superseded to 09039900)

$

$

Not available

25

Gravely 435507

NUT-LK-NYL .50-13 PL
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

26

Gravely 120396

WSHR-FL-STL .531 X 1.062 X .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 180177

BLT-HEX .50-13 X 1.50 PL GR 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

28

Gravely 051204

PLT, BUMPER
(Superseded to 09003100)

$

$

Not available

29

Gravely 053401

BUMPER
(Superseded to 09033700)

$

$

Not available

30

Gravely 180175

BLT-HEX .50-13 X 1.25 PL GR 5
(Superseded to 05901637)

$3.49

$

Usually ships in 4-12 days

0

30

Gravely 059460

BLT-HEX .50-13 X 1.75 PL GR 8
(Superseded to 05946000)

$

$

Not available

31

Gravely 050665

BR, FRAME
(Superseded to 08998600)

$

$

Not available

32

Gravely 064214

WSHR-FL-STL .328 X 1.0 X .094 PL
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

33

Gravely 036485

GROMMET
(Superseded to 07502600)

$

$

Not available

34

Gravely 090363

WLDMT, ROLLOVER BAR(50)
(Superseded to 09036300)

Note: (50)

$284.99

$

Usually ships in 4-12 days

0

35

Gravely 089430

SCREEN
(Superseded to 08943000)

$

$

Not available

36

Gravely 180124

BLT-HEX .38-16 X 1.25 PL GR 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 7

0

NS

Gravely 033926

DECAL, DANGER HAND
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

NS

Gravely 047322

DECAL, CORNER
(Superseded to 05214000)

$

$

Not available

NS

Gravely 090358

DECAL SET, PM 400
(Superseded to 09035800)

$56.99

$

In Stock, only 1 left!

0
