989301 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 31hp Yanmar (SN: 000101 & Above)

Pro-Master Zero-Turn Mower, 31hp Yanmar

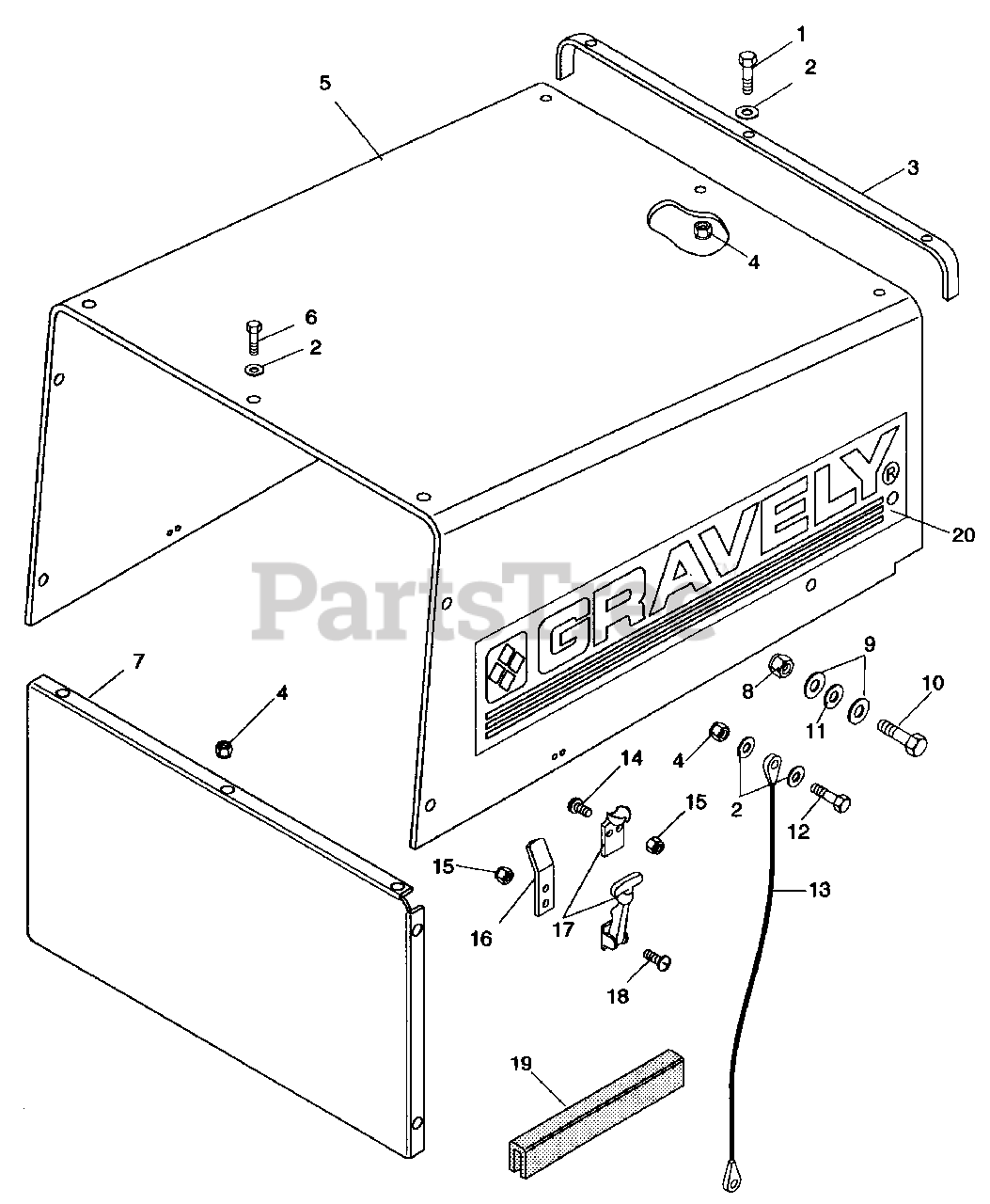

989301 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 31hp Yanmar (SN: 000101 & Above) > Parts Diagrams (13) > HOOD ASSEMBLY

  • Title
180020

1

BLT-HEX .25-20 X .75 PL GR 5

Part# 180020 (Superseded to 05946800)

OEM Warranty Repair Part for Gravely

Not available

120392

2

WSHR-FL-STL .281 X .625 X .065

Part# 120392 (Superseded to 06437300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

052991

3

BRACE, HOOD

Part# 052991 (Superseded to 09013400)

OEM Warranty Repair Part for Gravely

Not available

419454

4

NUT-LK-NYL .250-20 PL

Part# 419454 (Superseded to 06531000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

090400

5

HOOD

Part# 090400 (Superseded to 09040000)

OEM Warranty Repair Part for Gravely

Not available

180018

6

BLT-HEX .25-20 X .63

Part# 180018 (Superseded to 05932000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

090405

7

PANEL, HOOD

Part# 090405 (Superseded to 09040500)

OEM Warranty Repair Part for Gravely

Not available

456004

8

NUT-LK-NYL .375-16 PL

Part# 456004 (Superseded to 06535800)

OEM Warranty Repair Part for Gravely

Not available

120394

9

WSHR-FL-STL .406 X .812 X .065

Part# 120394 (Superseded to 06436200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

180121

10

BLT-HEX .380-16 X .875

Part# 180121 (Superseded to 05932600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

020775

11

WSHR-FL-NY .375 X .75 X .060

Part# 020775 (Superseded to 06433600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

180021

12

BLT-HEX .25-20 X .875

Part# 180021 (Superseded to 05934000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

044486

13

CBL, HOOD

Part# 044486 (Superseded to 06927100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.48

159920

14

SCR-MCH 10-24 X .50 PHD

Part# 159920 (Superseded to 06113000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

190254

15

NUT-LK 10-24 NY PL

Part# 190254 (Superseded to 06536000)

OEM Warranty Repair Part for Gravely

Not available

046295

16

PLT, GUIDE

Part# 046295 (Superseded to 08977300)

OEM Warranty Repair Part for Gravely

Not available

045554

17

LATCH

Part# 045554 (Superseded to 08969700)

OEM Warranty Repair Part for Gravely

Not available

159947

18

SCR-MCH 10-24 X .750 PHD

Part# 159947 (Superseded to 06111200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

049767

19

STRIP, COWL

Part# 049767 (Superseded to 00918200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

077038

20

GRAVELY NAME/LOGO/STRIPE DECAL

Part# 077038 (Superseded to 07703800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $48.32

011989

NS

DECAL, E-SYSTEM WARNING

Part# 011989 (Superseded to 05216700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

046447

NS

DECAL, MAINTENANCE

Part# 046447 (Superseded to 07716900)

OEM Warranty Repair Part for Gravely

Not available
