989301 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 31hp Yanmar (SN: 000101 & Above)

Pro-Master Zero-Turn Mower, 31hp Yanmar

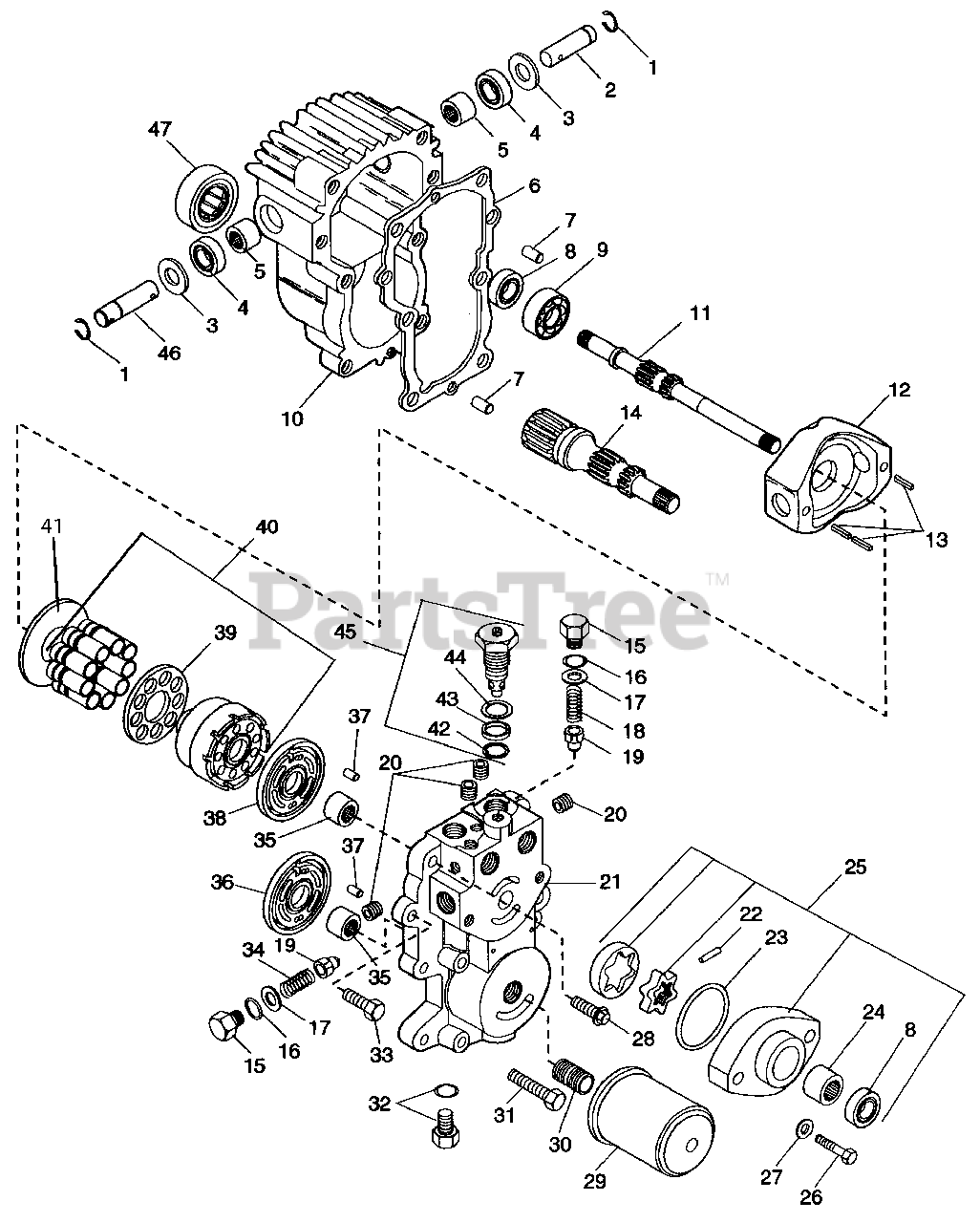

989301 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 31hp Yanmar (SN: 000101 & Above) > Parts Diagrams (13) > HYDROSTATIC TRANSMISSION

  • Title
05706900

1

RG-RTNG-EXT .688 X .042

Part# 05706900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

03161400

2

TRUNNION SHAFT

Part# 03161400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $59.92

06415100

3

WSHR-FL-STL .699 X 1.375 X .059

Part# 06415100

OEM Warranty Repair Part for Gravely

Not available

05608900

4

SEAL-LIP .625 X 1.187 X .187

Part# 05608900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $24.54

20000200

5

JOURNAL BEARING

Part# 20000200

OEM Warranty Repair Part for Gravely

Not available

03162900

6

GASKET

Part# 03162900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

03163200

7

DOWEL PIN

Part# 03163200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

05609100

8

SEAL .625 X 1.128 X .250

Part# 05609100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

05407100

9

BRG-BALL 17MM X 40MM X 12MM

Part# 05407100 (Superseded to 05418800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

58901200

10

HOUSING ASSEMBLY KIT

Part# 58901200

OEM Warranty Repair Part for Gravely

Not available

20000300

11

SHAFT, PUMP

Part# 20000300

OEM Warranty Repair Part for Gravely

Not available

03054400

12

SWASHPLATE VARIABLE

Part# 03054400

OEM Warranty Repair Part for Gravely

Not available

05806200

13

PIN-ROLL .188 X .63

Part# 05806200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

20000400

14

SHAFT, MOTOR

Part# 20000400

OEM Warranty Repair Part for Gravely

Not available

03161100

15

PLUG HEX HEAD

Part# 03161100

OEM Warranty Repair Part for Gravely

Not available

05608800

16

O-RING .414 X .562 X .072

Part# 05608800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

03161300

17

SHIM PACKAGE

Part# 03161300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $67.02

08322200

18

SG-COMP SUNSTRAND

Part# 08322200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

03160900

19

RELIEF VALVE CONE

Part# 03160900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

03163000

20

PIPE PLUG

Part# 03163000

OEM Warranty Repair Part for Gravely

Not available

03074800

21

CENTER SECTION

Part# 03074800

OEM Warranty Repair Part for Gravely

Not available

03074900

22

PIN

Part# 03074900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $24.54

05609200

23

O-RING 2.364 X 2.504 X .072

Part# 05609200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

05405400

24

BRG-NEEDLE .625 X .875 X .50

Part# 05405400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

58901400

25

CHARGE PUMP ASSEMBLY KIT

Part# 58901400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $673.31

05912600

26

BLT-HEX .44-14 X 2.00 GR 5

Part# 05912600

OEM Warranty Repair Part for Gravely

Not available

06415300

27

WSHR-FL-STL .469 X .719 X .108

Part# 06415300

OEM Warranty Repair Part for Gravely

Not available

05917900

28

SCR-12PN .38-16 X 1.25 GR 5

Part# 05917900

OEM Warranty Repair Part for Gravely

Not available

03192800

29

OIL FILTER

Part# 03192800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $16.71

03161800

30

UNION

Part# 03161800

OEM Warranty Repair Part for Gravely

Not available

05914700

31

BLT-HEX .38-16 X 2.00 PL GR 5

Part# 05914700 (Superseded to 05963300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

03160800

32

THREADED PLUG

Part# 03160800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.36

05915100

33

BLT-HEX .38-16 X 1.50 PL GR 5

Part# 05915100 (Superseded to 05957900)

OEM Warranty Repair Part for Gravely

Not available

08315700

34

SG-COMP SUNSTRAND

Part# 08315700

OEM Warranty Repair Part for Gravely

Not available

05412700

35

BRG-NEEDLE 17MM X .938 X .62

Part# 05412700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.66

03162100

36

MOTOR VALVE PLATE

Part# 03162100

OEM Warranty Repair Part for Gravely

Not available

03163300

37

DOWEL PIN

Part# 03163300

OEM Warranty Repair Part for Gravely

Not available

03083600

38

VALVE PLATE

Part# 03083600

OEM Warranty Repair Part for Gravely

Not available

03020500

39

SLIPPER RETAINER

Part# 03020500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $51.37

53103500

40

CYLINDER BLOCK KIT

Part# 53103500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $569.82

03054200

41

THRUST PLATE

Part# 03054200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $67.02

05609700

42

O-RING .614 X .750 X .070

Part# 05609700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

05609800

43

O-RING .614 X .750 X .046

Part# 05609800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

05609600

44

O-RING .770 X .968 X .097

Part# 05609600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

58901300

45

CHECK VALVE ASSEMBLY KIT

Part# 58901300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $190.00

03161500

46

TRUNNION SHAFT

Part# 03161500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $90.39

05412800

47

BRG-ROLLER 1.27 X 2.05 X 15MM

Part# 05412800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $87.03
