989301 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 31hp Yanmar (SN: 000101 & Above)

Pro-Master Zero-Turn Mower, 31hp Yanmar

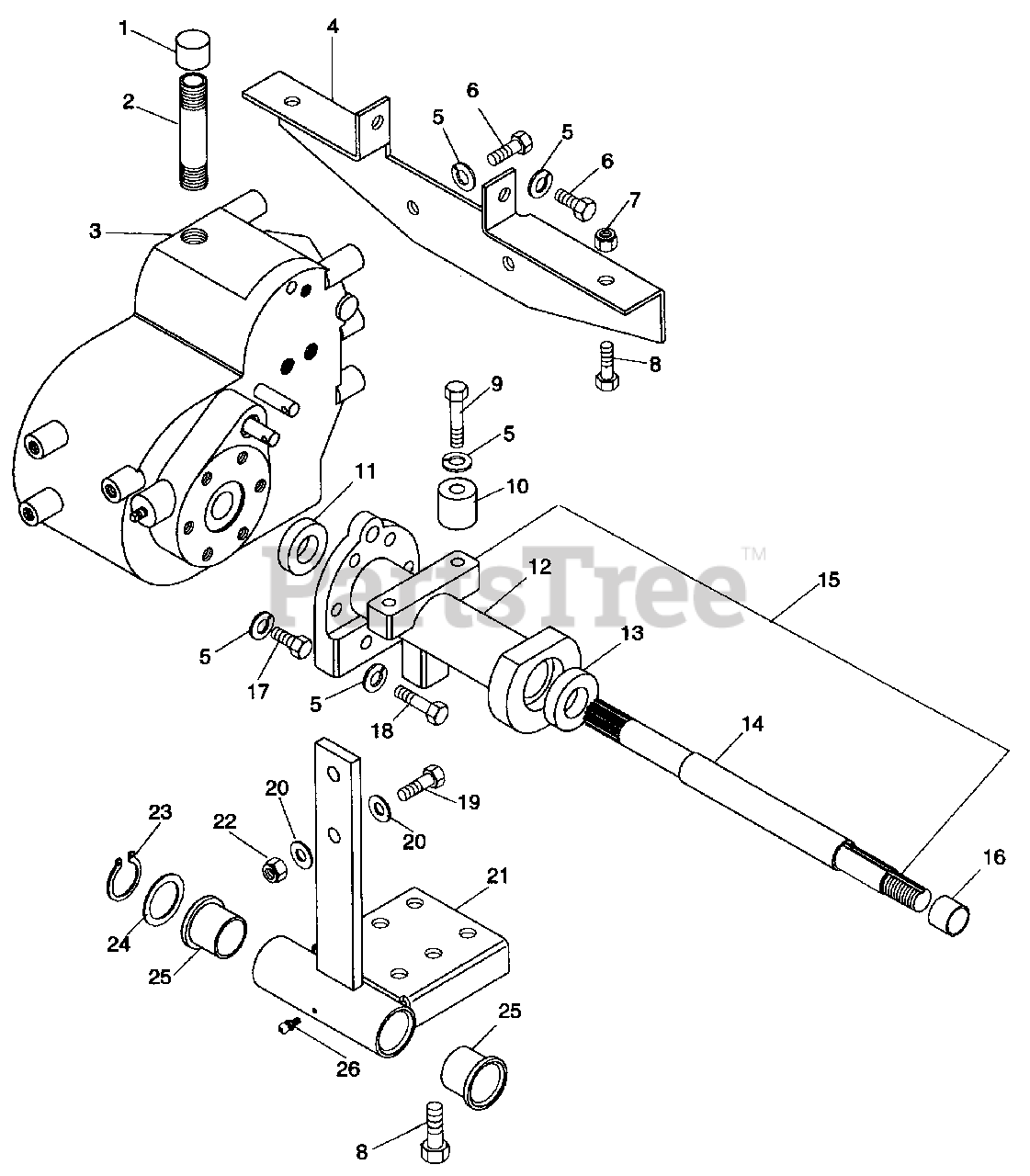

989301 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 31hp Yanmar (SN: 000101 & Above) > Parts Diagrams (13) > TRANSAXLE ASSEMBLY

  • Title
070241

1

CAP, PIPE .75 UNFIN MAL IR

Part# 070241 (Superseded to 07024100)

OEM Warranty Repair Part for Gravely

Not available

070251

2

NIPPLE, PIPE .75 X 5.0 UNFIN STL

Part# 070251 (Superseded to 07025100)

OEM Warranty Repair Part for Gravely

Not available

051731

3

TRANSAXLE

Part# 051731 (Superseded to 09026400)

OEM Warranty Repair Part for Gravely

Not available

044923

4

PLT, TRANSAXLE

Part# 044923 (Superseded to 08959000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $72.61

120384

5

WSHR-LOCK .50 REG.

Part# 120384 (Superseded to 06300115)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

180175

6

BLT-HEX .50-13 X 1.25 PL GR 5

Part# 180175 (Superseded to 05958900)

OEM Warranty Repair Part for Gravely

Not available

418692

7

NUT-LK-NYL .625-11 PL

Part# 418692 (Superseded to 06540700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

271547

8

BLT-HEX .625-11 X 1.50

Part# 271547 (Superseded to 05968700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

180188

9

BLT-HEX .50-13 X 2.75 PL GR 5

Part# 180188 (Superseded to 05965500)

OEM Warranty Repair Part for Gravely

Not available

044499

10

SPCR, FRAME

Part# 044499 (Superseded to 08951100)

OEM Warranty Repair Part for Gravely

Not available

044569

11

RING, ALIGNMENT

Part# 044569 (Superseded to 09028700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.48

045519

12

HOUSING, AXLE

Part# 045519 (Superseded to 20818200)

OEM Warranty Repair Part for Gravely

Not available

013464

13

BRG, BALL 1.18 X 2.440 X .629

Part# 013464 (Superseded to 05421200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $33.48

045520

14

AXLE

Part# 045520 (Superseded to 21512900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $345.90

044585

15

ASM, AXLE HOUSING

Part# 044585 (Superseded to 58902900)

OEM Warranty Repair Part for Gravely

Not available

053270

16

SPCR, AXLE 1.75 X .800 ST

Part# 053270 (Superseded to 08936600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $21.24

180177

17

BLT-HEX .50-13 X 1.50 PL GR 5

Part# 180177 (Superseded to 05962000)

OEM Warranty Repair Part for Gravely

Not available

180183

18

BLT-HEX .50-13 X 2.25 PL GR 5

Part# 180183 (Superseded to 05961000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

180179

19

BLT-HEX .50-13 X 1.75

Part# 180179 (Superseded to 05970600)

OEM Warranty Repair Part for Gravely

Not available

120396

20

WSHR-FL-STL .531 X 1.062 X .095

Part# 120396 (Superseded to 06441900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

044931

21

WLDMT, PIVOT BRKT

Part# 044931 (Superseded to 08959200)

OEM Warranty Repair Part for Gravely

Not available

435507

22

NUT-LK-NYL .50-13 PL

Part# 435507 (Superseded to 06540600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

046333

23

RING, RETAINING

Part# 046333 (Superseded to 05715500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

018954

24

WSHR-THRST 1.50 X 2.18 X .063

Part# 018954 (Superseded to 06432200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $13.36

046781

25

BSHG-FLG 1.154 X 1.756 X 1.688 X 2.2

Part# 046781 (Superseded to 05517600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

411027

26

FTG., LUBE; .25-28 SELF-THREAD

Part# 411027 (Superseded to 07012600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30
