989301 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 31hp Yanmar (SN: 000101 & Above) WHEELS Parts Diagram

Pro-Master Zero-Turn Mower, 31hp Yanmar

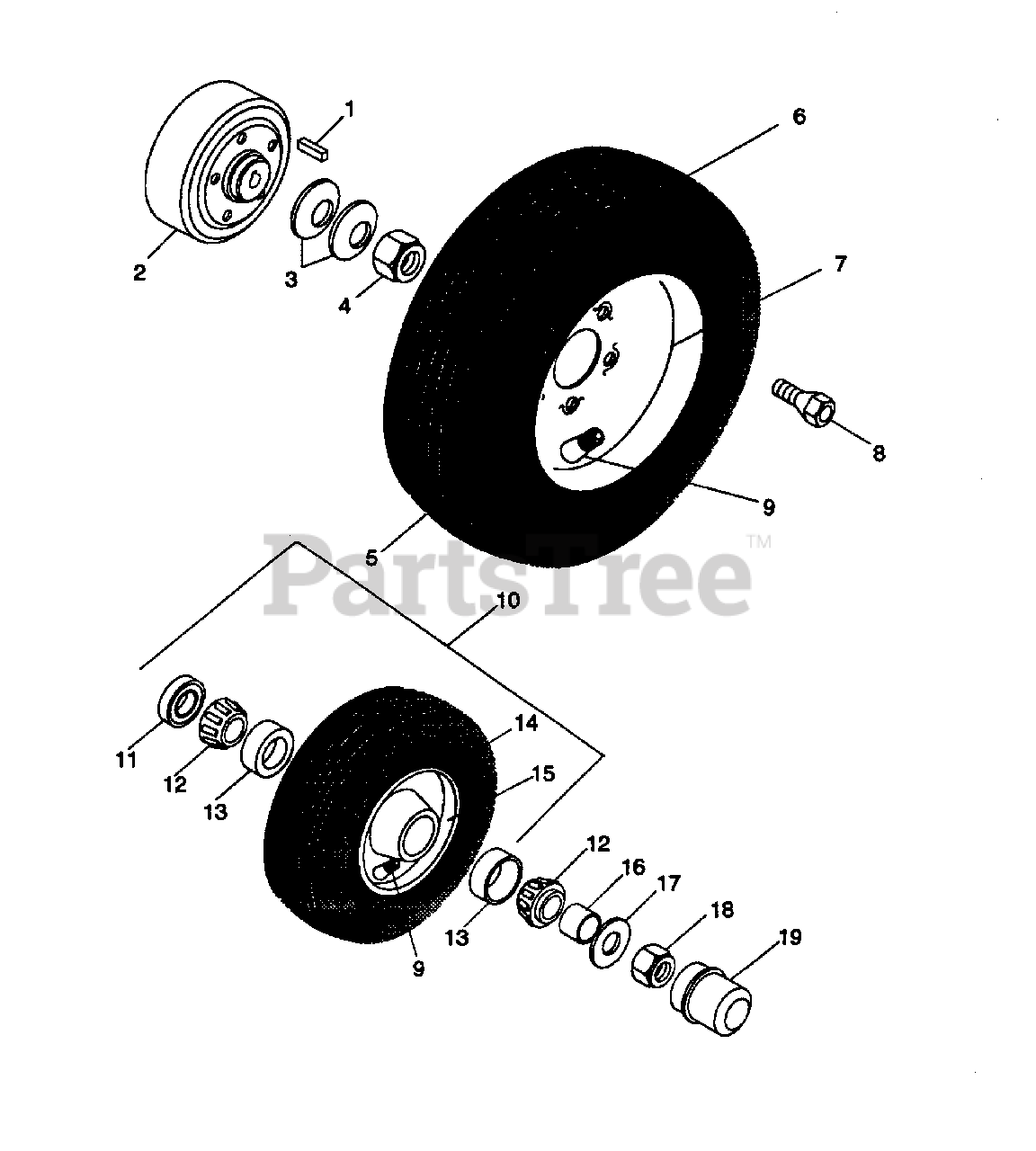

WHEELS Parts Diagram

  • Title

1

Gravely 06607200

KEY-SQ .312 X 2.25

$6.49

$

Usually ships in 4-12 days

0

2

Gravely 08968200

HUB, WHEEL

$

$

Not available

3

Gravely 08346300

SPRG, BELLEVILLE

$

$

Not available

4

Gravely 06521300

NUT-LK 1.0-14 WSHR INSERT
(Superseded to 00181818)

$10.99

$

Usually ships in 4-12 days

0

5

Gravely 07132100

T/WHL ASSY 23 X 10.50-12
(Superseded to 07150100)

$

$

Not available

6

Gravely 07119500

TIRE, REAR 23 X 10.50-12
(Superseded to 20928000)

$

$

Not available

7

Gravely 20928100

WLDMT, RIM

$

$

Not available

8

Gravely 20928000

BLT .44-20 X 1.0

$

$

Not available

9

Gravely 20928200

VALVE STEM ASS'Y

$156.99

$

Usually ships in 4-12 days

0

10

Gravely 07013800

TIRE, ASSEMBLY
(Superseded to 07051400)

$10.99

$

Usually ships in 4-12 days

0

11

Gravely 07520000

SEAL 1.206 X 1.785 X .486

$2.99

$

In Stock, only 2 left!

0

12

Gravely 21212500

BRG-CONE .750 X .61

$290.99

$

Usually ships in 4-12 days

0

13

Gravely 07133300

BRG-CUP 1.781 X .475

$

$

Not available

14

Gravely 05613200

TIRE, FRONT 16 X 7.50 - 8

$17.99

$

In Stock, only 4 left!

0

14

Gravely 05404500

TIRE, 15 X 6-6 4P RB TL

$29.99

$

In Stock, Qty 11

0

15

Gravely 05404400

WELDMENT, RIM

$11.99

$

In Stock, Qty 20+

0

16

Gravely 03495900

SPACER

$16.99

$

In Stock, only 1 left!

0

17

Gravely 06400400

WSHR-FL-STL .656 X 1.312 X .095 PL
(Superseded to 06442800)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 06506900

NUT-LK-CTR .625-11 PL
(Superseded to 06535300)

$2.99

$

Usually ships in 4-12 days

0

19

Gravely 03496000

DUST CAP

$15.99

$

In Stock, Qty 5

0
