989302 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) HOOD ASSEMBLY Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

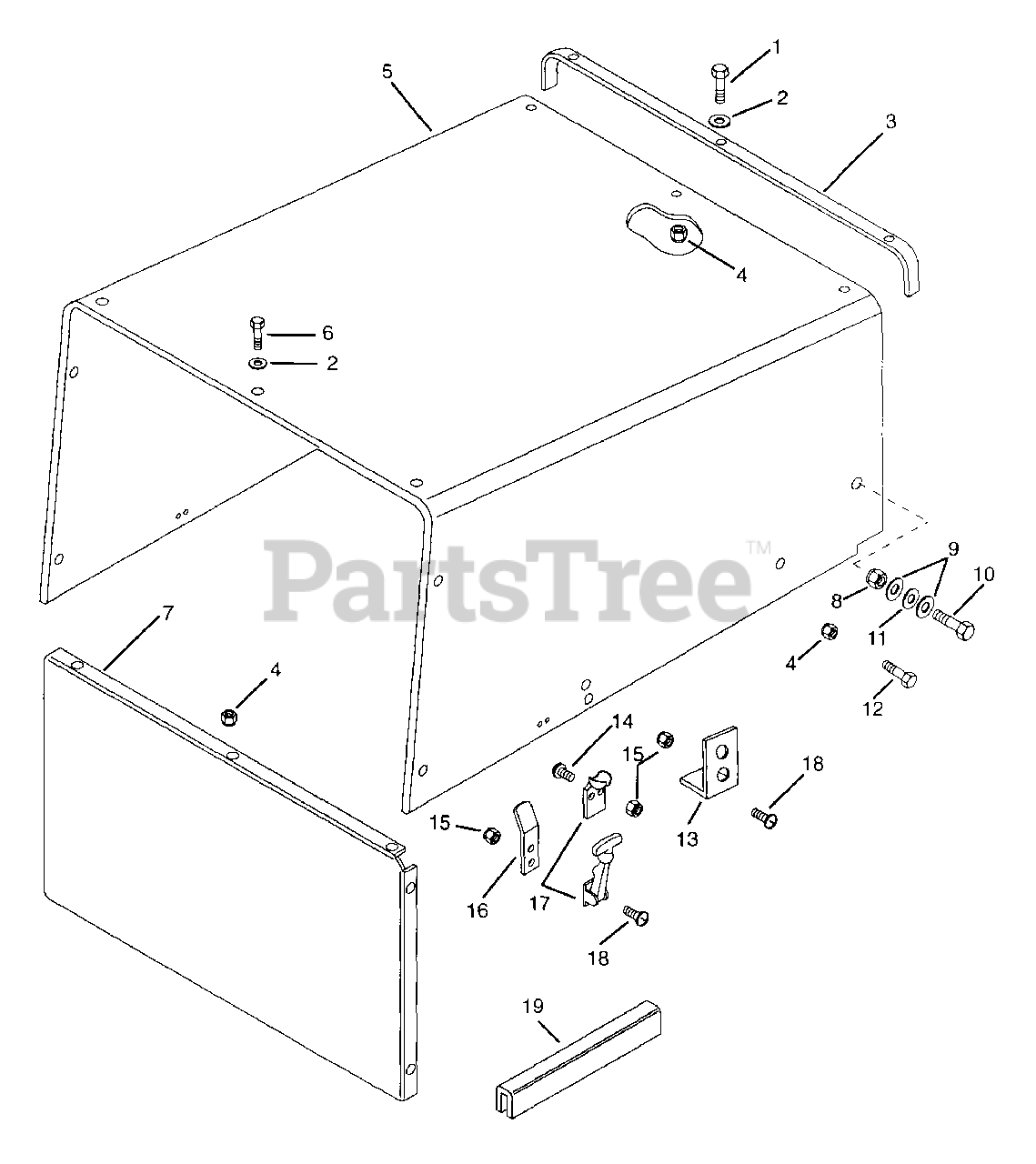

HOOD ASSEMBLY Parts Diagram

  • Title

1

Gravely 180020

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

2

Gravely 120392

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

3

Gravely 052991

Brace, Hood
(Superseded to 09013400)

$

$

Not available

4

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

5

Gravely 09045800

Hood, Engine
(Superseded to 09067200)

$102.99

$

Usually ships in 4-12 days

0

6

Gravely 180018

Bolt-Hex .25-20 x .63
(Superseded to 05932000)

$2.49

$

In Stock, only 1 left!

0

7

Gravely 09040500

Panel, Hood

$

$

Not available

8

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

9

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 180121

Bolt-Hex .380-16 x .875
(Superseded to 05932600)

$2.99

$

In Stock, only 1 left!

0

11

Gravely 020775

Washer-Flat-Steel .505 x .880 x .072
(Superseded to 06433600)

$0.99

$

In Stock, Qty 9

0

12

Gravely 180021

Bolt-Hex .25-20 x .875
(Superseded to 05934000)

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 09042600

Bracket (989300,301)

Note: (989300,301)

$

$

Not available

14

Gravely 159920

Screw-Machine 10-24 x .50
(Superseded to 06113000)

$2.49

$

In Stock, Qty 5

0

15

Gravely 190254

Nut-Locking 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 046295

Plate, Guide
(Superseded to 08977300)

$

$

Not available

17

Gravely 045554

Latch
(Superseded to 08969700)

$

$

Not available

18

Gravely 159947

Screw-Machine 10-24 x .750
(Superseded to 06111200)

$2.99

$

Usually ships in 4-12 days

0

19

Gravely 049767

Strip, Cowl
(Superseded to 00918200)

$6.49

$

Usually ships in 4-12 days

0
