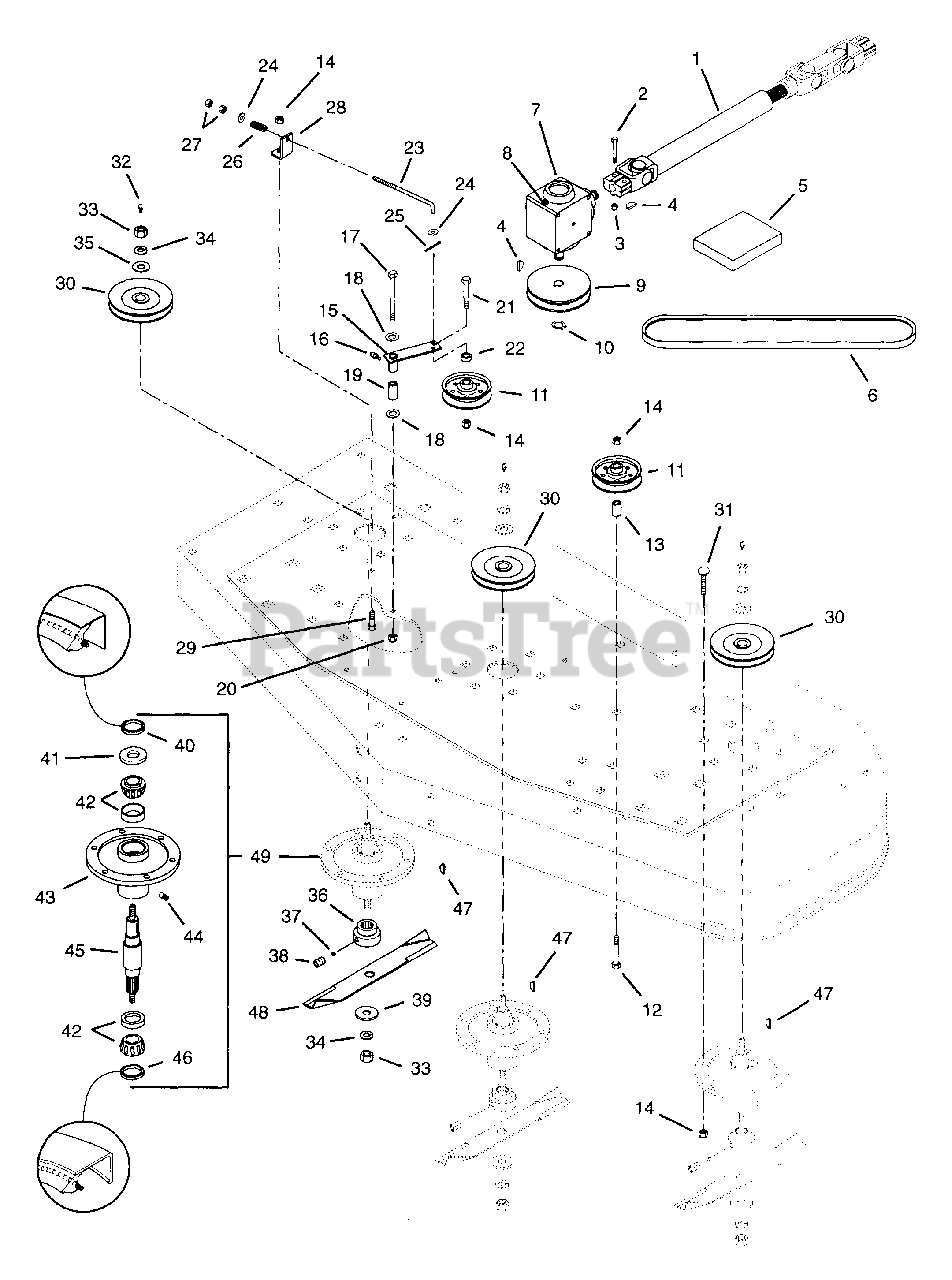

989302 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) MOWER DRIVE Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 09042300

C.V. Universal Joint - 60" Deck (004,300)
(Superseded to 09082600)

Note: (004,300)

$

$

Not available

1

Gravely 09041600

C.V. Universal Joint - 72" Deck (005,006,301,302)
(Superseded to 09082500)

Note: (005,006,301,302)

$

$

Not available

2

Gravely 180085

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$3.49

$

In Stock, Qty 5

0

3

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 124551

Key, Woodruff .25 x .875
(Superseded to 06608800)

$3.99

$

In Stock, only 2 left!

0

5

Gravely 024560

Kit, Repair, U-Joint
(Superseded to 03155800)

$

$

Not available

6

Gravely 049066

V-Belt B-Section 82.375 x .672 (004,300)
(Superseded to 07222500)

Note: (004,300)

$

$

Not available

6

Gravely 044895

V-Belt A-Section 94.8 x .656 (005,006,301,302)
(Superseded to 07221900)

Note: (005,006,301,302)

$161.99

$

In Stock, only 3 left!

0

7

Gravely 044800

Gearbox, Right Angle 1:1
(Superseded to 08956151)

$

$

Not available

8

Gravely 048596

Plug, 1/8 Vent
(Superseded to 08984600)

$

$

Not available

9

Gravely 044896

Sheave, Gear Box
(Superseded to 08957500)

$

$

Not available

10

Gravely 022080

Ring-Retaining-External .821 x .078
(Superseded to 05713900)

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 022063

Idler-Flat-Pulley 6.75 x .510
(Superseded to 07316700)

$65.99

$

In Stock, only 3 left!

0

12

Gravely 180188

Bolt-Hex .50-13 x 2.75 Grade 5 (004,005,300,301)
(Superseded to 05901720)

Note: (004,005,300,301)

$5.49

$

Usually ships in 4-12 days

0

12

Gravely 180181

Bolt-Hex .50-13 x 2.00 Grade 5 (006,302)
(Superseded to 05901929)

Note: (006,302)

$3.49

$

In Stock, only 2 left!

0

13

Gravely 044909

Spacer .562 x .975 x 1.00 (004,005,300,301)
(Superseded to 08980600)

Note: (004,005,300,301)

$26.99

$

Usually ships in 4-12 days

0

13

Gravely 031368

Spacer .516 x .875 x .300 (006,302)
(Superseded to 09036100)

Note: (006,302)

$37.99

$

Usually ships in 4-12 days

0

14

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

15

Gravely 046809

Weldment, Idler Pivot
(Superseded to 08979400)

$156.99

$

In Stock, only 1 left!

0

16

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

17

Gravely 05945700

Bolt-Hex .50-13 x 3.375
(Superseded to 05901703)

$6.49

$

In Stock, only 4 left!

0

18

Gravely 120389

Washer-Flat-Steel .500 x 1.250 x .083
(Superseded to 06441000)

$3.49

$

In Stock, only 3 left!

0

19

Gravely 031363

Spacer .505 x .855 x 2.50
(Superseded to 08826500)

$52.99

$

Usually ships in 4-12 days

0

20

Gravely 435507

Nut-Locking .50-13 Grade 5
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

21

Gravely 180128

Bolt-Hex .38 x 1.75 Grade 5
(Superseded to 05901809)

$1.99

$

In Stock, only 3 left!

0

22

Gravely 031368

Spacer .516 x .875 x .300
(Superseded to 09036100)

$37.99

$

Usually ships in 4-12 days

0

23

Gravely 046264

Rod, Idler
(Superseded to 08656800)

$65.99

$

Usually ships in 4-12 days

0

24

Gravely 120394

Washer-Flat-Steel .406 x .812 x .062
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 121222

Pin-Cotter .09 x .75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

26

Gravely 011779

Spring-Compression .125 x .78 x 1.00
(Superseded to 08327000)

$16.99

$

In Stock, only 4 left!

0

27

Gravely 120369

Nut-Hex .375-24 Grade 2
(Superseded to 06522900)

$2.99

$

In Stock, only 2 left!

0

28

Gravely 031346

Support, Spring
(Superseded to 08905100)

$17.99

$

Usually ships in 4-12 days

0

29

Gravely 180122

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 08896500

Weldment, Sheave (004,300)

Note: (004,300)

$89.99

$

Usually ships in 4-12 days

0

30

Gravely 08894700

Weldment, Sheave (005,006,301,302)

Note: (005,006,301,302)

$144.99

$

Usually ships in 4-12 days

0

31

Gravely 06205600

Bolt-Round Head Square Neck .38-16 x 1.50
(Superseded to 06224200)

$4.99

$

In Stock, Qty 20+

0

32

Gravely 411010

Fitting-Lube 1/8
(Superseded to 07012500)

$4.99

$

In Stock, only 2 left!

0

33

Gravely 124589

Nut-Hex .625-11 Grade 2
(Superseded to 06535600)

$2.99

$

Usually ships in 4-12 days

0

34

Gravely 06300700

Washer-Lock .625 x .156
(Superseded to 06309500)

$2.49

$

Usually ships in 4-12 days

0

35

Gravely 033845

Washer-Flat-Steel .687 x 1.312 x 1.50
(Superseded to 06427400)

$2.99

$

In Stock, Qty 9

0

36

Gravely 08886500

Hub

$65.99

$

Usually ships in 4-12 days

0

Gravely 08798700

Weldment, Blade Cradle (004,005,300,301)

Note: (004,005,300,301)

$127.99

$

Usually ships in 4-12 days

0

Gravely 08894300

Weldment, Blade Cradle (006.302)

Note: (006.302)

$145.99

$

Usually ships in 4-12 days

0

37

Gravely 03191400

Plug

$7.49

$

Usually ships in 4-12 days

0

38

Gravely 06005400

Screw-Set .25-20 x .25

$3.99

$

Usually ships in 4-12 days

0

39

Gravely 06435200

Washer
(Superseded to 06400829)

$4.99

$

In Stock, Qty 20+

0

39

Gravely 033845

Washer-Flat-Steel .687 x 1.312 x 1.50
(Superseded to 06427400)

$2.99

$

In Stock, Qty 9

0

40

Gravely 039971

Seal 1.987 x 1.500 x .313
(Superseded to 05611400)

$16.99

$

In Stock, only 4 left!

0

41

Gravely 06416600

Washer-Flat-Steel 1.007 x 1.542 x .062

$3.49

$

In Stock, Qty 20+

0

42

Gravely 038199

Assembly, Bearing Cup and Cone
(Superseded to 21245800)

$29.99

$

In Stock, Qty 20+

0

43

Gravely 08894400

Bearing, Housing

$

$

Not available

44

08296800

Relief Fitting

$

$

Not available

45

Gravely 08898500

Shaft, Spindle
(Superseded to 58802900)

$128.99

$

In Stock, only 4 left!

0

46

Gravely 05613000

Seal 1.987 x 1.375 x .313

$17.99

$

In Stock, Qty 19

0

47

Gravely 124553

Key-Woodruff .25 x 1
(Superseded to 06608900)

$3.99

$

In Stock, Qty 15

0

48

Gravely 048864

Blade (004,300)
(Superseded to 08781800)

Note: (004,300)

$31.99

$

In Stock, Qty 6

0

48

Gravely 047685

Blade, 72" Mower (005,006,301,302)
(Superseded to 08983800)

Note: (005,006,301,302)

$38.99

$

In Stock, only 4 left!

0

49

Gravely 58802500

Service Kit

Note: As Required; Contains 1 each of Items 35-41,43-46; 2 each of Items 33,34,42

$

$

Not available

Gravely 036799

Spring
(Superseded to 08738900)

Note: Not Shown; As Required

$13.99

$

In Stock, only 1 left!

0

Gravely 036800

Collar, Locking
(Superseded to 08739000)

Note: Not Shown; As Required

$25.99

$

Usually ships in 4-12 days

0

Gravely 036801

Ring, Snap
(Superseded to 08739100)

Note: Not Shown; As Required

$

$

Not available

Gravely 145643

Ball, Detent
(Superseded to 05429800)

Note: Not Shown; As Required

$

$

Not available
