989302 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) SEAT AND DECK ASSEMBLY Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

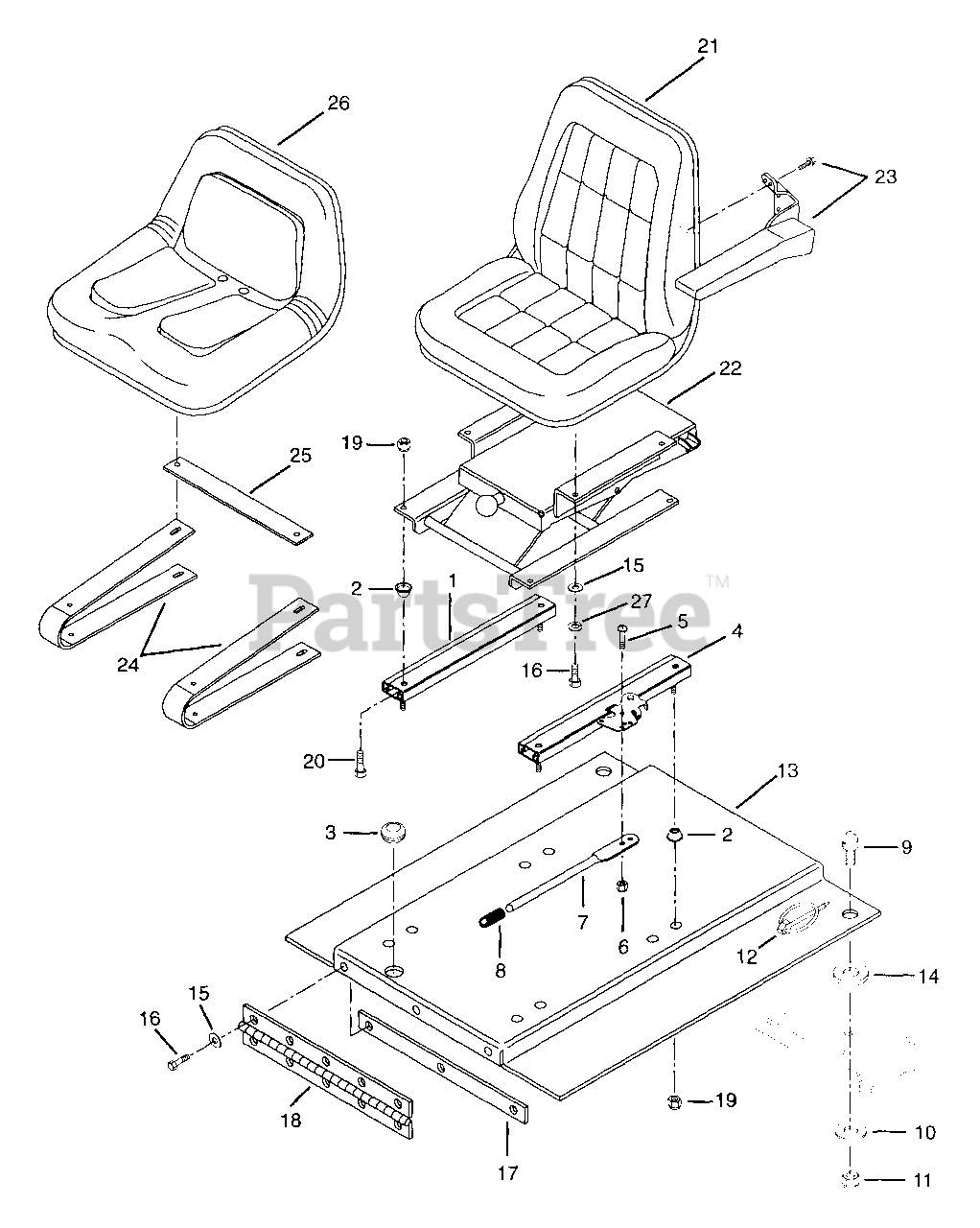

SEAT AND DECK ASSEMBLY Parts Diagram

  • Title

1

Gravely 035642

SEAT SLIDES -(RAME TAK-3010-4)
(Superseded to 03600800)

$

$

Not available

2

Gravely 035670

SEAT SLIDE SPACER
(Superseded to 03418300)

$4.49

$

Usually ships in 4-12 days

0

3

Gravely 045290

GRMT .75X1.06X1.38
(Superseded to 07530600)

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 035641

SEAT SLIDES -(RAME TAK-3010-4)
(Superseded to 03600800)

$

$

Not available

5

Gravely 159929

SCR-MCH 10-24X.62 P/HD
(Superseded to 06111100)

$1.49

$

In Stock, Qty 10

0

6

Gravely 190254

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 039063

SEAT SLIDE HANDLE
(Superseded to 03416500)

$

$

Not available

8

Gravely 043192

TIP - BRAKE LOCK LEVER
(Superseded to 07503800)

$1.99

$

In Stock, only 2 left!

0

9

Gravely 045148

PIN,CATCH
(Superseded to 08964800)

$

$

Not available

10

Gravely 120396

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 011902

PIN-KLIK .25X1.75
(Superseded to 07015400)

$6.49

$

Usually ships in 4-12 days

0

13

Gravely 045117

PLT,DECK
(Superseded to 08963900)

$

$

Not available

14

Gravely 044476

WSHR-SNUB-STL .53X2.38X.125
(Superseded to 06428100)

Note: (989300,301)

$

$

Not available

15

Gravely 120393

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

Gravely 120393

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: With Seat Kit

$0.99

$

In Stock, Qty 20+

0

16

Gravely 180077

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

Gravely 180077

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: With Seat Kit

$1.99

$

In Stock, Qty 20+

0

17

Gravely 044570

PLT, CLAMPING YWZC
(Superseded to 01539100)

$

$

Not available

18

Gravely 039090

HINGE-2" X 12.88 YWZC
(Superseded to 03102800)

$

$

Not available

19

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

Note: With Seat Kit

$1.49

$

In Stock, Qty 5

0

20

Gravely 180082

BLT-HEX .31-18X1.38
(Superseded to 05934500)

$

$

Not available

21

Gravely 046220

SEAT,PRO MASTER
(Superseded to 08975800)

Note: With Kit 048577

$

$

Not available

22

Gravely 045230

SEAT,SUSPENSION
(Superseded to 08967500)

Note: With Kit 048577

$

$

Not available

23

Gravely 044143

KIT,PRO MASTER ARM REST
(Superseded to 78901400)

$

$

Not available

24

Gravely 047528

SPRING, SEAT
(Superseded to 03486851)

Note: With Kit 051546

$

$

Not available

25

Gravely 09004000

BRKT,SEAT
(Superseded to 09004051)

Note: With Kit 051546

$

$

Not available

26

Gravely 09112400

SEAT, V-560 HIGH BACK

Note: With Kit 051546

$

$

Not available

27

Gravely 180079

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

Note: With Seat Kit

$1.99

$

In Stock, Qty 20+

0

Gravely 048577

KIT,DELUXE SEAT
(Superseded to 78703200)

Note: As Required

$

$

Not available

Gravely 044143

KIT,PRO MASTER ARM REST
(Superseded to 78901400)

Note: As Required

$

$

Not available

Gravely 051546

KIT,HIGH BACK SEAT
(Superseded to 78901300)

Note: As Required

$

$

Not available

Gravely 044144

KIT,ARM REST G SERIES

Note: As Required

$

$

Not available

Gravely 787078

Arm Rest Kit

Note: As Required

$

$

Not available
