989304 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) 72" MOWER DECK - SIDE DISCHARGE Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

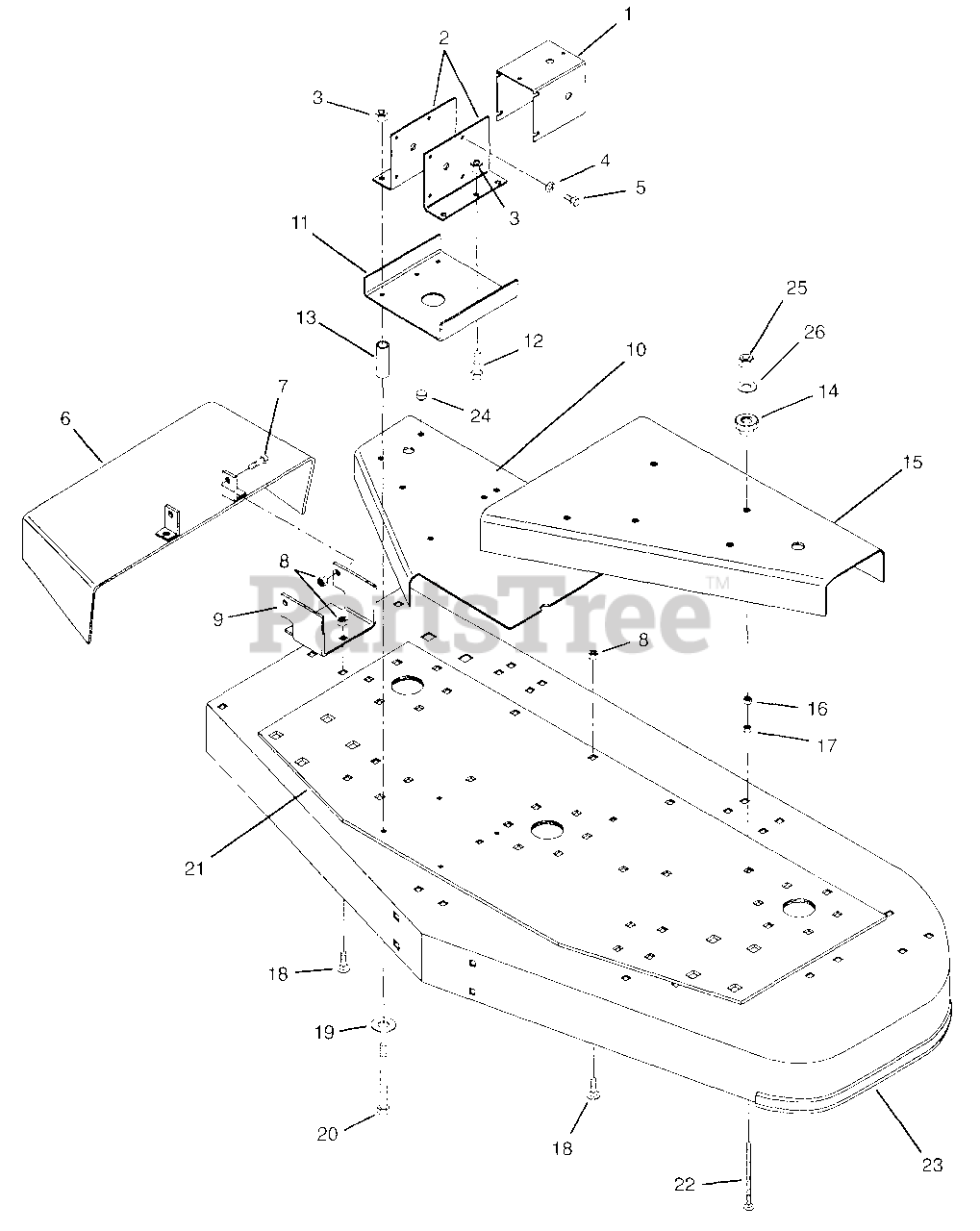

72" MOWER DECK - SIDE DISCHARGE Parts Diagram

  • Title

1

Gravely 047332

Shield, U-Joint
(Superseded to 08981900)

$6.99

$

Usually ships in 4-12 days

0

2

Gravely 048968

Bracket, Gearbox Mounting Right Hand
(Superseded to 08986100)

$13.99

$

Usually ships in 4-12 days

0

2

Gravely 048969

Bracket, Gearbox Mounting Left Hand
(Superseded to 08986200)

$13.99

$

Usually ships in 4-12 days

0

3

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

4

Gravely 120382

Washer-Lock .375 x .094
(Superseded to 06300116)

$1.49

$

In Stock, Qty 17

0

5

Gravely 180121

Bolt-Hex .380-16 x .875
(Superseded to 05932600)

$2.99

$

In Stock, only 1 left!

0

6

Gravely 044906

Weldment, Discharge Chute
(Superseded to 08763200)

$

$

Not available

7

Gravely 180122

Bolt-Hex .375-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

9

Gravely 035667

Bracket, Discharge
(Superseded to 08738100)

$

$

Not available

10

Gravely 044786

Cover, Belt Right Hand
(Superseded to 09090000)

$

$

Not available

11

Gravely 044783

Plate, Support
(Superseded to 08955300)

$

$

Not available

12

Gravely 180173

Bolt-Hex .50-13 x 1 Grade 5
(Superseded to 05901715)

$2.99

$

In Stock, Qty 7

0

13

Gravely 044905

Spacer .562 x 1.00 x 2.00
(Superseded to 08981000)

$29.99

$

Usually ships in 4-12 days

0

14

Gravely 041674

Knob
(Superseded to 07534800)

Note: (005)

$3.99

$

In Stock, Qty 20+

0

15

Gravely 047337

Silk screen, Belt Cover
(Superseded to 08955500)

$79.99

$

Usually ships in 4-12 days

0

16

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 124824

Nut-Jam .312-18
(Superseded to 06500909)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 120915

Bolt-Round Head Square Neck .38-16 x 1.0

$

$

Not available

19

Gravely 120396

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06401015)

$1.49

$

In Stock, only 1 left!

0

20

Gravely 180193

Bolt-Hex .50-13 x 3.75
(Superseded to 05901703)

$6.49

$

In Stock, only 4 left!

0

21

Gravely 044782

Plate, Deck Support
(Superseded to 08955200)

$

$

Not available

22

Gravely 040546

Bolt-Round Head Square Neck .31-18 x 4.0
(Superseded to 06222500)

$3.99

$

In Stock, only 2 left!

0

23

Gravely 050708

Weldment, 72" Deck
(Superseded to 09000100)

$

$

Not available

24

Gravely 07516000

Button-Bumper

$1.49

$

In Stock, Qty 6

0

25

064057

Washer-Flat-Steel .323 x .625 x .062

Note: (301)

$

$

Not available

26

Gravely 419455

Nut-Locking-Nylon .312-18 w/ Insert Grade 2
(Superseded to 06500820)

Note: (301)

$1.49

$

In Stock, Qty 20+

0

Gravely 09063300

Limiter

Note: NS; (301)

$5.99

$

Usually ships in 4-12 days

0

Gravely 180077

Bolt-Hex .31-18 x .75 Grade 2
(Superseded to 05901704)

Note: NS; (301)

$1.99

$

In Stock, Qty 20+

0

Gravely 419455

Nut-Locking-Nylon w/ Insert Grade 2
(Superseded to 06500820)

Note: NS; (301)

$1.49

$

In Stock, Qty 20+

0
