989304 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) WHEELS Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

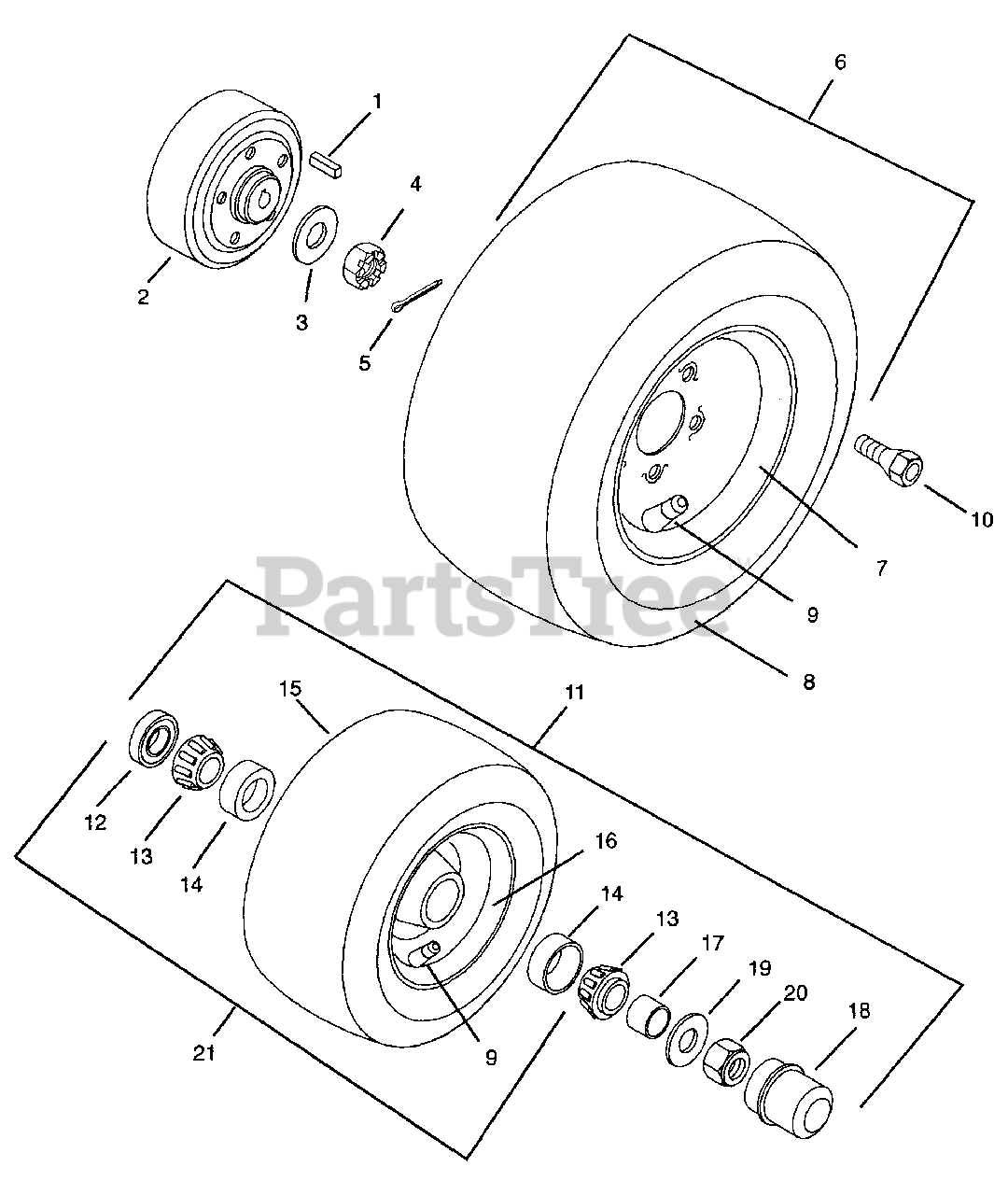

WHEELS Parts Diagram

  • Title

1

Gravely 06601000

Key-Feather .25 X 1.875 X .25

$5.49

$

Usually ships in 4-12 days

0

2

Gravely 09049200

Hub, Wheel

$

$

Not available

3

Gravely 06439000

Washer-Flat-Steel .812 X 1.50 X .139
(Superseded to 06401140)

$1.99

$

In Stock, Qty 17

0

4

Gravely 06538700

Nut-Slotted .75-16

$6.99

$

Usually ships in 4-12 days

0

5

Gravely 06712800

Pin-Cotter .18 x 1.50

$2.49

$

In Stock, only 2 left!

0

6

Gravely 052995

Tire/Wheel Assembly 23 x 10.50-12
(Superseded to 07150100)

Note: (Contains One each of Items 7,8,9)

$

$

Not available

7

Gravely 048921

Tire, Rear 23 x 10.50-12
(Superseded to 20928100)

$

$

Not available

8

Gravely 048922

Weldment, Rim
(Superseded to 20928200)

$156.99

$

Usually ships in 4-12 days

0

9

Gravely 011191

Valve Stem Assembly
(Superseded to 07520000)

$2.99

$

In Stock, only 4 left!

0

10

Gravely 07051400

Bolt .44-20 x 1.0

$10.99

$

Usually ships in 4-12 days

0

11

Gravely 031425

Tire, Assembly
(Superseded to 21212500)

Note: (Contains: One each of Items 9,12,15-18; Two each of Items 13,14)

$290.99

$

Usually ships in 4-12 days

0

12

Gravely 018447

Seal 1.206 x 1.785 x .468
(Superseded to 05613200)

Note: (055,304)

$17.99

$

In Stock, only 4 left!

0

13

Gravely 018446

Bearing-Cone .750 x .61
(Superseded to 05404500)

Note: (055,304)

$29.99

$

In Stock, only 3 left!

0

14

Gravely 018445

Bearing-Cup 1.78 x .475
(Superseded to 05404400)

Note: (055,304)

$11.99

$

In Stock, Qty 20+

0

15

Gravely 046063

Tire 16 x 7.50-8
(Superseded to 07119600)

$221.99

$

Usually ships in 4-12 days

0

16

Gravely 048925

Weldment, Rim
(Superseded to 07119600)

Note: (055,304)

$221.99

$

Usually ships in 4-12 days

0

17

Gravely 018448

Spacer .752 x 1.000 x .500
(Superseded to 03495900)

Note: (055,304)

$16.99

$

In Stock, only 1 left!

0

18

Gravely 09079700

Dust Cap

Note: (055,304)

$

$

Not available

19

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095
(Superseded to 06401118)

Note: (055,304)

$2.99

$

In Stock, Qty 20+

0

20

Gravely 06535300

Nut-Locking-Center .625-11

Note: (055,304)

$2.99

$

Usually ships in 4-12 days

0

21

Gravely 048538

Tire/Wheel Assembly
(Superseded to 07119600)

Note: (Contains: One each of Items 9,12,13,15-18; Two each of Item 14)

$221.99

$

Usually ships in 4-12 days

0
