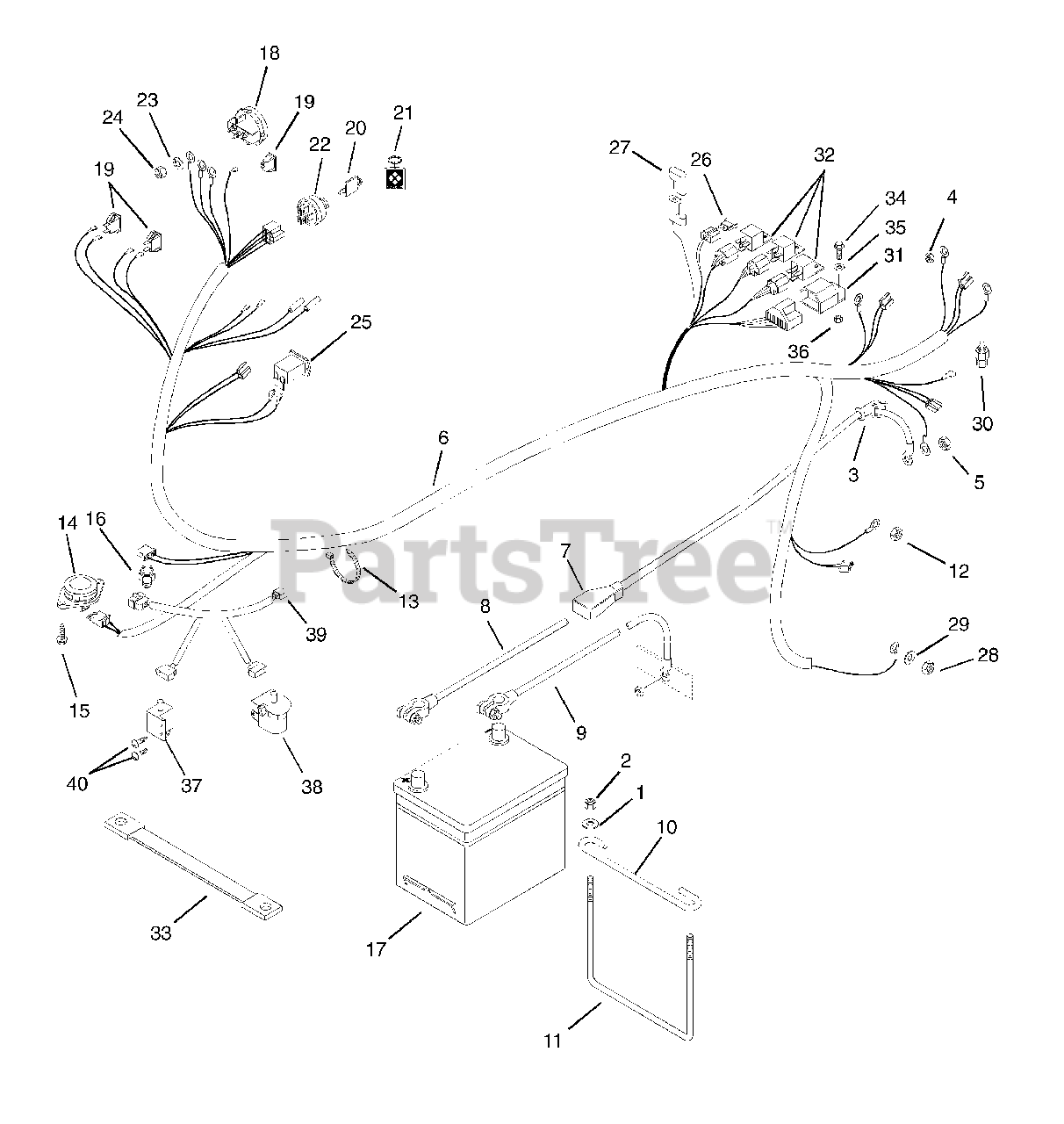

989306 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) Electrical System Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

Electrical System Parts Diagram

  • Title

1

Gravely 06412700

Washer-Flat Steel .281 x .625 x .065
(Superseded to 06437300)

$0.99

$

In Stock, Qty 14

0

2

Gravely 06531000

Nut-Locking-Nylon .25-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

3

Gravely 03384700

Boot, Insulator

$

$

Not available

4

Gravely 046364

Nut-Hex M5 x .8
(Superseded to 06522100)

$

$

Not available

5

Gravely 046363

Nut-Hex M8 x 1.25
(Superseded to 06538600)

$1.99

$

Usually ships in 4-12 days

0

6

Gravely 09093300

Wire Harness, Kubota

$

$

Not available

7

Gravely 034466

Cover, Battery Terminal
(Superseded to 07523100)

$

$

Not available

8

Gravely 045019

Cable, Positive Battery
(Superseded to 08961100)

$

$

Not available

9

Gravely 045018

Cable, Negative Battery
(Superseded to 08961000)

$

$

Not available

10

Gravely 051098

Rod, Hold Down
(Superseded to 09030300)

$

$

Not available

11

Gravely 050781

Rod, Battery
(Superseded to 09030200)

$252.99

$

Usually ships in 4-12 days

0

12

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

13

Gravely 041634

Tie Wrap, Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

14

Gravely 045036

Seat Switch
(Superseded to 03490500)

$15.99

$

Usually ships in 4-12 days

0

15

Gravely 07411900

Screw-Tapping 12-24 x .50 Hex Washer Head
(Superseded to 07400136)

$2.49

$

In Stock, Qty 12

0

16

Gravely 020916

Switch-Neutral Start
(Superseded to 02913100)

$45.99

$

In Stock, only 1 left!

0

17

Gravely 09044500

Battery, 24V

$

$

Not available

18

Gravely 09080200

Gauge, Temperature

$98.99

$

Usually ships in 4-12 days

0

19

Gravely 050673

Light, Indicator
(Superseded to 05128700)

$11.99

$

Usually ships in 4-12 days

0

20

Gravely 21510400

Ignition Switch Key

$9.99

$

Usually ships in 4-12 days

0

21

Gravely 03490000

Key Chain

$

$

Not available

22

Gravely 09056700

Switch, Ignition (Diesel)
(Superseded to 00168400)

Note: (Diesel)

$56.99

$

Usually ships in 4-12 days

0

23

Gravely 06308100

Washer-Lock #10 x .047 Regular

$1.49

$

Usually ships in 4-12 days

0

24

Gravely 453248

Nut-Hex 10-32

$

$

Not available

25

Gravely 038256

Hour Meter
(Superseded to 09497400)

$22.99

$

In Stock, only 2 left!

0

26

Fuse-30 Amp

Fuse-30 Amp

$

$

Not available

27

Gravely 03081700

Molded Diode Plug, 1 AMP

$26.99

$

Usually ships in 4-12 days

0

28

Gravely 06528800

Nut-Hex M6 x 1.00
(Superseded to 06500925)

$0.99

$

In Stock, only 2 left!

0

29

Gravely 050365

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 14

0

30

Gravely 09061200

Temperature Sender

$

$

Not available

31

Gravely 09044200

Module, Time Delay

$71.99

$

In Stock, only 1 left!

0

32

Gravely 040216

Relay
(Superseded to 00432101)

$20.99

$

In Stock, Qty 20+

0

33

Gravely 09047600

Ground Strap (Engine to Frame)

Note: (Engine to Frame)

$

$

Not available

34

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, only 1 left!

0

35

Gravely 06442700

Washer-Flat-Steel .219 x .50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

36

Gravely 06536000

Nut-Locking-Nylon 10-24 w/Insert
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

37

Gravely 03657100

Switch-Single N.O.

$9.49

$

In Stock, Qty 8

0

38

Gravely 02754100

Switch-Snap Mounting N.O.

Note: (Model 306)

$9.49

$

In Stock, Qty 20+

0

39

Gravely 09064300

Insert-PM-400 Kubota CE Certificate

Note: (Model 306)

$

$

Not available

40

Gravely 07411900

Screw-Tapping 12-24 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400136)

Note: (Model 306)

$2.49

$

In Stock, Qty 12

0
