989306 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) Transmission Assembly Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

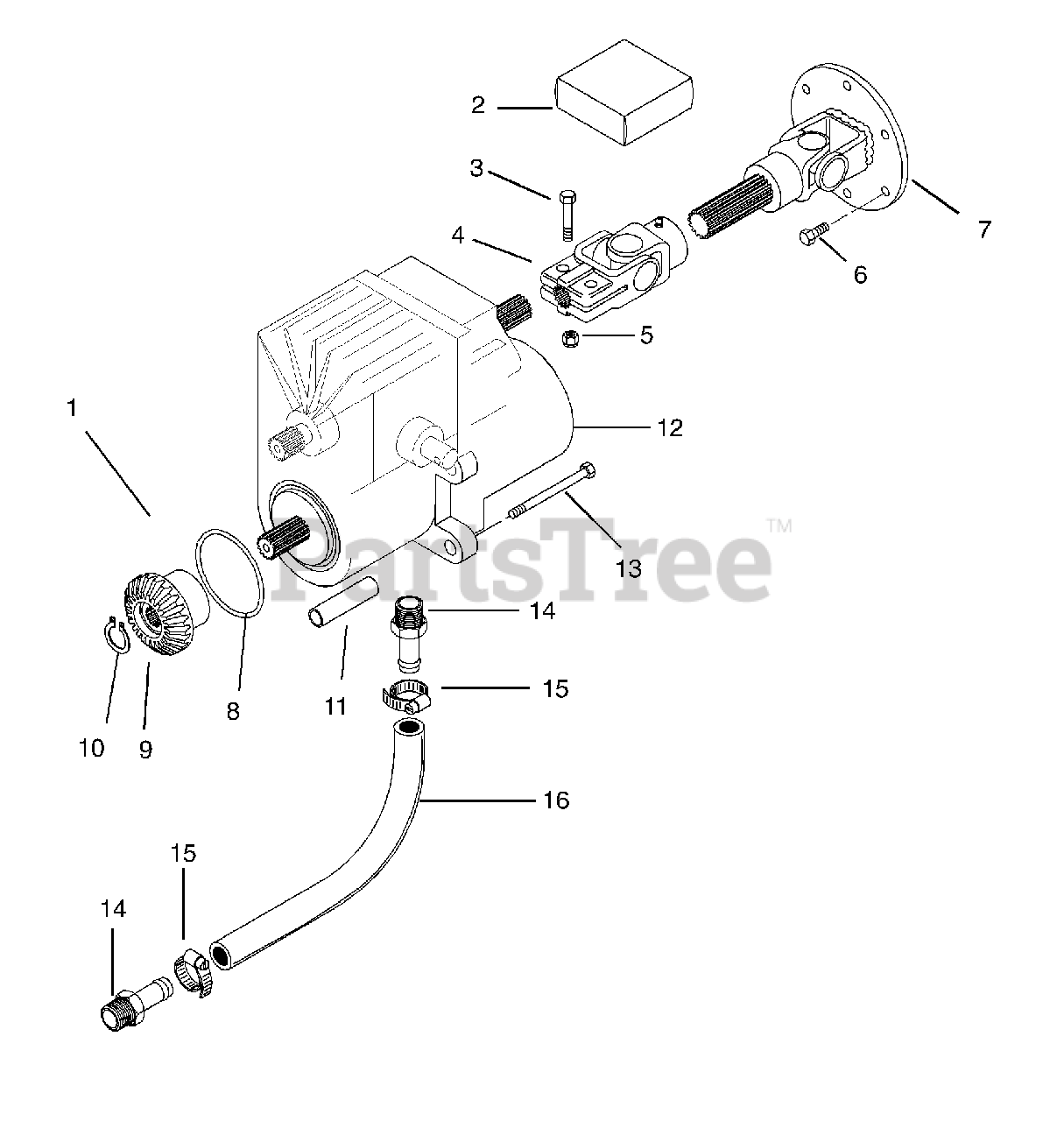

Transmission Assembly Parts Diagram

  • Title

1

Gravely 09080300

TRANSMISSION, HYDRAULIC

$

$

Not available

2

Gravely 53114500

REPAIR KIT

$

$

Not available

3

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 050602

ASM,U-JOINT
(Superseded to 09019000)

$

$

Not available

5

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 05960500

BLT-HEX M10 X 1.25X20 YWZC

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 09046300

ADAPTER, FLYWHEEL (KUBOTA)

$

$

Not available

8

Gravely 018346

O-RING 3.0X3.187X.093
(Superseded to 05614900)

$3.99

$

In Stock, Qty 7

0

9

Gravely 044568

GEAR
(Superseded to 09028600)

$

$

Not available

10

Gravely 015338

RG-RTNG-EXT .579X.035
(Superseded to 05711900)

$1.49

$

In Stock, Qty 15

0

11

Gravely 044472

SPACER .385X.625X2.69 ST
(Superseded to 08950300)

$

$

Not available

12

Gravely 039306

OIL FILTER
(Superseded to 03192800)

$28.99

$

In Stock, only 2 left!

0

13

Gravely 05965400

BLT-HEX .38-16X4.00 GR5 YWZC

$3.99

$

In Stock, only 1 left!

0

14

Gravely 045226

FTG-ADPTR 88-14
(Superseded to 07020300)

$6.99

$

Usually ships in 4-12 days

0

15

Gravely 021247

CLAMP,.88 DIA. HOSE
(Superseded to 06923500)

$2.49

$

In Stock, Qty 20+

0

16

Gravely 046379

HOSE .62 ID X .91 OD BLK
(Superseded to 00915100)

$3.99

$

Usually ships in 4-12 days

0
