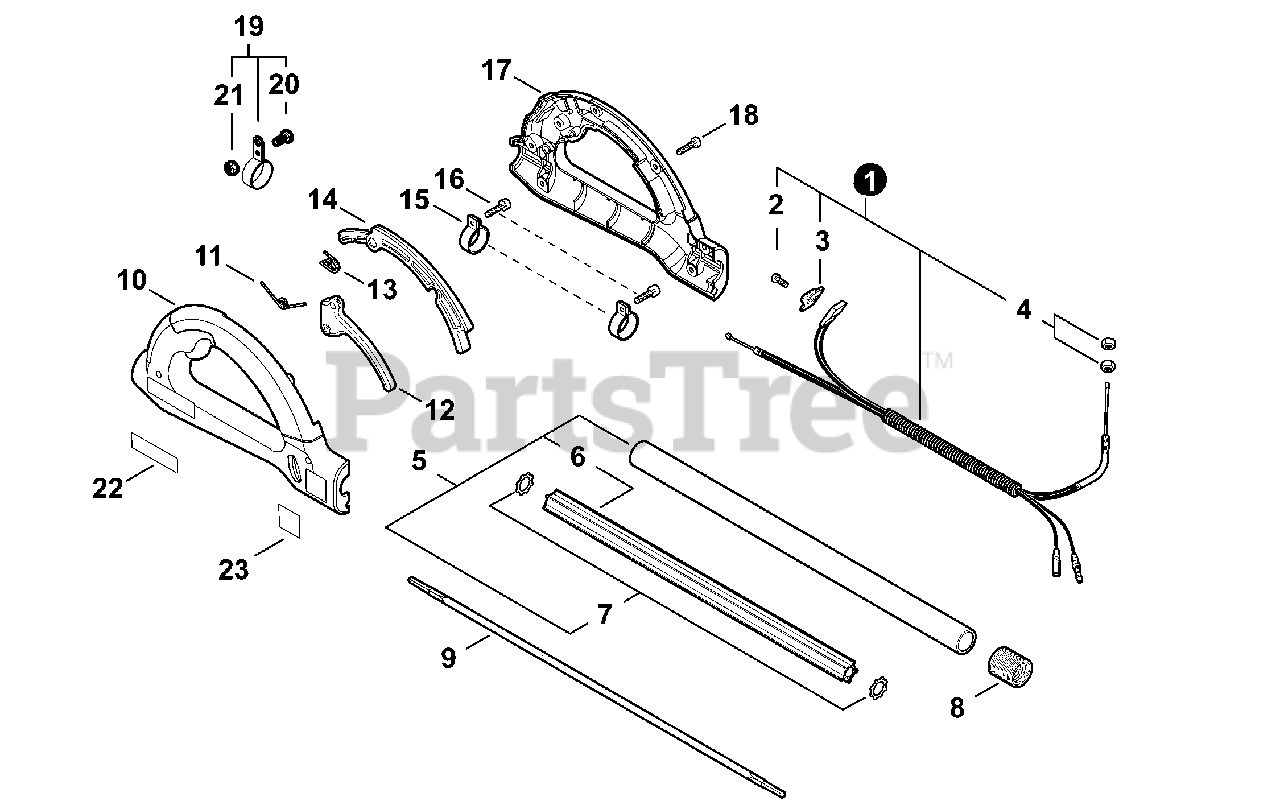

99000 (99922204513) - Echo Complete Shaft Assembly for PPT-280 Throttle Control Parts Diagram

Complete Shaft Assembly for PPT-280

Throttle Control Parts Diagram

  • Title

1

Echo P021046380

CABLE ASSY, CONTROL

Note: Inlcudes Items 2-4

$19.99

$

Usually ships in 2-4 days

0

2

Echo 9154503010

SCREW 3×10

$0.99

$

In Stock, Qty 20+

0

3

Echo A444000020

KNOB, SWITCH - ORANGE

$0.99

$

In Stock, Qty 20+

0

4

Echo 90050200006

NUT M6

$0.99

$

In Stock, only 3 left!

0

5

Echo C050002820

PIPE, MAIN

Note: Includes Items 6-7

$17.99

$

Usually ships in 2-4 days

0

6

Echo C507000160

LINER

$5.49

$

In Stock, only 2 left!

0

7

Echo V583000110

WASHER

$0.99

$

In Stock, Qty 19

0

8

Echo V475007630

TUBE, FLEXIBLE

$0.99

$

Usually ships in 2-4 days

0

9

Echo C506000100

DRIVESHAFT - FLEXIBLE

$47.99

$

In Stock, Qty 18

0

10

Echo C041000011

BODY, HANDLE - LEFT
(Superseded to C041000012)

$10.99

$

Usually ships in 2-4 days

0

11

Echo V452000330

SPRING, TORSION

$0.99

$

In Stock, Qty 6

0

12

Echo C450000260

TRIGGER, THROTTLE

$1.99

$

In Stock, Qty 16

0

13

Echo V452000340

SPRING, TORSION

$0.99

$

In Stock, only 3 left!

0

14

Echo C460000100

LOCKOUT, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

15

Echo V495003020

CLAMP

$1.49

$

In Stock, Qty 20+

0

16

Echo V805000150

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

17

Echo C041000001

BODY, HANDLE - RIGHT
(Superseded to C041000002)

$10.99

$

Usually ships in 2-4 days

0

18

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

19

Echo P021049240

HANGER KIT

Note: Includes Items 20-21

$3.99

$

In Stock, only 1 left!

0

20

Echo V805000130

BOLT, TORX 5×10

$0.99

$

In Stock, Qty 20+

0

21

Echo V263000080

NUT, M5×8 NYLON INSERT

$0.99

$

Usually ships in 2-4 days

0

22

Echo X502000610

LABEL, ECHO

$0.99

$

Usually ships in 2-4 days

0

23

Echo X505002362

LABEL, CAUTION

$1.99

$

Usually ships in 2-4 days

0
