990001 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) FRONT AND REAR WHEELS Parts Diagram

Pro-Master Zero-Turn Mower, 18hp Kohler

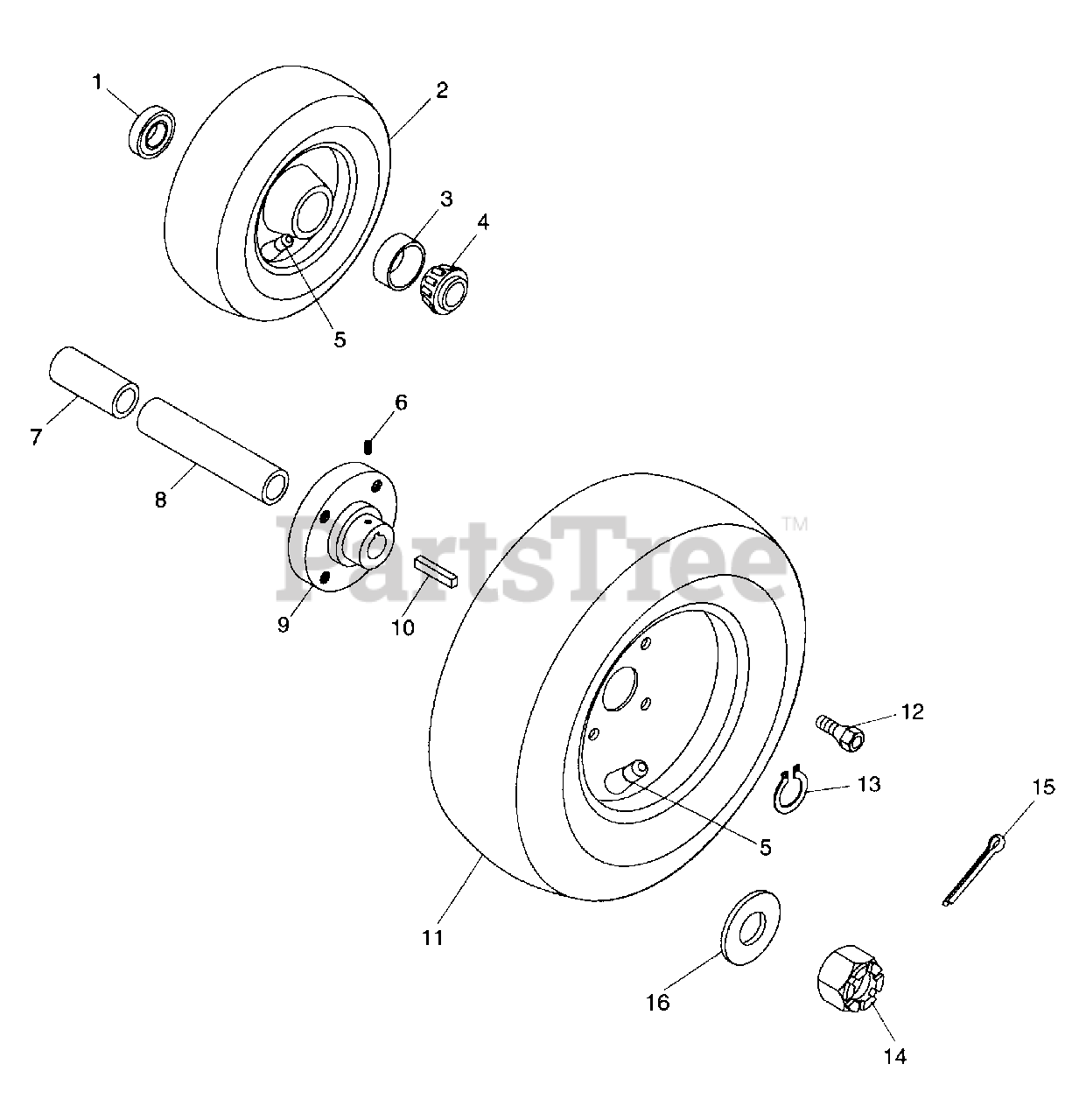

FRONT AND REAR WHEELS Parts Diagram

  • Title

1

Gravely 038920

SEAL
(Superseded to 20655500)

$12.99

$

Usually ships in 4-12 days

0

2

Gravely 053130

T/WHL ASSY 4.80-8
(Superseded to 07132200)

$

$

Not available

3

Gravely 038109

BRG-CUP1.980X.420
(Superseded to 05407000)

$18.99

$

In Stock, Qty 18

0

4

Gravely 038110

BRG-CONE 1.0X.58
(Superseded to 05406900)

$20.99

$

In Stock, Qty 20+

0

5

Gravely 011191

VALVE STEM ASS'Y
(Superseded to 07520000)

$2.99

$

In Stock, only 1 left!

0

6

Gravely 102569

SCR-SET .25-20X.25 SKHCUP OH
(Superseded to 06000500)

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 053387

SPACER 1.006X1.438X1.496
(Superseded to 08951900)

Note: (989001,002,012)

$

$

Not available

8

Gravely 047136

SPACER 1.006X1.438X2.117
(Superseded to 08913400)

Note: (989001,002,012)

$

$

Not available

9

Gravely 053386

SERVICE ASSY, 089466 HUB
(Superseded to 59000900)

Note: (989001,002,012)

$

$

Not available

Gravely 090366

SERVICE ASSY, 090366 HUB
(Superseded to 59001800)

Note: (990001,002)

$

$

Not available

10

Gravely 052032

KEY-SQ .248X1.75X.248
(Superseded to 06607700)

Note: (989001,002,012)

$3.49

$

Usually ships in 4-12 days

0

Gravely 066002

KEY-WDRF .25X1.00X.438 SAE15
(Superseded to 06600200)

Note: (990001,002)

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 046987

T/WHL ASSY 8.50-8 X 18
(Superseded to 07130200)

$188.99

$

Usually ships in 4-12 days

0

12

Gravely 034597

BLT-LUG .50-20X1.38 YWZC
(Superseded to 07000143)

$3.99

$

In Stock, Qty 20+

0

13

Gravely 017980

RG-RTNG-EXT 1.00X.078
(Superseded to 05707300)

Note: (989001,002,012)

$3.49

$

In Stock, Qty 9

0

14

Gravely 065283

NUT-HEX-SL .75-20
(Superseded to 06528300)

Note: (990001,002)

$

$

Not available

15

Gravely 120123

PIN-CTR .12X1.25 EXTPRSQCT YZ
(Superseded to 06700212)

Note: (990001,002)

$0.99

$

In Stock, Qty 18

0

16

Gravely 423315

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

Note: (990001,002)

$1.99

$

In Stock, Qty 20+

0
