990002 - Simplicity Gang Mower Mower Group (3549I01) Parts Diagram

Gang Mower

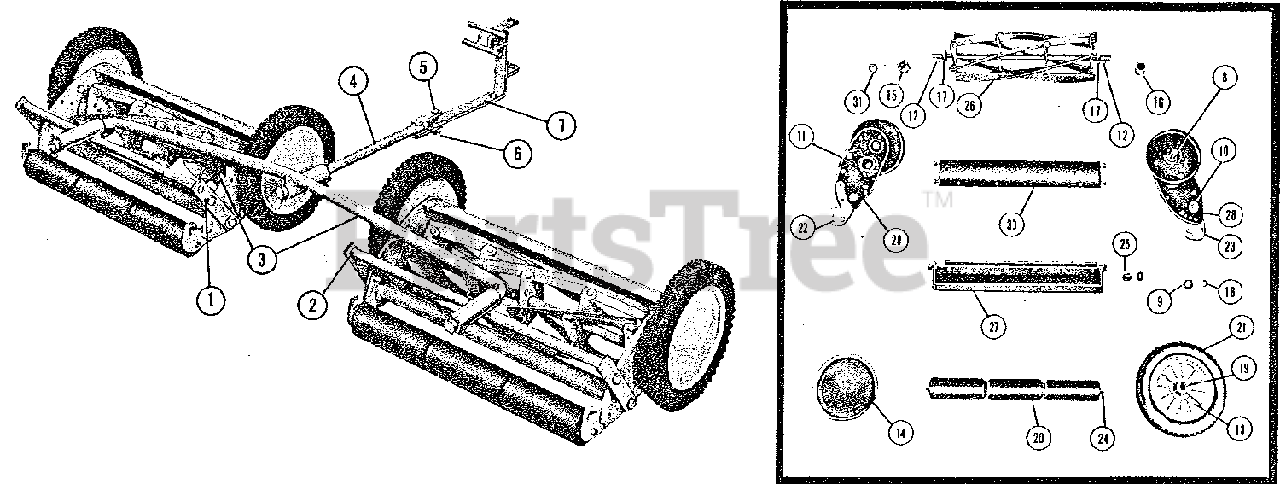

Mower Group (3549I01) Parts Diagram

  • Title

1

Simplicity 100014

SINGLE DRAW BAR ASSEMBLY, L.H. w/ 24" Mower, R.H. w/30" Mower

$

$

Not available

2

Simplicity 100015

SINGLE DRAW BAR ASSEMBLY, R.H. w/ 24" Mower, L.H. w/30" Mower

$

$

Not available

3

Simplicity 100017

DOUBLE DRAW BAR ASSEMBLY

$

$

Not available

4

Simplicity 100022

TONGUE ASSEMBLY

$27.99

$

Usually ships in 2-12 days

0

5

Simplicity 100028

TONGUE PIN

$18.99

$

Usually ships in 2-12 days

0

6

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

7

Simplicity 100033

FRAME EXTENSION ASSEMBLY
(Superseded to 100033R)

$20.99

$

Usually ships in 2-12 days

0

8

Simplicity 4105

AXLE, Wheel

$

$

Not available

9

Simplicity 4107

WASHER, Wheel Retaining

$29.99

$

Usually ships in 2-12 days

0

10

Simplicity 4114

CAM, Adjusting
(Superseded to 4194)

$29.99

$

Usually ships in 2-12 days

0

11

Simplicity 4123

BEARING, Housing

$26.99

$

Usually ships in 2-12 days

0

12

Simplicity 4134

DRIVING PAWL

$56.99

$

Usually ships in 2-12 days

0

13

Simplicity 201

WHEEL, Internal Gear

$

$

Not available

14

Simplicity LP-202

CAP, Hub

$

$

Not available

15

Simplicity LP-203

GEAR, Pinion, L.H.

$

$

Not available

16

Simplicity LP-204

GEAR, Pinion, R.H.

$

$

Not available

17

Simplicity 20257

BEARING, Reel

$13.99

$

Usually ships in 2-12 days

0

18

Simplicity 20320

RING, Retaining

$

$

Not available

19

Simplicity 20258

BEARING, Wheel

$2672.99

$

Usually ships in 2-12 days

0

20

Simplicity LP-220

ROLLER

$

$

Not available

21

Simplicity LP-269

TIRE

$

$

Not available

22

Simplicity LP-281

BRACKET, Roller Retainer (L.H.)

$

$

Not available

23

Simplicity LP-282

BRACKET, Roller Retainer (R.H.)

$

$

Not available

24

Simplicity LP-283

SHAFT, Roller

$

$

Not available

25

Simplicity LP-443

BUSHING, Hitch

$

$

Not available

26

Simplicity 10360

ASSEMBLY, Reel, 20"

$

$

Not available

27

Simplicity 10351

BAR ASSEMBLY, Cutter, 20"

$

$

Not available

28

Simplicity 10281

FRAME ASSEMBLY, R.H. Side

$

$

Not available

29

Simplicity 10287

FRAME ASSEMBLY, L.H. Side

$

$

Not available

30

Simplicity LP-472

BAR ASSEMBLY, Brush, 20"

$

$

Not available

31

Simplicity LP-264

PINION, Gear Insert

$

$

Not available
