990003 (PM 350) - Gravely Pro-Master Zero-Turn Mower, 21hp Kubota (SN: 000101 & Above) Electrical System Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Kubota

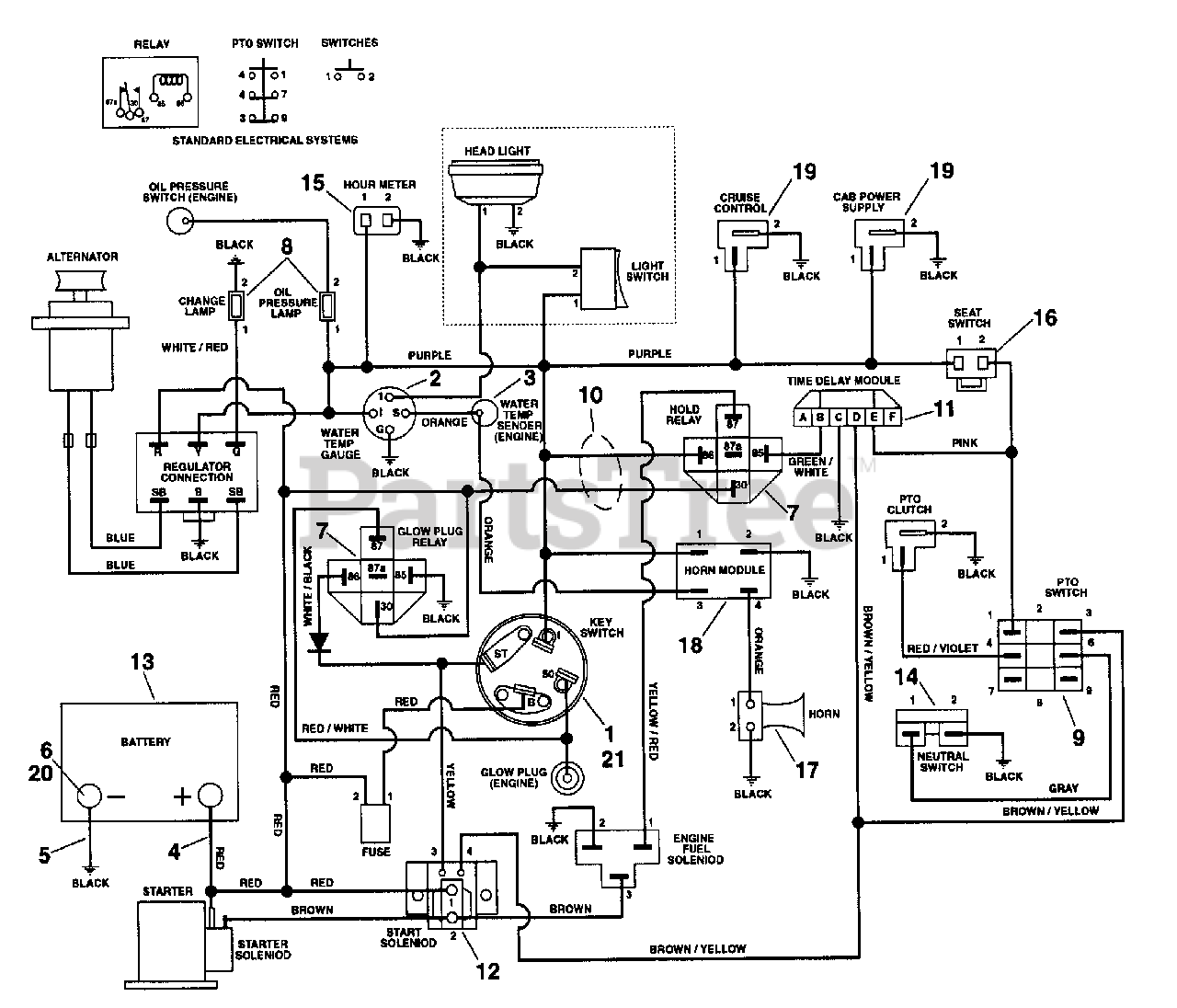

Electrical System Parts Diagram

  • Title

1

Gravely 09056700

SWITCH, IGNITION (DIESEL)
(Superseded to 00168400)

Note: (Diesel)

$60.99

$

In Stock, only 4 left!

0

2

Gravely 09043800

GAUGE, TEMPERATURE

$

$

Not available

3

Gravely 09043900

SENDER, TEMPERATURE

$

$

Not available

4

Gravely 09061900

CABLE, POSITIVE BATTERY

$

$

Not available

5

Gravely 09062000

CABLE, NEGATIVE BATTERY

$

$

Not available

6

Gravely 07523100

CVR,BATTERY TERMINAL

$

$

Not available

7

Gravely 03042800

RELAY
(Superseded to 00432101)

$27.99

$

In Stock, Qty 20+

0

8

Gravely 08841200

LIGHT,INDICATOR
(Superseded to 05128700)

$8.49

$

In Stock, Qty 7

0

9

Gravely 00522100

SWITCH, CLUTCH WITH RETAINER
(Superseded to 01545600)

$28.99

$

In Stock, Qty 20+

0

10

Gravely 09057600

WIRE HARNESS-KUBOTA

$

$

Not available

11

Gravely 09044200

MODULE,INTERLOCK,DELAY, 1801

$76.99

$

In Stock, only 2 left!

0

12

Gravely 03492300

SOLENOID
(Superseded to 03551000)

$45.99

$

In Stock, only 3 left!

0

13

Gravely 78506200

BATTERY, 12V 22F30GT

$

$

Not available

14

Gravely 02913100

SWITCH-NEUTRAL START N.O.

$48.99

$

In Stock, only 2 left!

0

15

Gravely 03492700

HOUR METER
(Superseded to 09497400)

$26.99

$

In Stock, Qty 20+

0

16

Gravely 03654200

SWITCH- SEAT

$15.99

$

In Stock, Qty 5

0

17

Gravely 09059000

HORN

$

$

Not available

18

Gravely 09059100

HIGH TEMP WARNING MODULE

$

$

Not available

19

Gravely 03657000

COVER - SWITCH
(Superseded to 00539300)

$10.99

$

Usually ships in 4-12 days

0

20

Gravely 03384700

BOOT, INSULATOR

$

$

Not available

21

Gravely 21510400

IGNITION KEY SET

$11.99

$

In Stock, only 1 left!

0
