990003 (PM 350) - Gravely Pro-Master Zero-Turn Mower, 21hp Kubota (SN: 000101 & Above) Electrical System Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Kubota

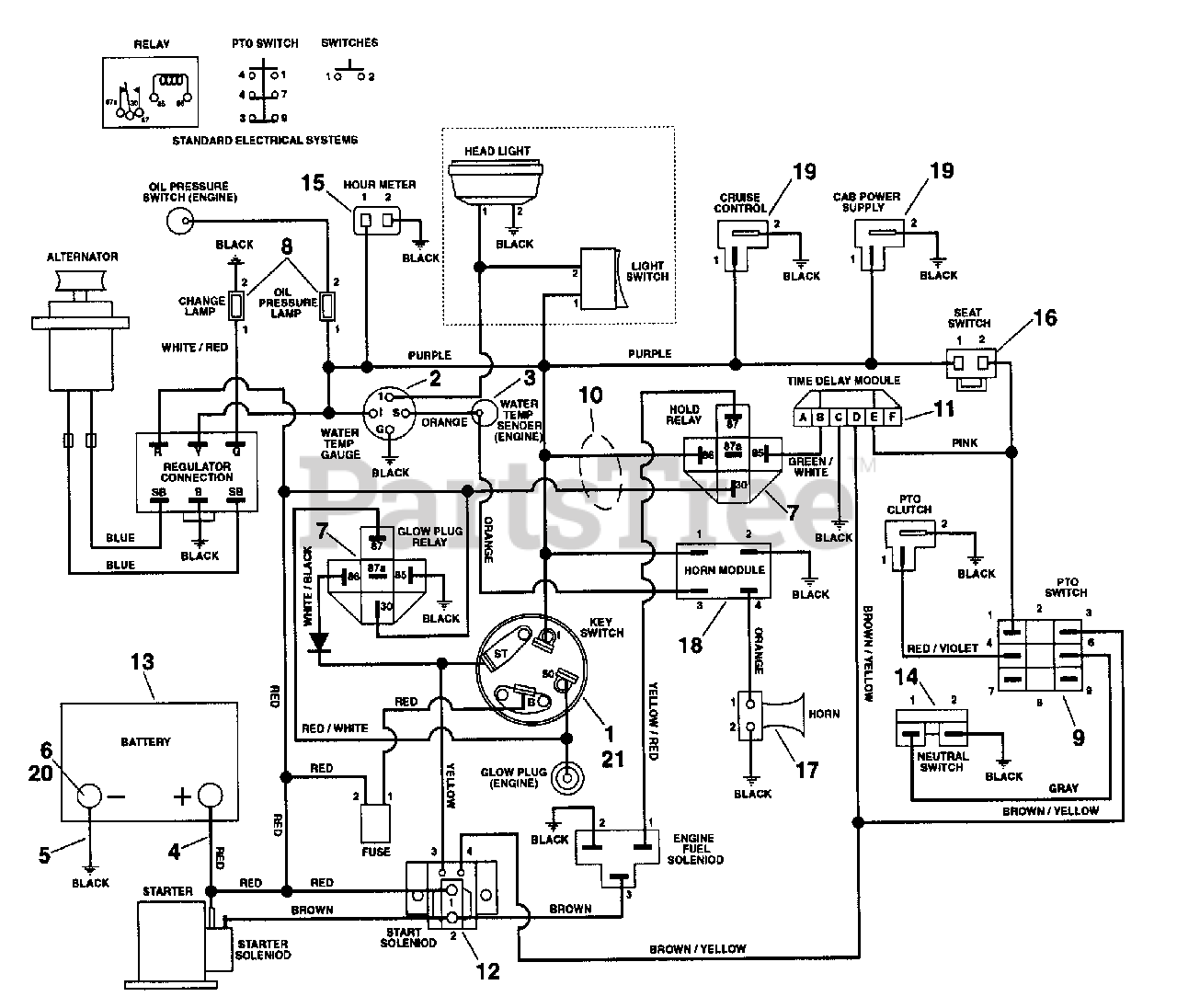

Electrical System Parts Diagram

  • Title

1

Gravely 09056700

Switch,Ignition(Diesel)
(Superseded to 00168400)

Note: (Diesel)

$56.99

$

Usually ships in 4-12 days

0

2

Gravely 09043800

Gauge,Temperature

$

$

Not available

3

Gravely 09043900

Sender,Temperature

$

$

Not available

4

Gravely 09061900

Cable,Positive Battery

$

$

Not available

5

Gravely 09062000

Cable,Negative Battery

$

$

Not available

6

Gravely 07523100

Cover,Battery Terminal

$

$

Not available

7

Gravely 03042800

Relay
(Superseded to 00432101)

$20.99

$

In Stock, Qty 16

0

8

Gravely 08841200

Light,Indicator
(Superseded to 05128700)

$11.99

$

Usually ships in 4-12 days

0

9

Gravely 00522100

Switch,Clutch with Retainer Ring
(Superseded to 01545600)

$23.99

$

In Stock, Qty 13

0

10

Gravely 09057600

Wire Harness - Kubota

$

$

Not available

11

Gravely 09044200

Module,Interlock, Delay 1801

$71.99

$

In Stock, only 1 left!

0

12

Gravely 03492300

Solenoid
(Superseded to 03551000)

$34.99

$

In Stock, Qty 5

0

13

Gravely 78506200

Battery,12 V

$

$

Not available

14

Gravely 02913100

Switch-Neutral Start N.O.

$45.99

$

In Stock, only 1 left!

0

15

Gravely 03492700

Hour, Meter
(Superseded to 09497400)

$22.99

$

In Stock, only 3 left!

0

16

Gravely 03654200

Switch-Seat

$13.99

$

In Stock, only 1 left!

0

17

Gravely 09059000

Horn

$

$

Not available

18

Gravely 09059100

High Temp. Warning Module

$

$

Not available

19

Gravely 03657000

Cover-Switch
(Superseded to 00539300)

$9.99

$

Usually ships in 4-12 days

0

20

Gravely 03384700

Boot,Insulator

$

$

Not available

21

Gravely 21510400

Ignition Key

$9.99

$

Usually ships in 4-12 days

0
