990003 (PM 350) - Gravely Pro-Master Zero-Turn Mower, 21hp Kubota (SN: 000101 & Above) Engine and Exhaust Kubota Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Kubota

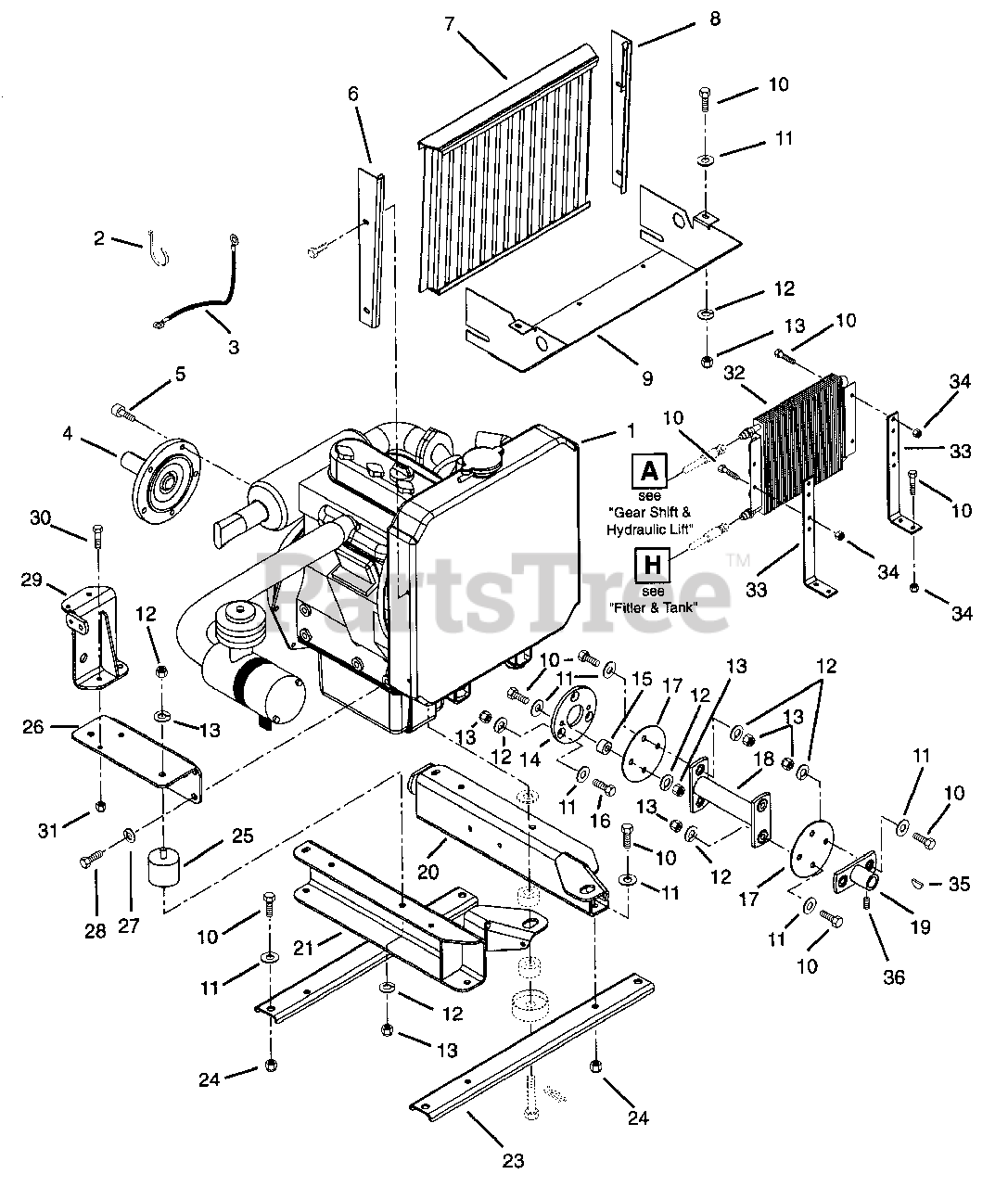

Engine and Exhaust Kubota Parts Diagram

  • Title

1

Gravely 00505500

ENGINE - 21HP KUBOTA DIESEL

$

$

Not available

2

Gravely 041634

TIE WRAP, BLACK LG 7.31
(Superseded to 07519900)

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 09047700

GROUND STRAP

$

$

Not available

4

Gravely 00551200

STUB SHAFT WELDMENT, CLUTCH

$

$

Not available

5

Gravely 05932500

SCR-SKH M8 X 1.25X20

$

$

Not available

6

Gravely 09060300

WLDMT, SCREEN SUPPORT, R.H.

$17.99

$

Usually ships in 4-12 days

0

7

Gravely 00520600

GRILLE, RADIATOR, PAINTED
(Superseded to 09422600)

$

$

Not available

8

Gravely 09060400

WLDMT, SCREEN SUPPORT, L.H.

$17.99

$

Usually ships in 4-12 days

0

9

Gravely 09061000

WLDMT,BOTTOM INTAKE SHIELD
(Superseded to 59001600)

$

$

Not available

10

Gravely 180122

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 120382

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 09050200

PLATE, ADAPTER

$

$

Not available

15

Gravely 00518000

SPACER .406X.88X.38

$10.99

$

Usually ships in 4-12 days

0

16

Gravely 00590700

BLT-HEX .38-16X1.00 HEX PN HD

$

$

Not available

17

Gravely 00517800

FLEX COUPLING DISC

$

$

Not available

18

Gravely 09050300

WLDMT, TRANS DRIVE SHAFT

$

$

Not available

19

Gravely 09050000

WLDMT, TRANS COUPLING

$

$

Not available

20

Gravely 00519000

WELD'T, LOWER LH ENGINE MOUNT

$

$

Not available

21

Gravely 00518700

WELD'T, LOWER RH ENGINE MOUNT

$

$

Not available

22

Gravely 09049600

BRACKET, ENGINE MOUNT

$

$

Not available

23

Gravely 09050400

BRACKET, ENGINE MOUNT

$

$

Not available

24

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

25

Gravely 00518600

VIBRATION ISOLATOR, KUBOTA

$

$

Not available

26

Gravely 00518500

WELD'T, UPPER RH ENGINE MOUNT

$

$

Not available

27

Gravely 06304600

WSHR-LK M 10MM YZ

$2.49

$

Usually ships in 4-12 days

0

28

Gravely 00598700

SCREW, HEX HEAD 10MM-1.25X20
(Superseded to 05960500)

$3.99

$

Usually ships in 4-12 days

0

29

Gravely 00518800

WELD'T, DIESEL FUEL FILTER MTG
(Superseded to 00578200)

$

$

Not available

30

Gravely 180079

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 413447

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 053101

COOLER,OIL
(Superseded to 08856200)

$

$

Not available

33

Gravely 09062300

BRKT, OIL COOLER MOUNT (KAW)

$5.99

$

Usually ships in 4-12 days

0

34

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

35

Gravely 06601500

KEY-WDRF .125X.625X.250 SAE5

$2.99

$

In Stock, only 2 left!

0

36

Gravely 036357

SCR-SET .31-18X.38 SKHCUPDL
(Superseded to 06005500)

$3.49

$

In Stock, only 2 left!

0
