990003 (PM 350) - Gravely Pro-Master Zero-Turn Mower, 21hp Kubota (SN: 000101 & Above) Hood Assembly Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Kubota

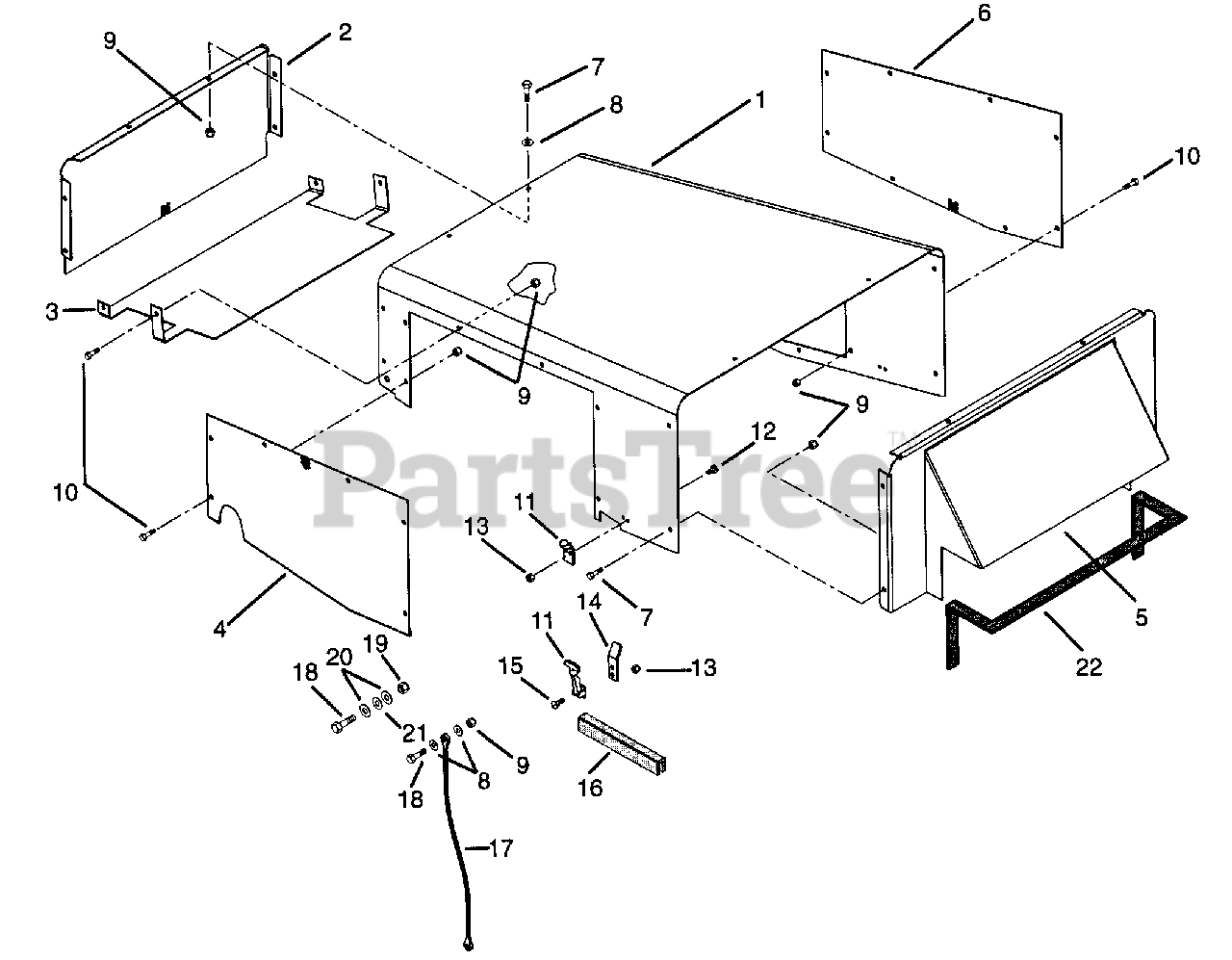

Hood Assembly Parts Diagram

  • Title

1

Gravely 09059700

Hood, PM-350

$91.99

$

Usually ships in 4-12 days

0

2

Gravely 09052700

Screen,Hood

$22.99

$

Usually ships in 4-12 days

0

3

Gravely 09061300

Shield,Exhaust Cover

$13.99

$

Usually ships in 4-12 days

0

4

Gravely 09060000

Screen,Kawasaki Right Hand

$22.99

$

Usually ships in 4-12 days

0

Gravely 09059900

Screen, KubotaRight Hand

$

$

Not available

5

Gravely 09059500

Weldment,Hood Intake Shield

$34.99

$

Usually ships in 4-12 days

0

Gravely 09059800

Screen, LeftHand Hood

$22.99

$

Usually ships in 4-12 days

0

7

Gravely 180018

Bolt-Hex .25-20 x .63
(Superseded to 05932000)

$2.49

$

In Stock, only 1 left!

0

8

Gravely 120392

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

9

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

10

Gravely 160541

Screw-Machine .25-20
(Superseded to 06113500)

$2.99

$

In Stock, only 3 left!

0

11

Gravely 045554

Latch
(Superseded to 08969700)

$

$

Not available

12

Gravely 159920

Screw-Machine 10-24 x .50
(Superseded to 06113000)

$2.49

$

In Stock, Qty 5

0

13

Gravely 190254

Nut-Locking 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 046295

Plate,Guide
(Superseded to 08977300)

$

$

Not available

15

Gravely 159947

Screw-Machine 10-24 x .750
(Superseded to 06111200)

$2.99

$

Usually ships in 4-12 days

0

16

Gravely 049767

Strip,Cowl
(Superseded to 00918200)

$6.49

$

Usually ships in 4-12 days

0

17

Gravely 044486

Cable,Hood Plated
(Superseded to 06927100)

$15.99

$

In Stock, only 2 left!

0

18

Gravely 180121

Bolt-Hex .380-16 x .875
(Superseded to 05932600)

$2.99

$

In Stock, only 1 left!

0

19

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

20

Gravely 06429300

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 020775

Washer-Flat-Nylon .375 x .75 x .060
(Superseded to 06433600)

$0.99

$

In Stock, Qty 9

0

22

Gravely 00929000

Seal,Trim-Lok Bulk

$1.49

$

Usually ships in 4-12 days

0
