990003 (PM 350) - Gravely Pro-Master Zero-Turn Mower, 21hp Kubota (SN: 000101 & Above) Hood Assembly Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Kubota

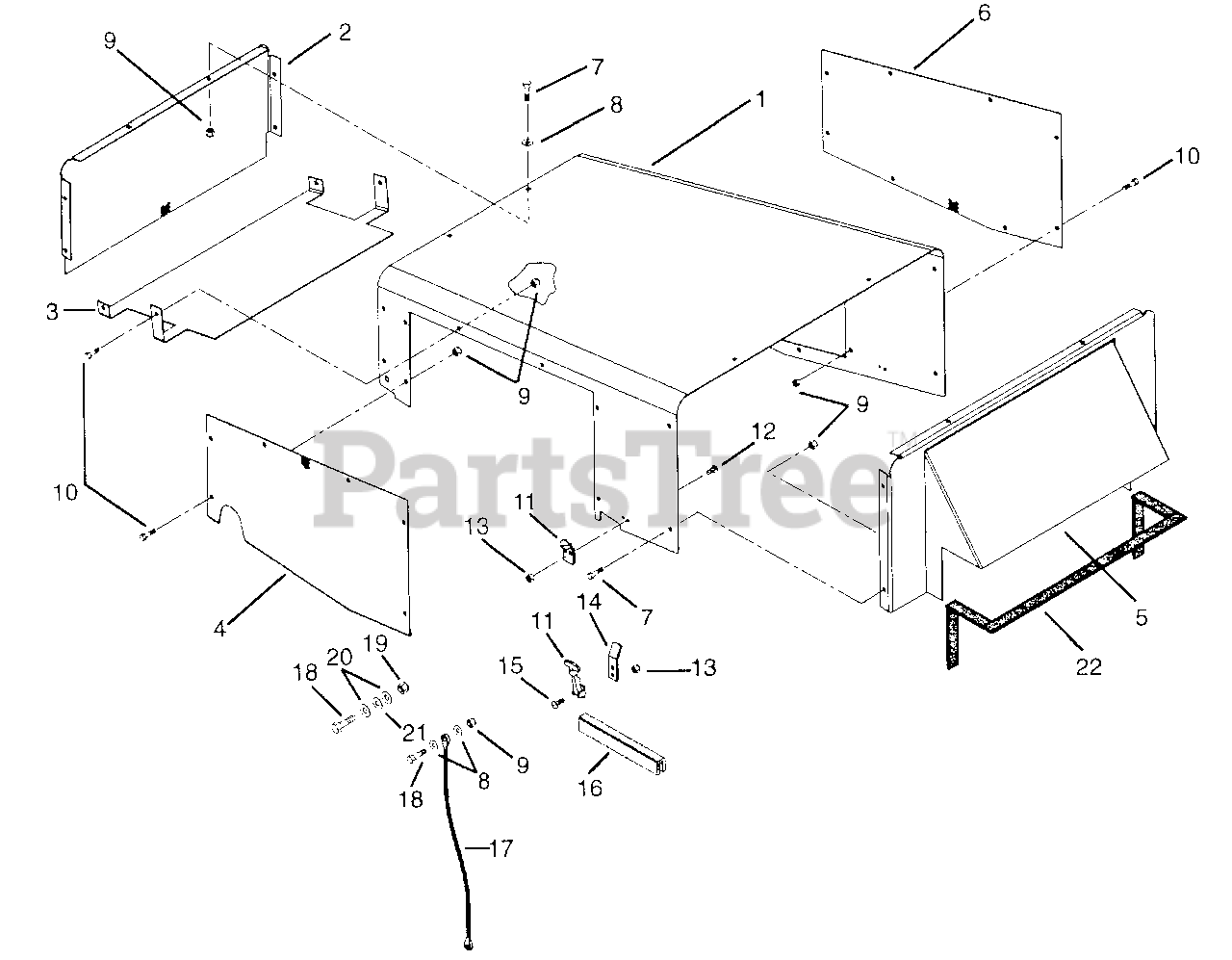

Hood Assembly Parts Diagram

  • Title

1

Gravely 09059700

HOOD, PM-350

$91.99

$

Usually ships in 4-12 days

0

2

Gravely 09052700

SCREEN, HOOD

$22.99

$

Usually ships in 4-12 days

0

3

Gravely 09061300

SHIELD, EXHAUST COVER

$13.99

$

Usually ships in 4-12 days

0

4

Gravely 09060000

SCREEN, KAWASAKI R.H.

$22.99

$

Usually ships in 4-12 days

0

Gravely 09059900

SCREEN, KUBOTA R.H.

$

$

Not available

5

Gravely 09059500

WLDMT, HOOD INTAKE SHIELD

$34.99

$

Usually ships in 4-12 days

0

Gravely 09059800

SCREEN, L.H. HOOD

$22.99

$

Usually ships in 4-12 days

0

7

Gravely 180018

BLT-HEX .25-20X.63
(Superseded to 05932000)

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

10

Gravely 160541

SCR-MCH .25-20 PAN HD
(Superseded to 06113500)

$2.99

$

Usually ships in 4-12 days

0

11

Gravely 045554

LATCH
(Superseded to 08969700)

$

$

Not available

12

Gravely 159920

SCR-MCH 10-24X.50 PHD
(Superseded to 06113000)

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 190254

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 046295

PLT,GUIDE
(Superseded to 08977300)

$

$

Not available

15

Gravely 159947

SCR-MCH 10-24X.75 PHD
(Superseded to 06111200)

$2.99

$

Usually ships in 4-12 days

0

16

Gravely 049767

STRIP, COWL
(Superseded to 00918200)

$6.49

$

Usually ships in 4-12 days

0

17

Gravely 044486

CBL,HOOD
(Superseded to 06927100)

$15.99

$

In Stock, only 1 left!

0

18

Gravely 180121

BLT-HEX .38-16X.875 GR5 YWZC
(Superseded to 05932600)

$2.99

$

Usually ships in 4-12 days

0

19

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

20

Gravely 06429300

WSHR-FL-STL .406X.812X.065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 020775

WSHR-FL-NY .375X.75X.060
(Superseded to 06433600)

$0.99

$

In Stock, only 4 left!

0

22

Gravely 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

$1.49

$

In Stock, Qty 6

0
