990003 (PM 350) - Gravely Pro-Master Zero-Turn Mower, 21hp Kubota (SN: 000101 & Above) Rear Axle Assembly Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Kubota

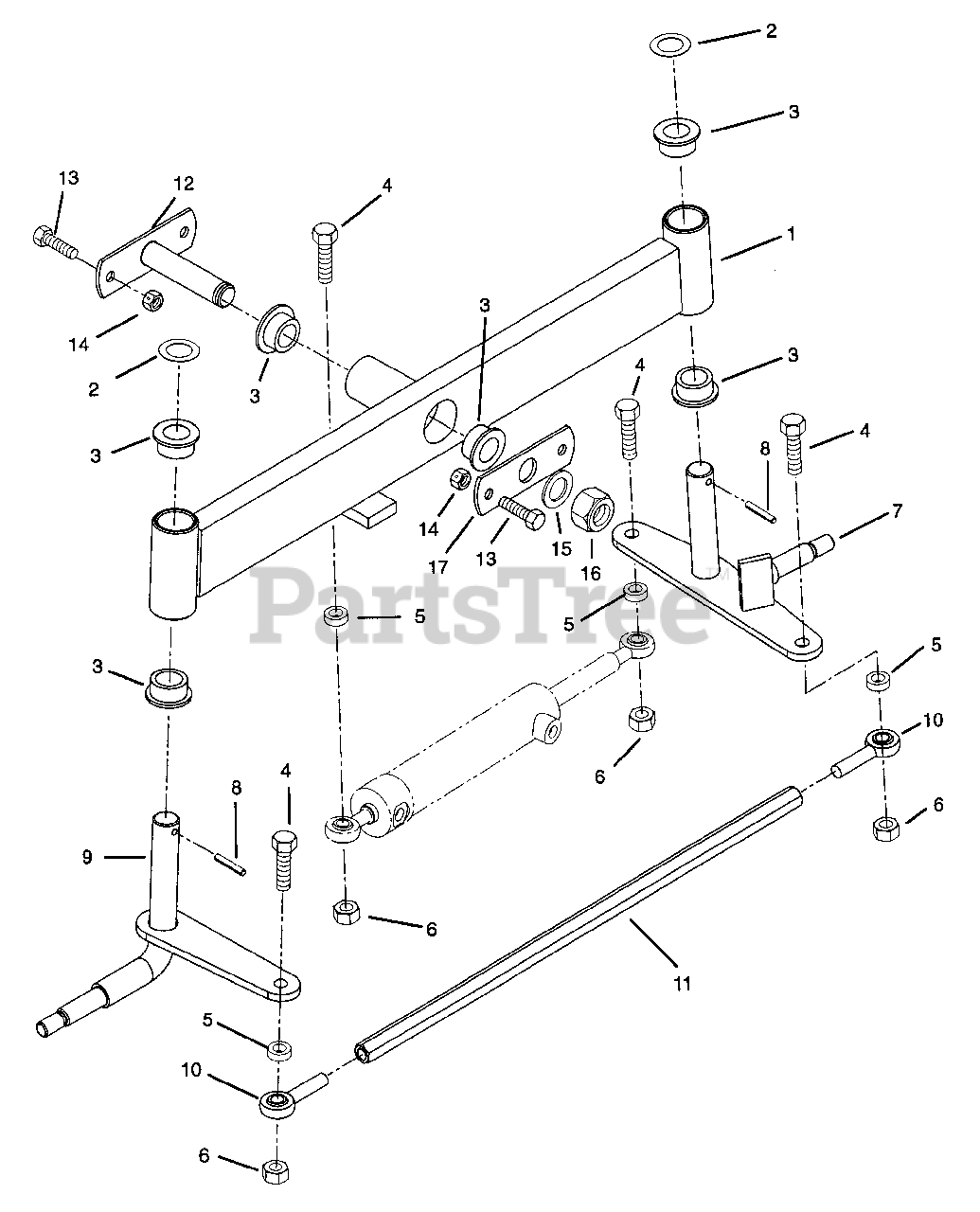

Rear Axle Assembly Parts Diagram

  • Title

$

$

Not available

1

Gravely 09049300

Weldment,PM-350 Steering Axle

$91.99

$

Usually ships in 4-12 days

0

2

Gravely 019340

Washer-Hardened-Thrust 1.002 x 1.552 x .030
(Superseded to 06435300)

$4.99

$

In Stock, Qty 5

0

3

Gravely 018355

Bushing-Flange 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$10.99

$

In Stock, Qty 20+

0

4

Gravely 180181

Bolt-Hex .50-13 x 2.00 Grade 5
(Superseded to 05901929)

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 031368

Spacer .516 x .875 x .300
(Superseded to 09036100)

$16.99

$

Usually ships in 4-12 days

0

6

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 052913

Weldment,King Pin Left Hand
(Superseded to 09006300)

$39.99

$

Usually ships in 4-12 days

0

8

Gravely 05800400

Pin-Roll .250 x 1.50

$

$

Not available

9

Gravely 052914

Weldment,King Pin Right Hand
(Superseded to 09006400)

$

$

Not available

10

Gravely 044950

Assembly,Rod End
(Superseded to 08959600)

$38.99

$

Usually ships in 4-12 days

0

11

Gravely 09049500

Rod,Tie

$

$

Not available

12

Gravely 09066700

Weldent, Steering Axle Pin

$

$

Not available

13

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

15

6418500

Washer-Flat-Steel 1.015 x 1.500 x .125

$

$

Not available

16

Gravely 06521300

Nut-Lock 1.0-14
(Superseded to 00181818)

$9.49

$

In Stock, only 1 left!

0

17

Gravely 09066800

Plate

$

$

Not available
