990003 (PM 350) - Gravely Pro-Master Zero-Turn Mower, 21hp Kubota (SN: 000101 & Above) Seat and Deck Assembly Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Kubota

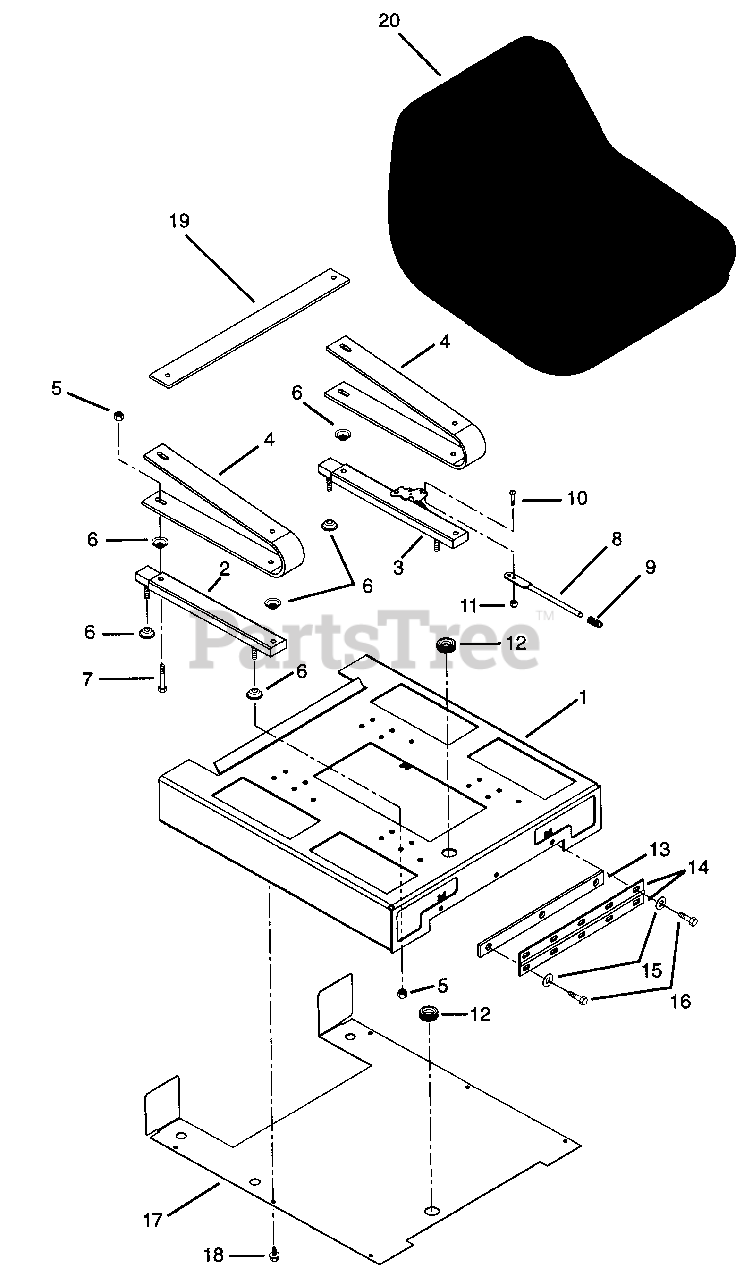

Seat and Deck Assembly Parts Diagram

  • Title

1

Gravely 09060200

WLDMT, SEAT SUPPORT

$159.99

$

Usually ships in 4-12 days

0

2

Gravely 035642

SEAT SLIDES -(RAME TAK-3010-4)
(Superseded to 03600800)

$

$

Not available

3

Gravely 035641

SEAT SLIDES -(RAME TAK-3010-4)
(Superseded to 03600800)

$

$

Not available

4

Gravely 03486800

SPRING, SEAT

$

$

Not available

5

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

6

Gravely 035670

SEAT SLIDE SPACER
(Superseded to 03418300)

$4.49

$

Usually ships in 4-12 days

0

7

Gravely 180082

BLT-HEX .31-18X1.38
(Superseded to 05934500)

$

$

Not available

8

Gravely 039063

SEAT SLIDE HANDLE
(Superseded to 03416500)

$

$

Not available

9

Gravely 043192

TIP - BRAKE LOCK LEVER
(Superseded to 07503800)

$1.99

$

In Stock, only 2 left!

0

10

Gravely 159929

SCR-MCH 10-24X.62 P/HD
(Superseded to 06111100)

$1.49

$

In Stock, Qty 10

0

11

Gravely 190254

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 045290

GRMT .75X1.06X1.38
(Superseded to 07530600)

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 044570

PLT, CLAMPING YWZC
(Superseded to 01539100)

$

$

Not available

14

Gravely 039090

HINGE-2" X 12.88 YWZC
(Superseded to 03102800)

$

$

Not available

15

Gravely 120393

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 180077

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 09060100

SHIELD, SEAT LID

$20.99

$

Usually ships in 4-12 days

0

18

Gravely 036485

GROMMET, .31 ID
(Superseded to 07502600)

$

$

Not available

19

Gravely 09004000

BRKT,SEAT
(Superseded to 09004051)

$

$

Not available

20

Gravely 09112400

SEAT, V-560 HIGH BACK

$

$

Not available
