990004 (PM 350) - Gravely Pro-Master Zero-Turn Mower, 20hp Kawasaki (SN: 000101 & Above) Clutch Assembly Parts Diagram

Pro-Master Zero-Turn Mower, 20hp Kawasaki

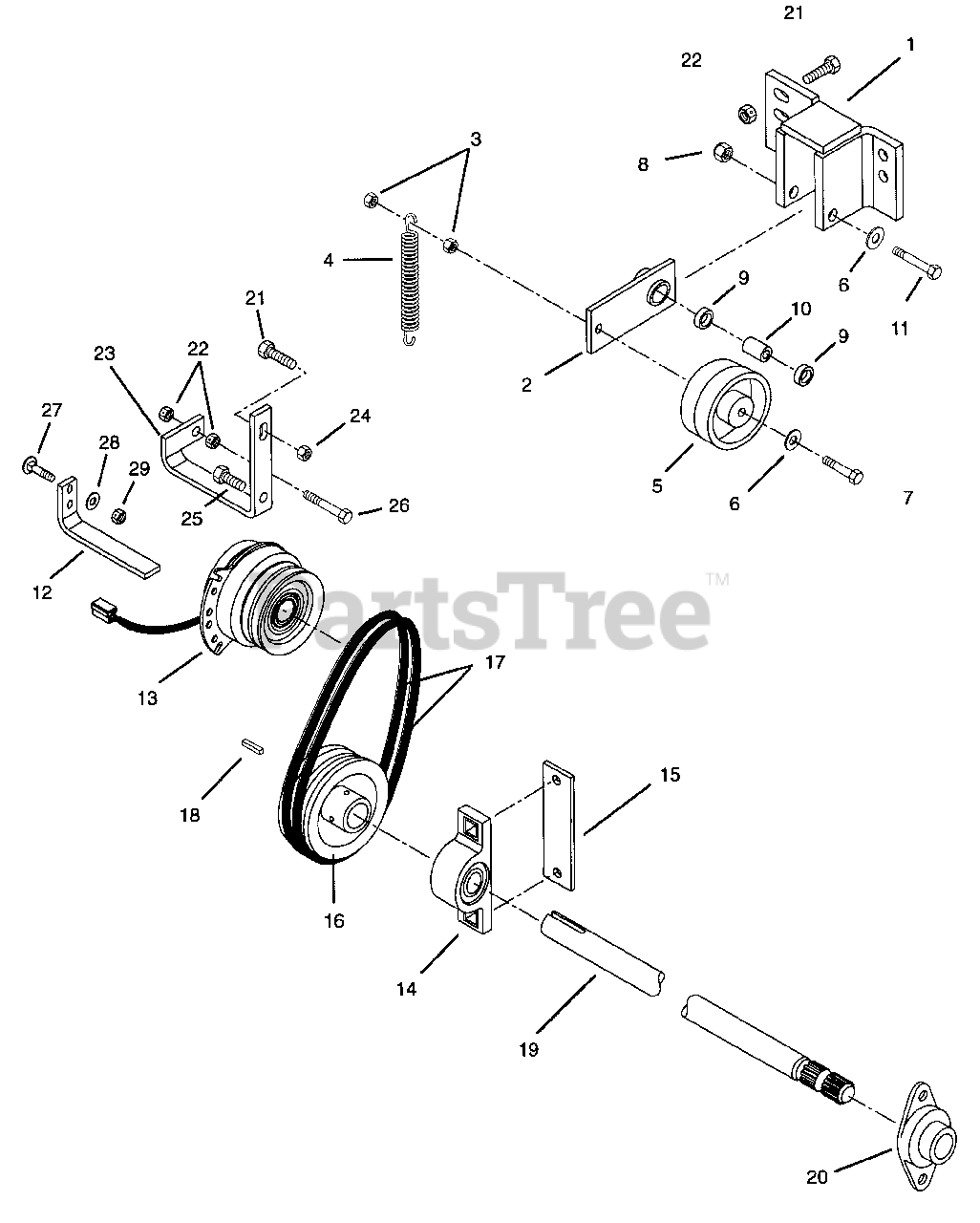

Clutch Assembly Parts Diagram

  • Title

1

Gravely 09063100

BRACKET, IDLER PIVOT MOUNT
(Superseded to 59001200)

$

$

Not available

2

Gravely 09050900

WLDMT, PTO IDLER ARM

$138.99

$

Usually ships in 4-12 days

0

3

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 08329200

SG-TENS .091X.56X5.07 WLD 30

$21.99

$

Usually ships in 4-12 days

0

5

Gravely 039173

IDLER-FLAT 3.25 X .38 NWHAMSHR
(Superseded to 07308800)

$40.99

$

In Stock, only 2 left!

0

6

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 180122

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

9

Gravely 00520100

BSHG, SPCR .752X.877X.50 BRZ

$

$

Not available

10

Gravely 00520000

SPACER .406X.75X1.5

$22.99

$

Usually ships in 4-12 days

0

11

Gravely 180128

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 09065100

PTO CLUTCH STOP

$

$

Not available

13

Gravely 09049000

ELECTRIC CLUTCH

$

$

Not available

14

Gravely 00511900

PILLOW BLOCK, 65 DEG. FITT.

$85.99

$

Usually ships in 4-12 days

0

15

Gravely 09050700

PLATE, BEARING MOUNT

$

$

Not available

16

Gravely 00512300

SHEAVE, 2 GROOVE
(Superseded to 09419000)

$

$

Not available

17

Gravely 039179

V-BELT, 4L-WRAPPED (SET)
(Superseded to 07211100)

Note: (2) 4L-Section 34.12 x 17/32

$43.99

$

In Stock, only 3 left!

0

18

Gravely 00512500

KEY, GIB .25 X 1.5

$

$

Not available

19

Gravely 09049400

SHAFT, PM-350 PTO OUTPUT

$

$

Not available

20

Gravely 05431200

BRG-FLG 1.00 I.D.

$

$

Not available

21

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 09065100

PTO CLUTCH STOP

Note: (003)

$

$

Not available

24

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

25

Gravely 046360

BLT-HEX M8 X 1.25X16 YWZC
(Superseded to 05956300)

$

$

Not available

26

Gravely 05952600

BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 06219800

BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

28

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0
